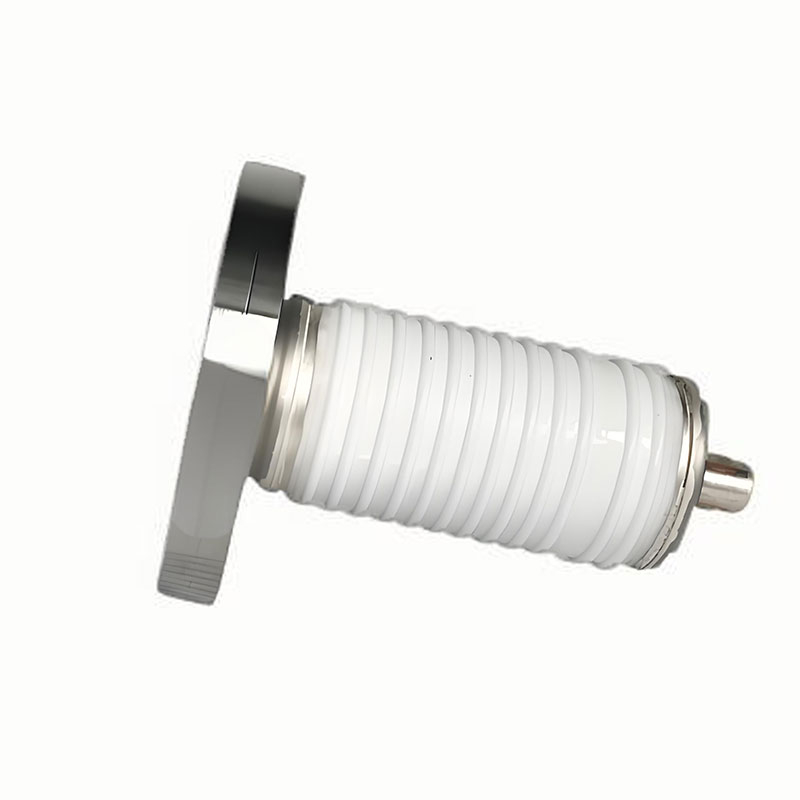

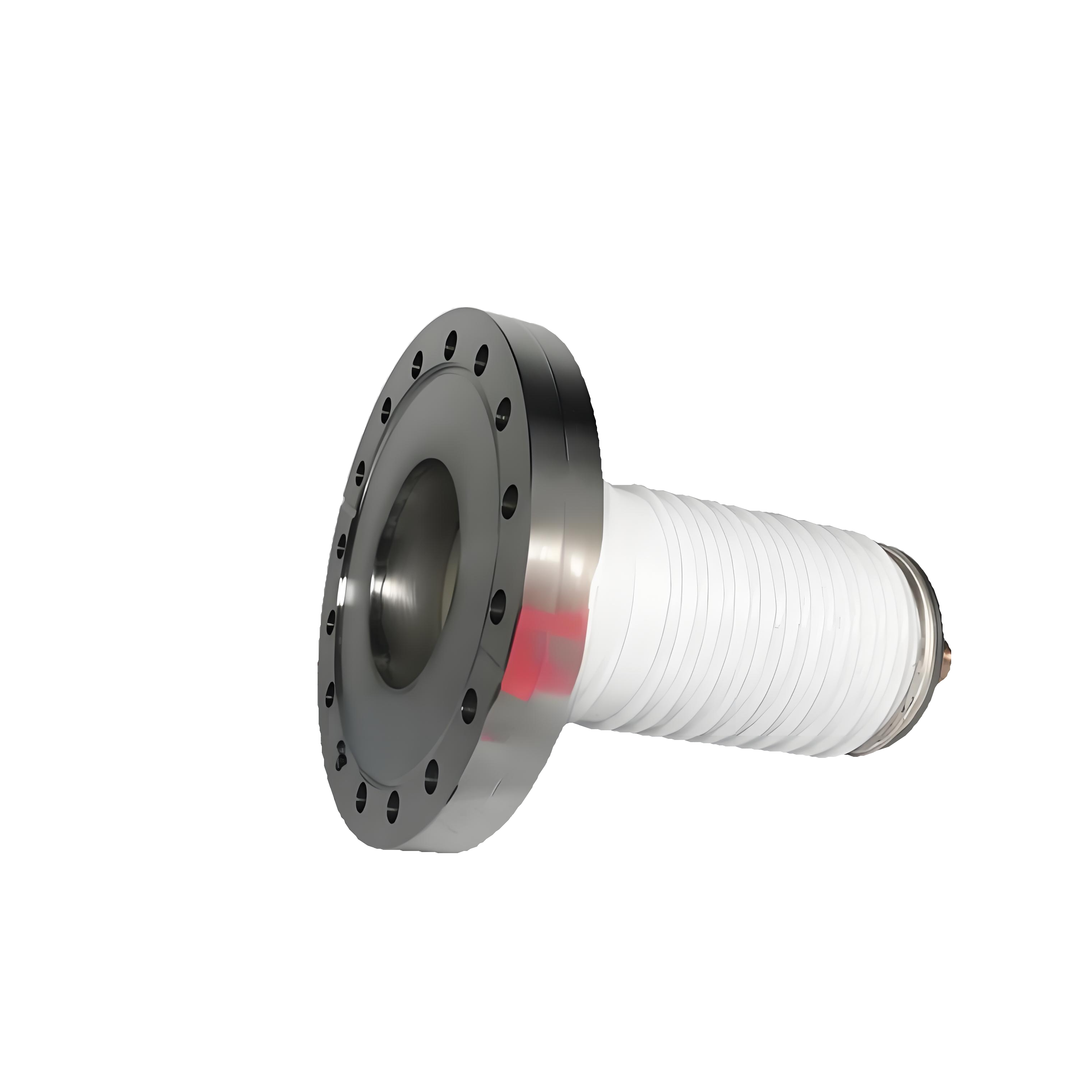

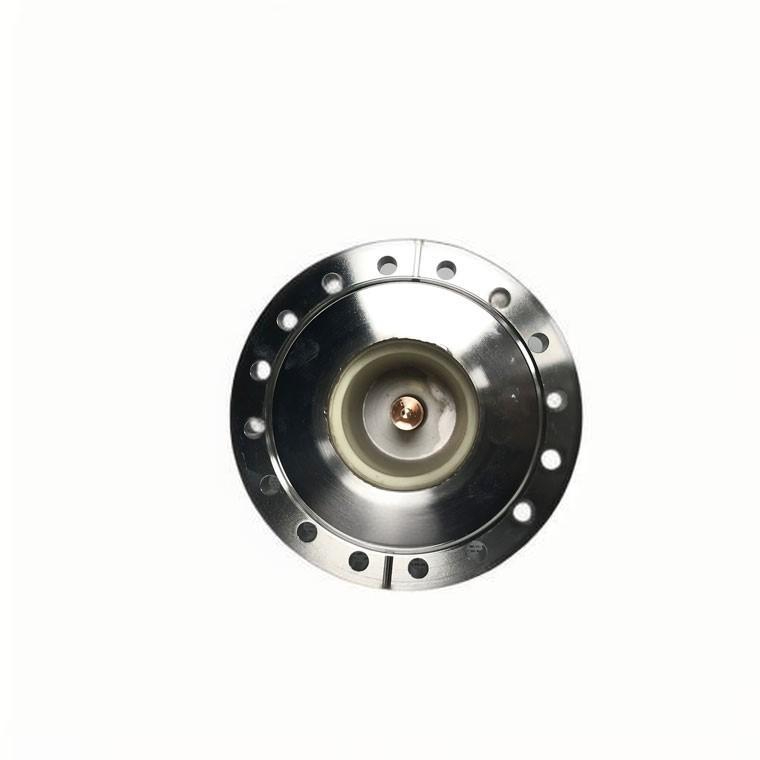

Vacuum flange electrode for electron beam evaporation

Applied to vacuum coating, electron beam evaporation, magnetron sputtering and other process systems
Flange material :SUS304
Temperature resistance parameter
CF:-270℃-450℃
KF:-20℃-200℃
Vacuum environment
CF:≥10-10 mbar
KF:≥10-8 mbar
A variety of flange, voltage, current program specifications to choose from, more needs to contact sales representatives
Can provide 2D, 3D format file
