Temperature measuring flange

Temperature measuring flange
Technology used
Pt100, RTD
Installation type
Francois
Degree of protection
ATEX, intrinsically safe, IP68
Apply
For liquids, for gases, for pipes, tanks
Other characteristics
4-wire type, 2-wire type, 4-wire type, thermocouple sleeve with extension tube
temperature
Minimum: -40 °C
(-40 °F)
Maximum: 600 °C
(1,112 °F)
Resistance (RTD) temperature components for standard applications

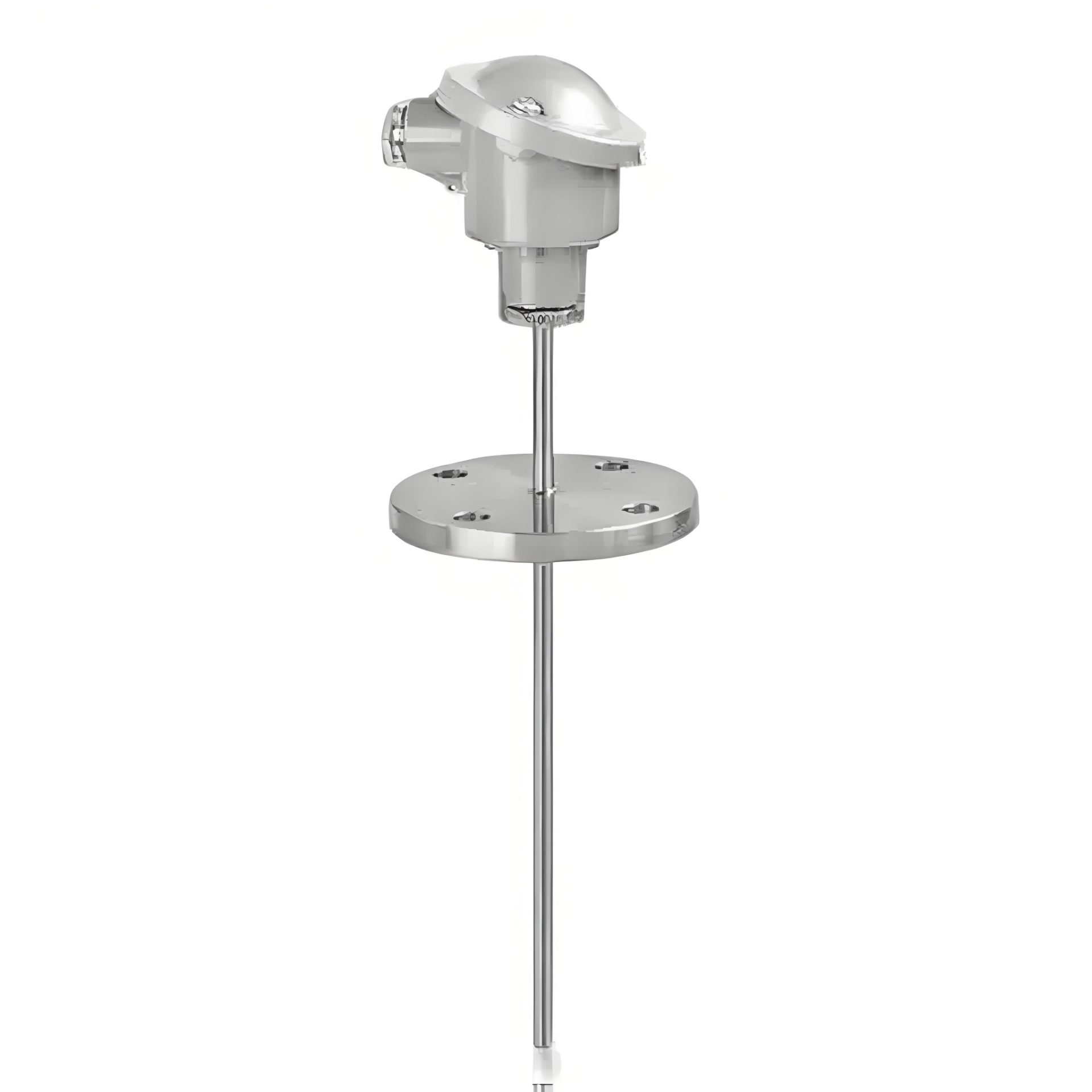

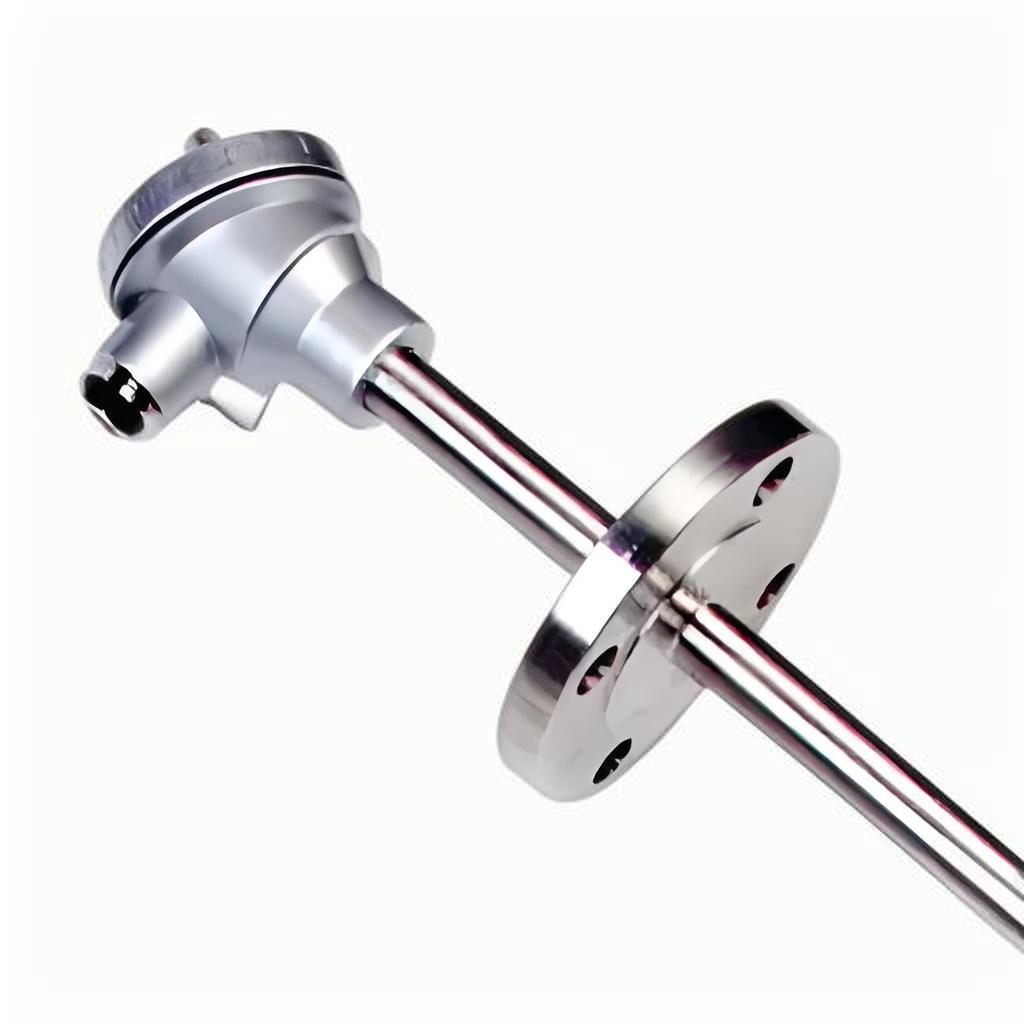

• Flange connection • DIN type based on 2F, welded multi-component heat pipe with straight tip •-40... +600°C /+1100°F OPTEMP PT-F13 is a flanged RTD sensor assembly (based on Table 2F) and neck tube with straight welded multi-component heat pipes.
Industrial temperature components for standard applications are suitable for the temperature measurement of solids, liquids and gases at low pressure and flow rates in pipelines and tanks. A particular advantage of this sensor type is that its wetted parts can be coated (e.g., with PTFE), making it resistant to corrosive media. OPTTEMP T-F13 is ATEX and IECEX certified.
• Temperature measurement of solids, liquids and gases
• Heat pipe material: 1.4404/316L or 1.4571/316Ti • Standard or custom length • Chemical resistant Teflon or similar coating for all wetted parts
• Different connection headers are available (IP54... IP68)
• With optional temperature transmitter
• Intrinsic safety: ATEX, IECEx typical
