Stainless steel vacuum flange for furnace tube (diameter 25/50/60/80/90/100) Supplier

Stainless steel vacuum flange for furnace tube (diameter 25/50/60/80/90/100)

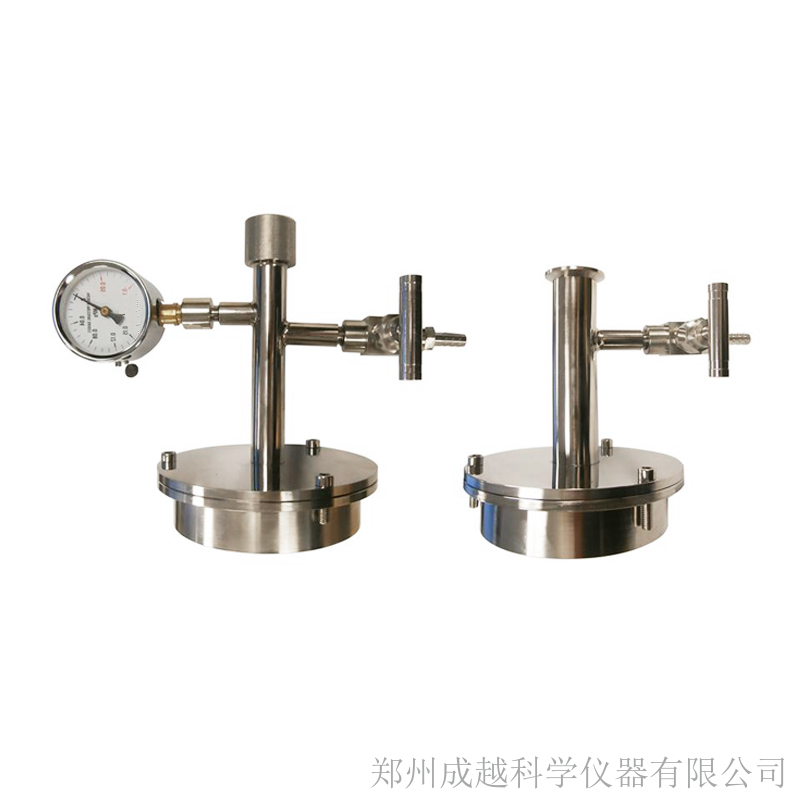

This is Zhengzhou CY stainless steel vacuum flange. This is the standard flange for various furnaces, and there are many models to choose from. Tightening the flange without any welding or bonding can make the tube sealed. All joints are made of 304 stainless steel, and a variety of joint solutions are available

Vacuum Coating Systems: Used in processes like magnetron sputtering, evaporation, and chemical vapor deposition (CVD), vacuum flanges enable the attachment of various chambers and components in coating systems.
Semiconductor Manufacturing: Flanges connect chambers in vacuum systems used for wafer processing, such as etching, deposition, and oxidation processes.
Cryogenic Systems: In cryogenic vacuum environments, flanges help maintain a tight seal to protect extremely low-temperature applications.
Particle Accelerators and Research Facilities: Large-scale experiments, like those in particle accelerators or fusion reactors, require vacuum flanges to join various vacuum-sealed sections.
Mass Spectrometry: Flanges help connect the vacuum chamber and various detectors or ion sources in mass spectrometry equipment.
Vacuum Furnaces: In high-temperature vacuum furnaces used for materials processing, flanges enable the connection of vacuum pumps and sensors.
Ultra-High Vacuum (UHV) Systems: In UHV systems, flanges are used to maintain pressures as low as 10⁻¹² mbar for scientific research and sensitive equipment testing.

Each application often requires a specific type of flange, such as ISO, KF, or CF flanges, depending on the vacuum level, system requirements, and size needed.

Product name	Stainless steel vacuum flange for furnace tube
Product model	CY-PFN-25/50/60/80/90/100
Material	304 stainless steel
Applicable tube diameter	25/50/60/80/90/100mm
Air tightness	Vacuum degree reference value: Molecular pump 10E-5torr Mechanical pump 10E-2 torr
Purpose	Used for sealing both ends of furnace tubes of various vacuum tube furnaces

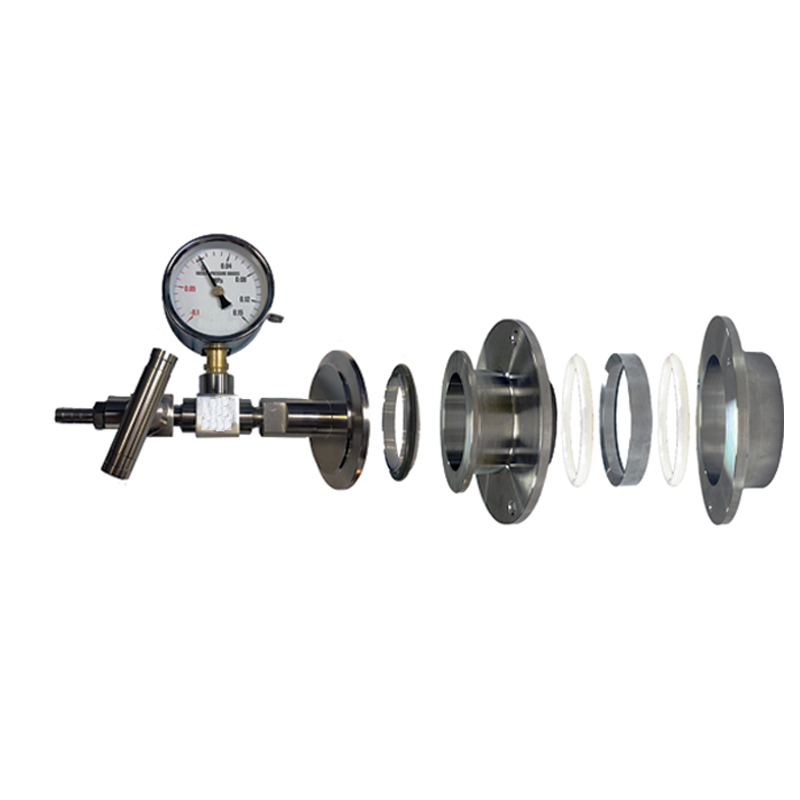

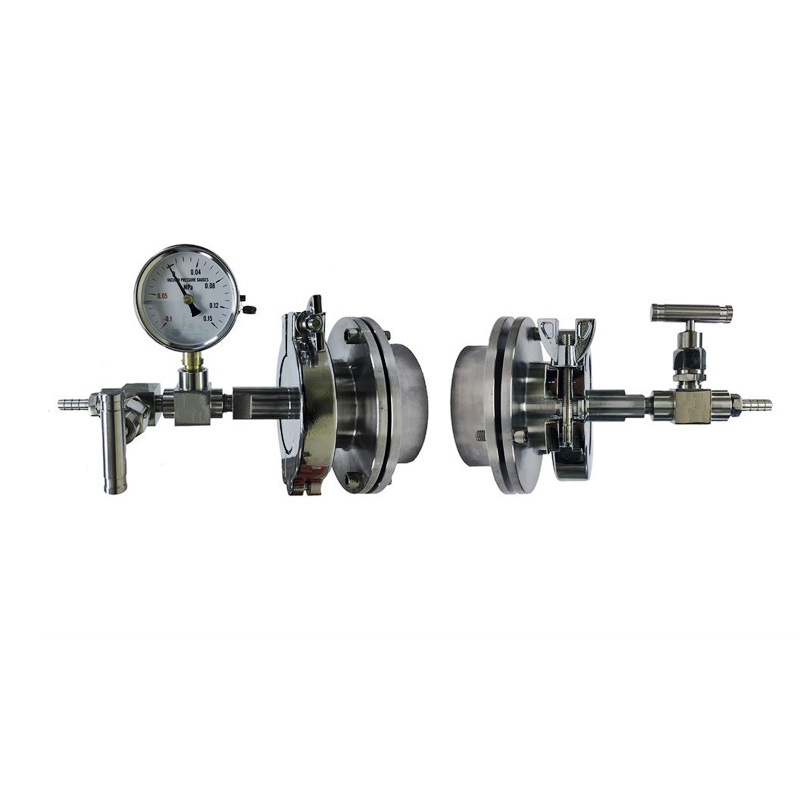

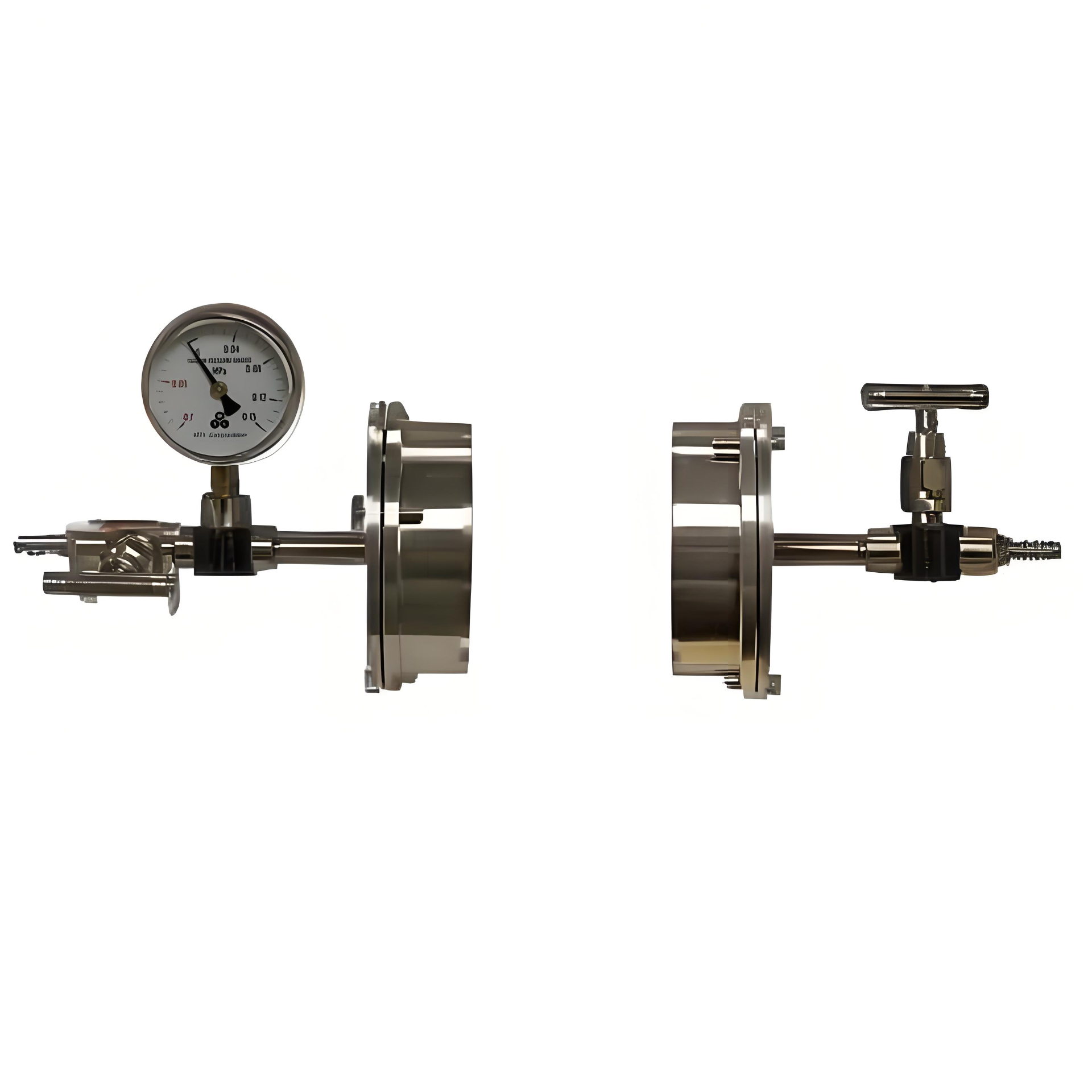

Structure	One end is gas inlet and outlet, and the other end is mechanical pressure gauge; The joints at various parts of the flange can be changed (please consult our sales before purchase for details)
Packaging	Bubble pad packaging, plywood wooden packaging box
User instructions	Prevent oil and dust from clogging the vent hole of the needle valve. If oil and dust are found, clean them up in time
