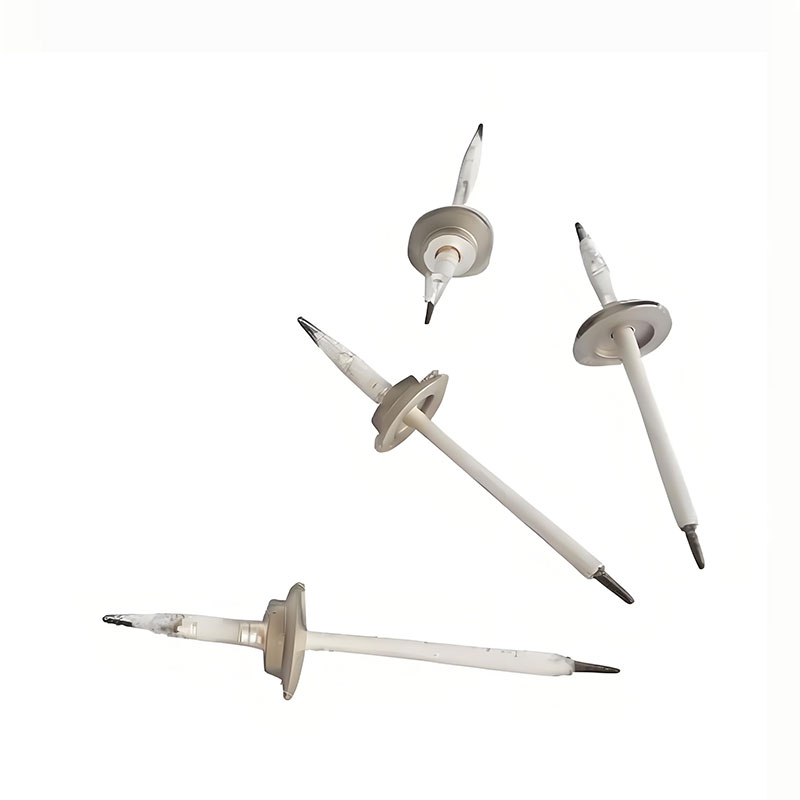

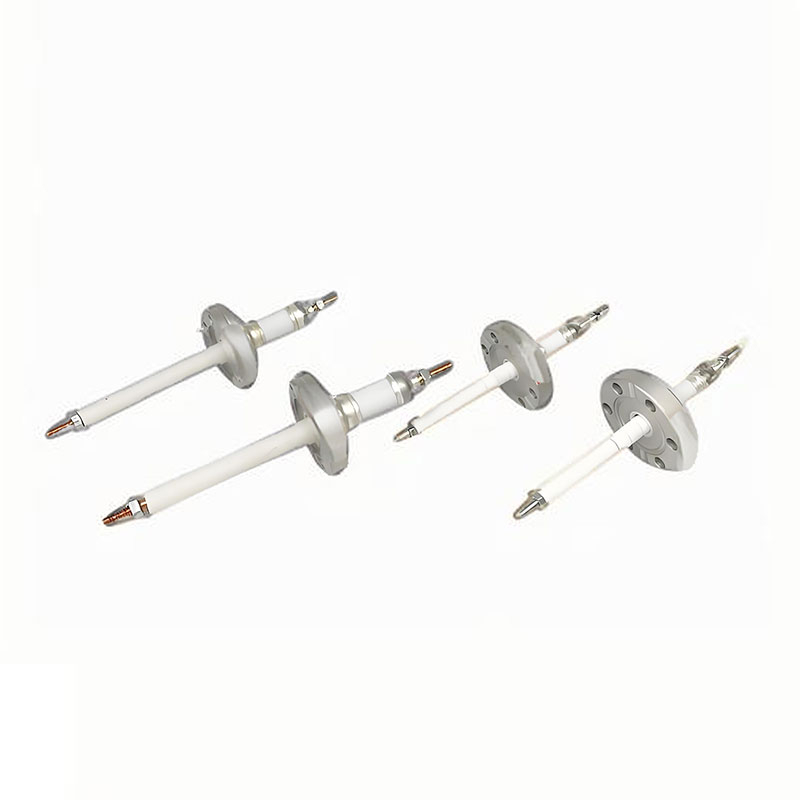

KF high voltage electrode flange for magnetron sputtering

KF high voltage electrode flange Used for grounding, closed-loop cooling and non-conductive coolant delivery in vacuum systems
Flange material :SUS304
Insulator material :95% alumina ceramic
Sleeve: Corvar alloy
Welding process: vacuum silver brazing
Temperature resistance parameter
CF:-270℃-450℃
KF:-20℃-200℃
Vacuum environment
CF:≥10-10 mbar
KF:≥10-8 mbar

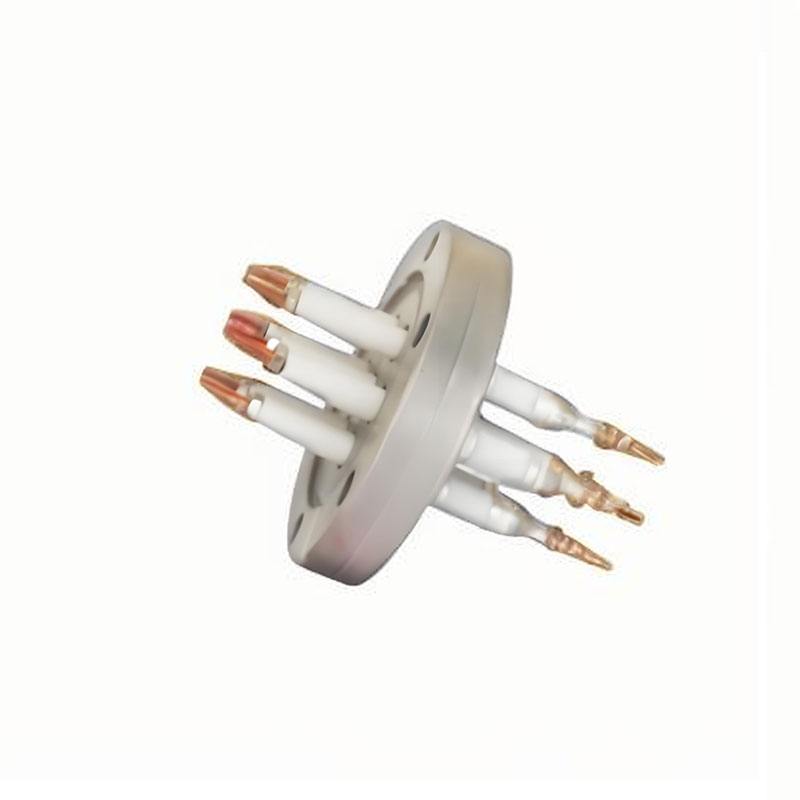

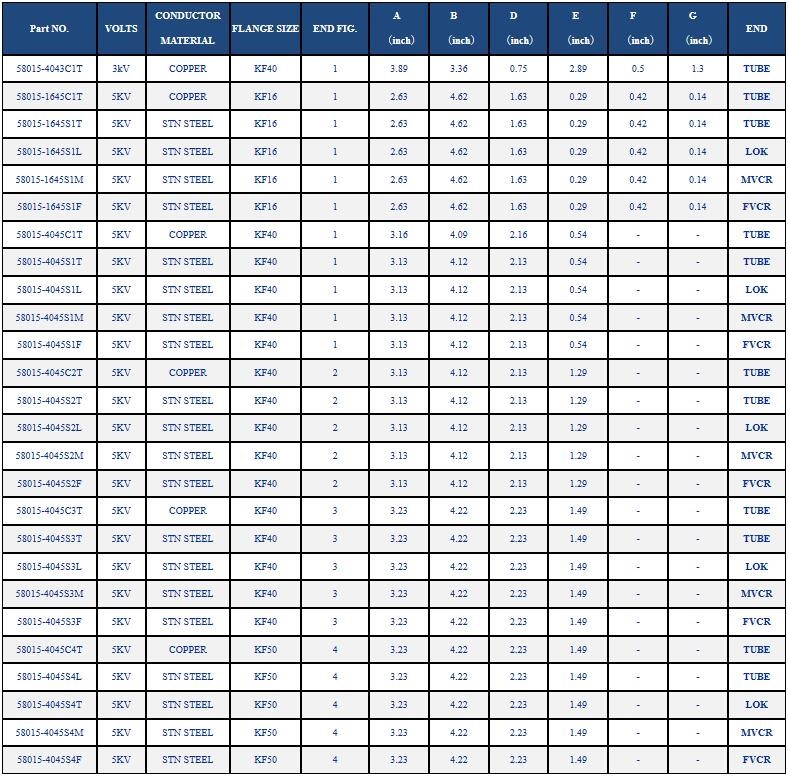

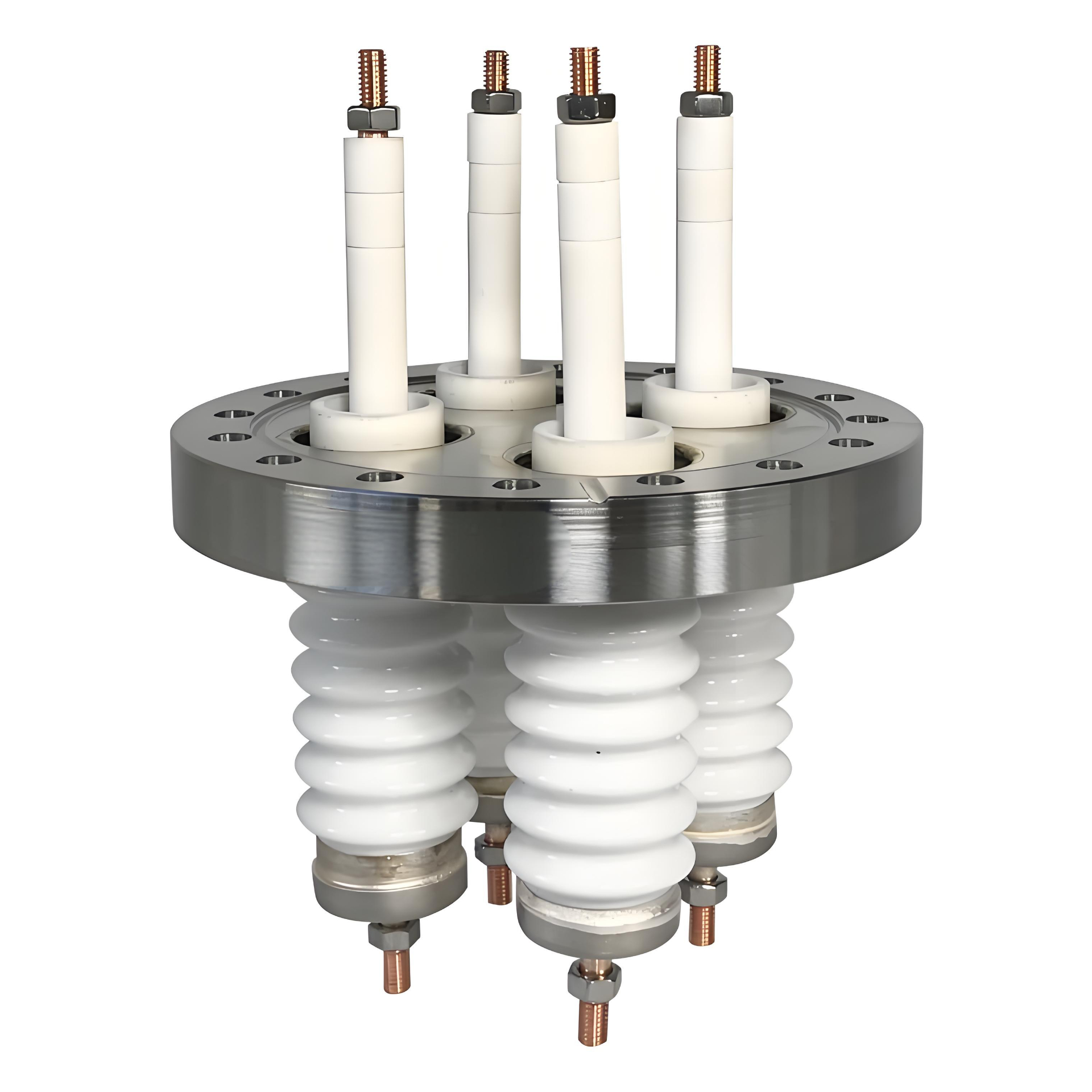

Two kinds of nozzle materials, four kinds of joint shapes, 1-4 core electrodes are available
Can provide non-standard customized services; 2D, 3D format file
More needs Contact a sales representative
