Furnace tube water-cooled sealing flange (diameter 25/50/60/80/90/100mm)Furnace tube water-cooled sealing flange (diameter 25/50/60/80/90/100mm)Furnace tube water-cooled sealing flange (diameter 25/50/60/80/90/100mm)Furnace tube water-cooled sealing flange (diameter 25/50/60/80/90/100mm)

Furnace tube water-cooled sealing flange (diameter 25/50/60/80/90/100mm)

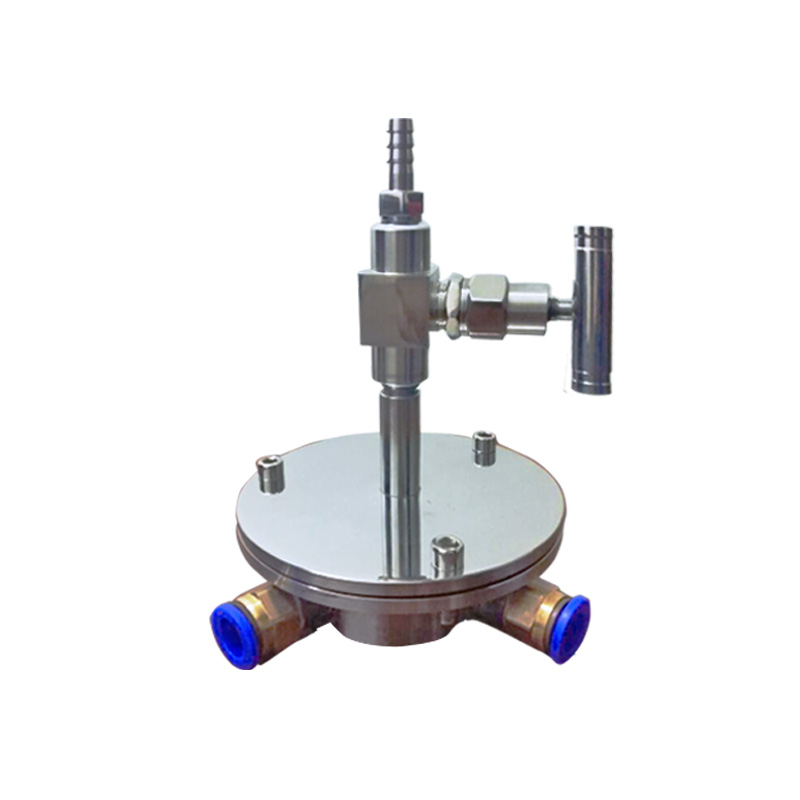

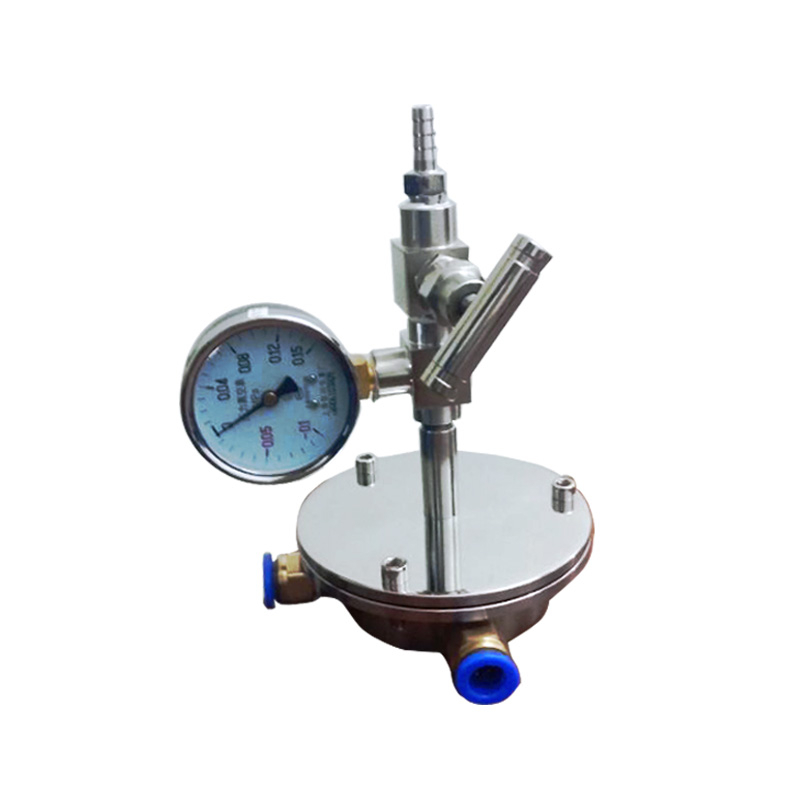

    This is a sealing flange with stainless steel water-cooled tube and valve, suitable for furnace tubes of different outer diameters. If you cannot use ceramic blocks on both ends of the tube, you must use stainless steel water-cooled tubes to keep the flange cool (otherwise, the silicone O-ring may be damaged)

This is a sealing flange with stainless steel water-cooled tube and valve, suitable for furnace tubes of different outer diameters. If you cannot use ceramic blocks on both ends of the tube, you must use stainless steel water-cooled tubes to keep the flange cool (otherwise, the silicone O-ring may be damaged).



Features:

l  Made of stainless steel, with double high-temperature silicone O-rings on the flange.

l  Stainless steel needle valve with 1/4 inch pipe connector.

l  Push-in water pipe connector.

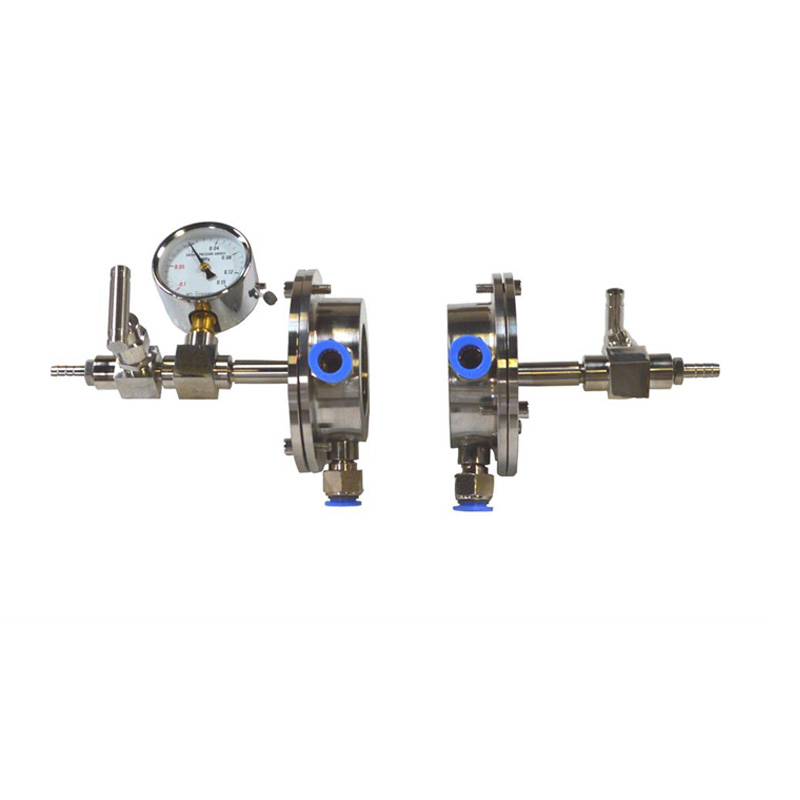

l  The assembly kit will seal one end of ceramic and quartz tubes with a diameter of 25/50/60/80/90/100 mm. The vacuum gauge is installed on one side of the flange.

Purchase Information:

If you are interested in our water-cooled flanges, please contact us for more information and quotation.

l  Tel: 138 3857 9492

l  Email: carol@cysitech.com

l  Contact person: Carol Xu

l  WeChat: 15290599353

l  WhatsApp/Skype: 13838579492

Technical parameters:

Product name

Water-cooled sealing flange for furnace   tubes

Product model

CY-WFN-25/50/60/80/90/100

Material

304 stainless steel

Applicable tube diameter

25/50/60/80/90/100mm

Air tightness

Vacuum reference value:

Molecular pump 10E-5torr

Mechanical pump 10E-2 torr

Purpose

For pipes without pipe plugging, water   cooling is used to reduce the temperature of the silicone sealing ring to   prevent heat radiation.

Packaging

Bubble pad packaging, plywood wooden   packaging box

Instructions for use

Prevent oil and dust to avoid clogging   the vent hole of the needle valve. If you encounter oil stains or dust, clean   them up in time.

 Vacuum flanges are essential components used in vacuum systems to connect various elements such as pumps, chambers, and piping, while maintaining the system's vacuum integrity. They provide a leak-tight seal that prevents air and contaminants from entering or escaping the vacuum environment. Applications of vacuum flanges include:

  1. Vacuum Coating Systems: Used in processes like magnetron sputtering, evaporation, and chemical vapor deposition (CVD), vacuum flanges enable the attachment of various chambers and components in coating systems.

  2. Semiconductor Manufacturing: Flanges connect chambers in vacuum systems used for wafer processing, such as etching, deposition, and oxidation processes.

  3. Cryogenic Systems: In cryogenic vacuum environments, flanges help maintain a tight seal to protect extremely low-temperature applications.

  4. Particle Accelerators and Research Facilities: Large-scale experiments, like those in particle accelerators or fusion reactors, require vacuum flanges to join various vacuum-sealed sections.

  5. Mass Spectrometry: Flanges help connect the vacuum chamber and various detectors or ion sources in mass spectrometry equipment.

  6. Vacuum Furnaces: In high-temperature vacuum furnaces used for materials processing, flanges enable the connection of vacuum pumps and sensors.

  7. Ultra-High Vacuum (UHV) Systems: In UHV systems, flanges are used to maintain pressures as low as 10⁻¹² mbar for scientific research and sensitive equipment testing.

Each application often requires a specific type of flange, such as ISO, KF, or CF flanges, depending on the vacuum level, system requirements, and size needed.
