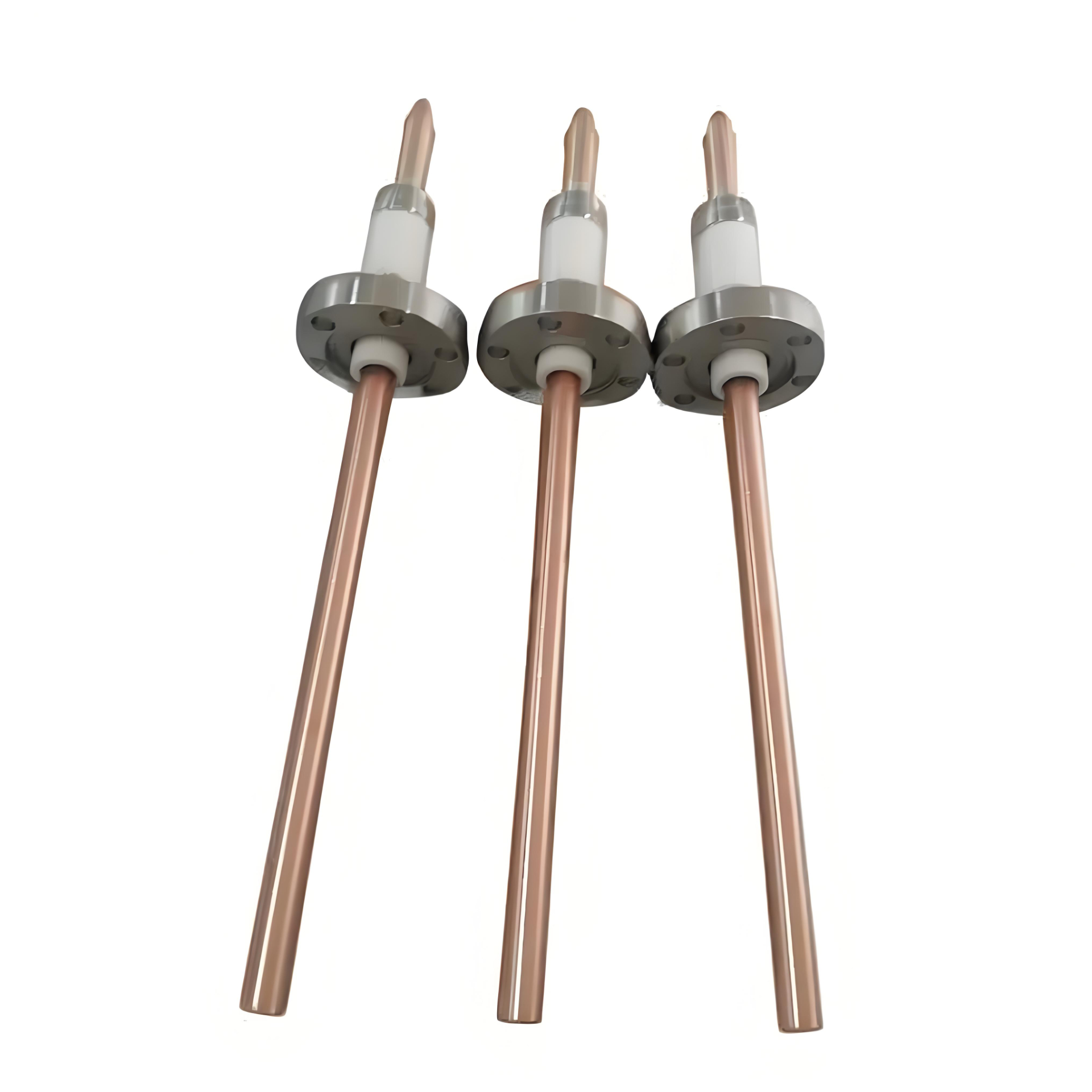

CF electrode flange

Vacuum electrode/Ceramic electrode/Ceramic metallization, ceramic metallization sealing, ceramic metallization sealing electrode, glass sealing electrode, ionization vacuum chamber

Process: After high-tech vacuum plating, sintering, leakage and other multi-process processing, generally by vacuum ceramics, cutting, stainless steel, oxygen free copper and other materials, reliable quality.

Usage: Because of its reliable sealing performance and good high voltage insulation performance, it is widely used in ultra-high vacuum and high vacuum systems, and is used to transmit voltage, current and electrical signals between vacuum systems and the outside world.

Technical indicators: leakage rate: < 10-8Pa·L/S, baking temperature: < 300°C

Instructions for ordering:

1. Connection flange form (CF, ISO, KF, LF), flange size.
2. Pressure tolerance:
3. Through the current size.
4. How many electrode cores are there?
5. Length of electrode core.
Can be made according to drawings and other non-standard
