Gas compression nozzle/Air atomizing nozzles

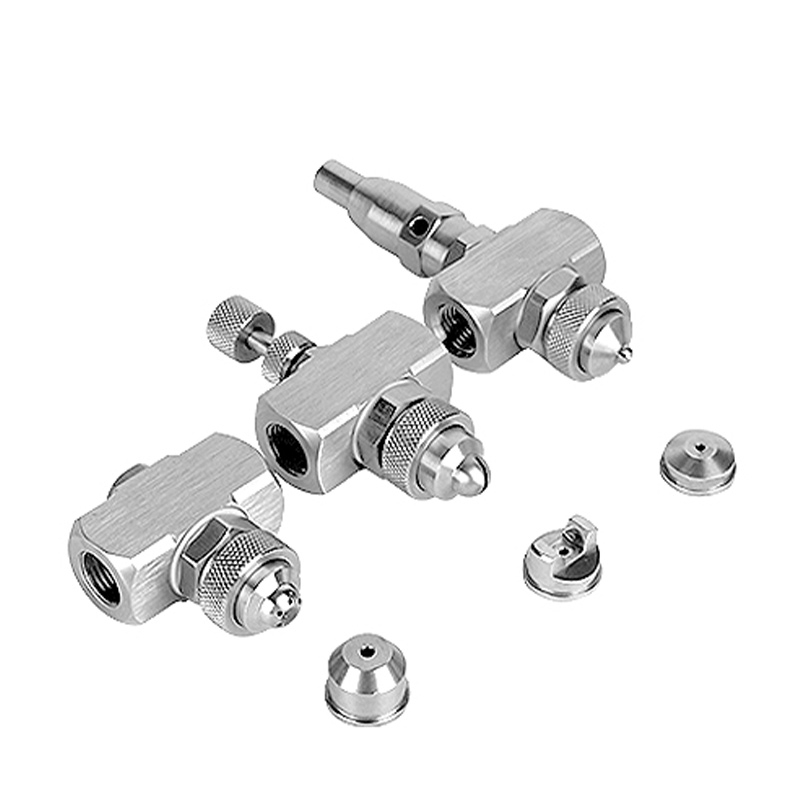

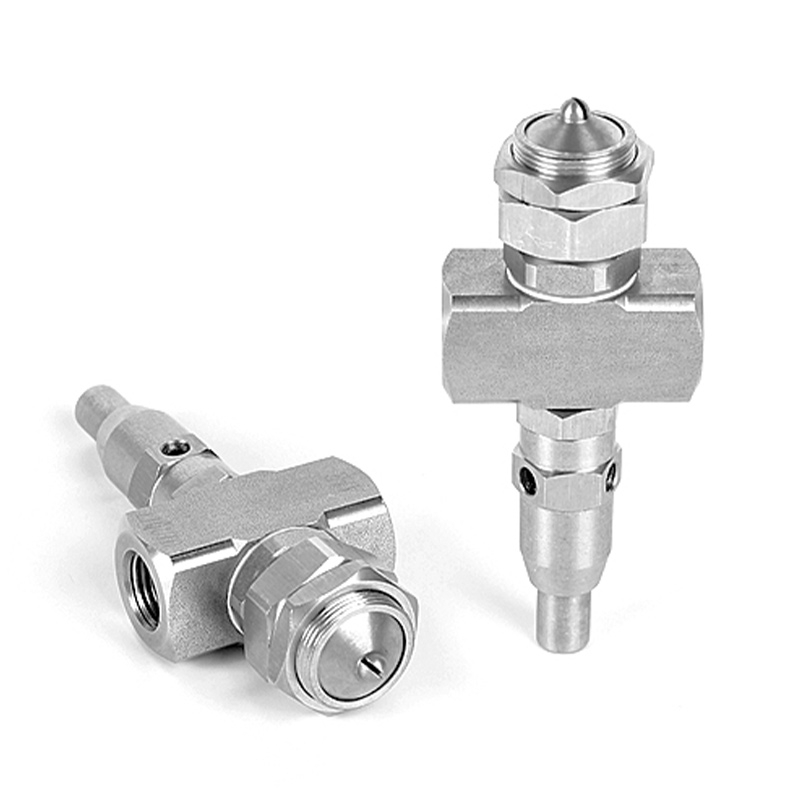

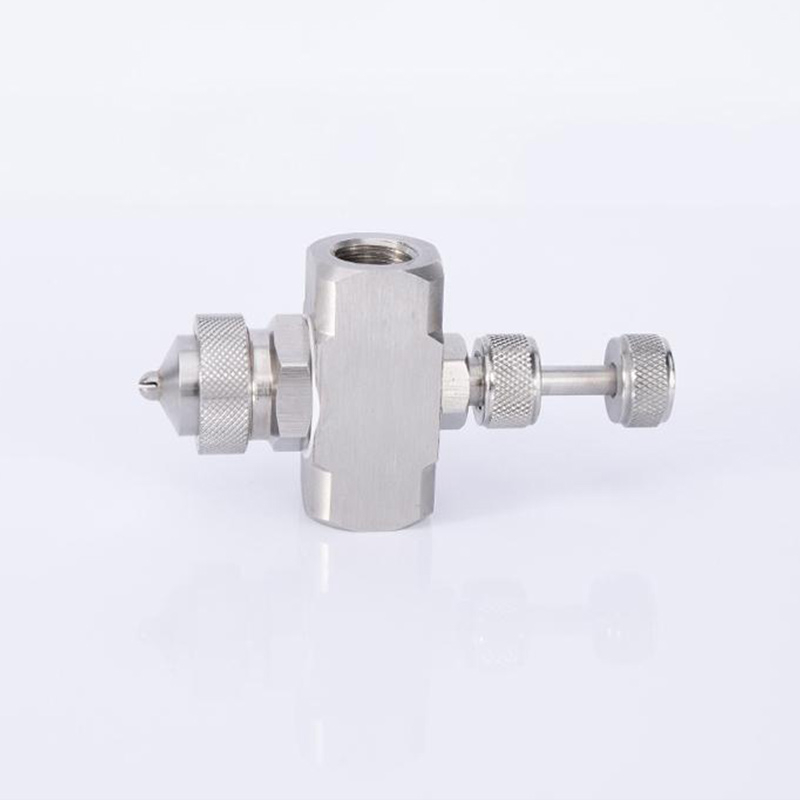

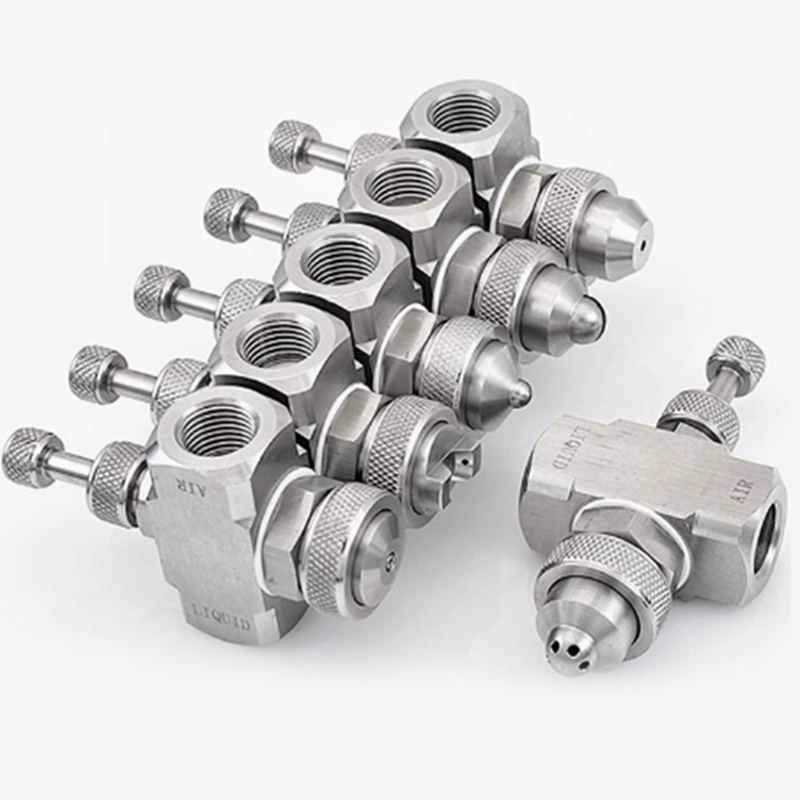

The special internal structure design of the CY series air atomizing nozzle can make the liquid and gas mix evenly, producing a fine droplet size spray or a coarse droplet spray. Usually, by increasing the gas pressure or reducing the liquid pressure, a finer (about 30 microns) droplet spray can be obtained, resulting in a higher gas flow rate to liquid flow rate ratio. The adjustable air atomizing nozzle can adjust the liquid flow rate, and can also produce the required spray without changing the air pressure and liquid pressure, so it has strong adaptability. Each spray device consists of an air cap and a liquid cap, which can provide two spray modes, fan-shaped and circular, and has a wide range of flow rates. The inlet joint of the nozzle body has a variety of sizes, suitable for most commonly used pipes. The above nozzle parts can be interchanged, which provides flexibility for obtaining different spray performance. The fine droplet spray produced by the air atomizing nozzle can play an excellent humidification role in the surrounding environment. The air atomizing nozzle is an ideal choice for places that require effective humidity control.

Application range：

1. Wetting and rust removal

2. Air humidification

3. Chemical treatment

4. Chemical spraying

5. Liquid spraying

6. Tobacco leaf humidification

7. Tablet coating

8. Flue gas evaporation cooling

9. Sterilization and disinfection

10. Component cooling

11. Fruit wax spraying

12. Tile glazing.

Application Areas

Electronics, chemicals, environmental protection, steel, machinery, coating, electroplating, textiles, automobiles, papermaking, medicine, food and other industrial production fields.

 Technical Specifications：
