60K ultrasonic line spray nozzle

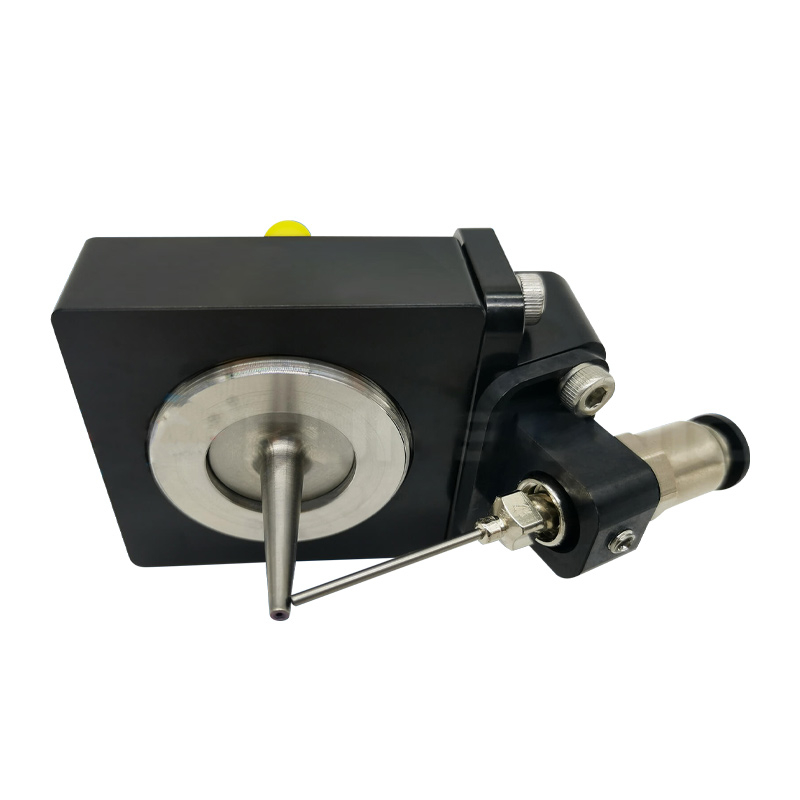

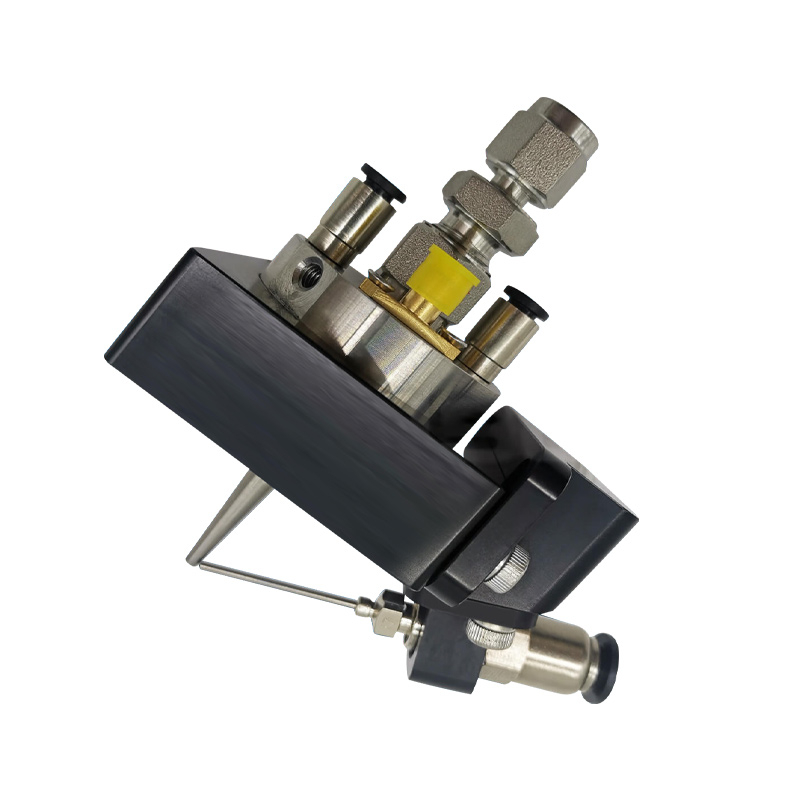

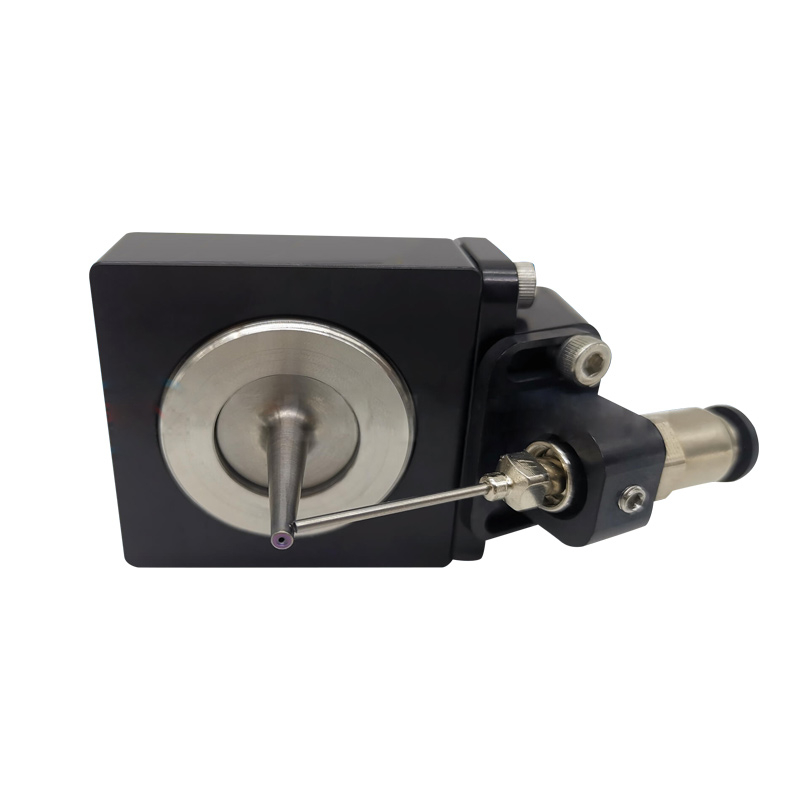

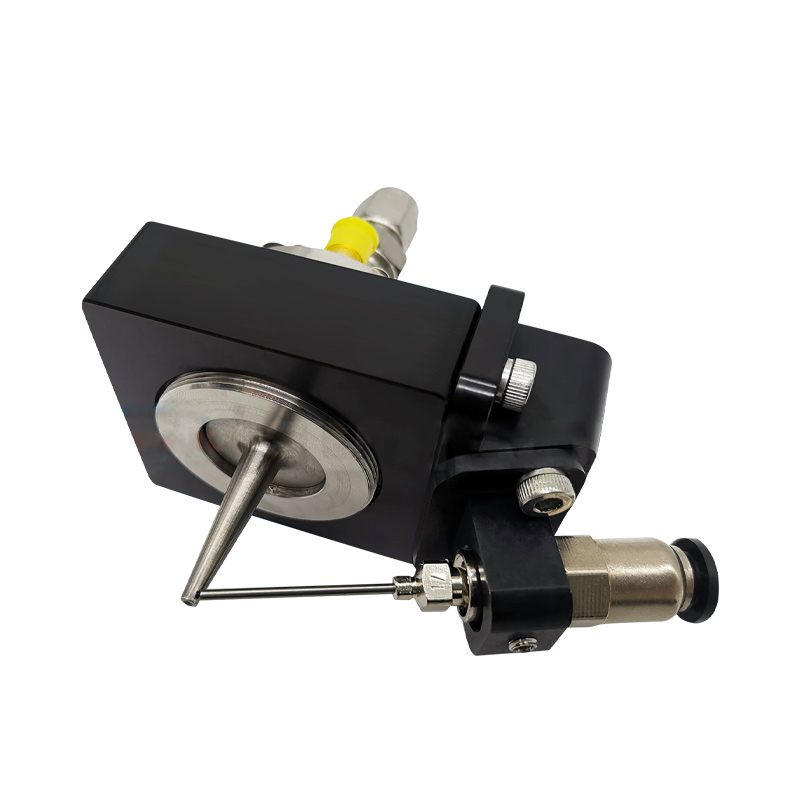

CY line spray pattern combines a focused ultrasonic atomizing nozzle with low pressure air/gas to produce a soft, highly focused beam of small droplets. An isolated hypotube delivers the liquid to the atomizing surface of the nozzle, while the air/gas delivered through the nozzle orifice at a fixed low pressure shapes the atomized droplets into a very precise target spray beam with a diameter of only 0.020 inches (0.5 mm).

Principle of ultrasonic atomizing nozzle

Unlike pressure sprinklers, ultrasonic sprinklers do not use high pressure to force liquid through a small hole to produce spray. The liquid enters through a relatively large center of the sprinkler, without pressure, and is atomized by ultrasonic vibrations within the sprinkler.

Each ultrasonic sprinkler operates at a specific resonant frequency, which determines the median size of the droplets. The size of the droplets varies very little and can be mathematically calculated to be distributed within an accurately predicted range. For example, a 120 kHz sprinkler produces a median droplet size of 18 microns (when spraying water). The higher the frequency, the smaller the median value decreases.

Features

1. Extremely small area spraying, extremely small flow rate: spraying width 1-2mm, minimum flow rate 0.005ml/min

2. Uniform coating: uniformity > 95

3. Save raw materials: raw material utilization rate is more than 85%, which is 4 times that of traditional two-fluid spraying

4. Efficient spraying, reducing raw material consumption

5. Fine atomized particles, uniform atomized particles

6. Can spray intermittently or continuously

7. Will not clog the nozzle

8. Anti-corrosion nozzle

9. High-precision controllable spraying

 Technical Specifications:
