Laboratory 1200℃ Vacuum Vertical Tube Furnace for Fluidized Bed-CY-V1200-60IT

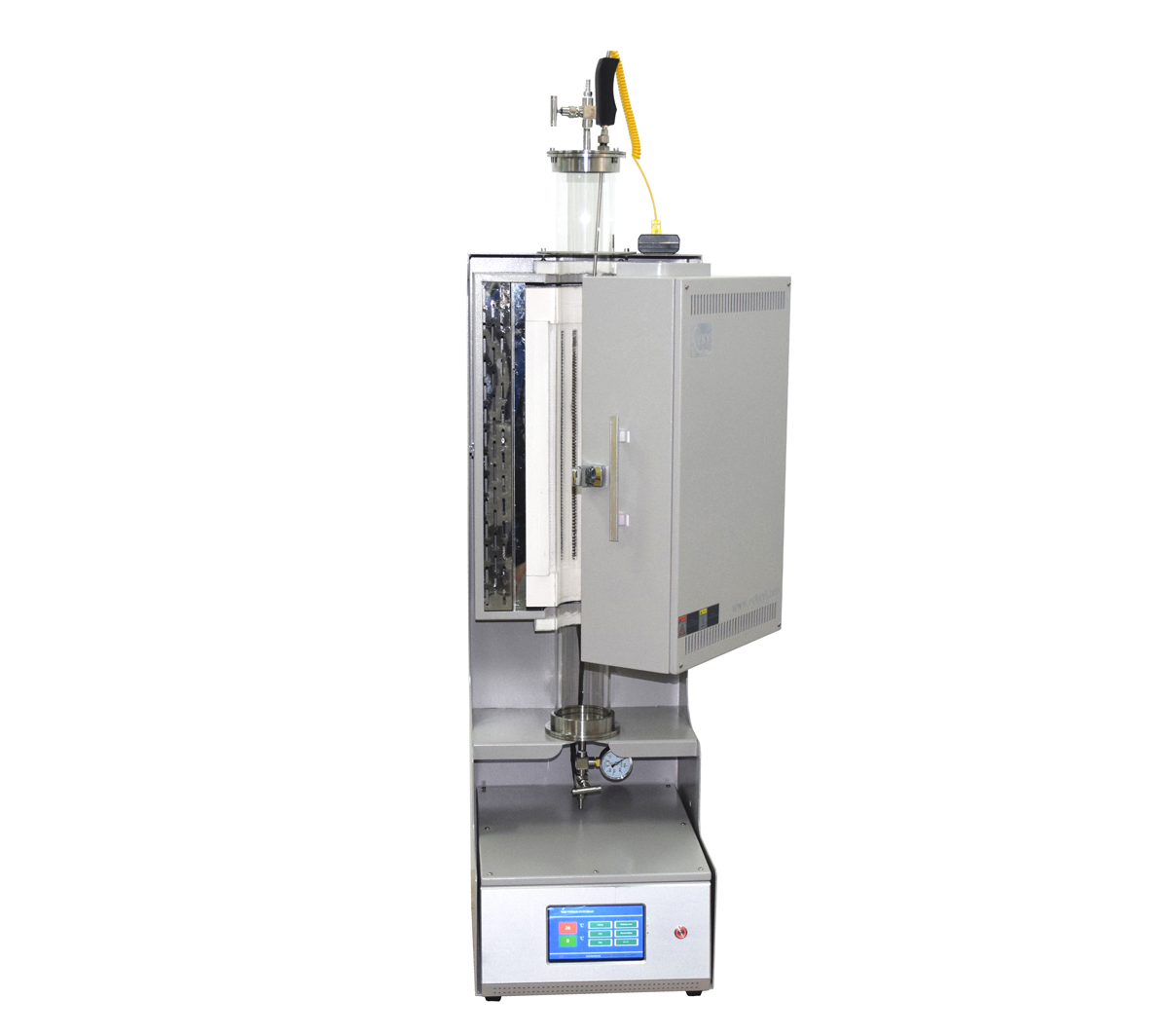

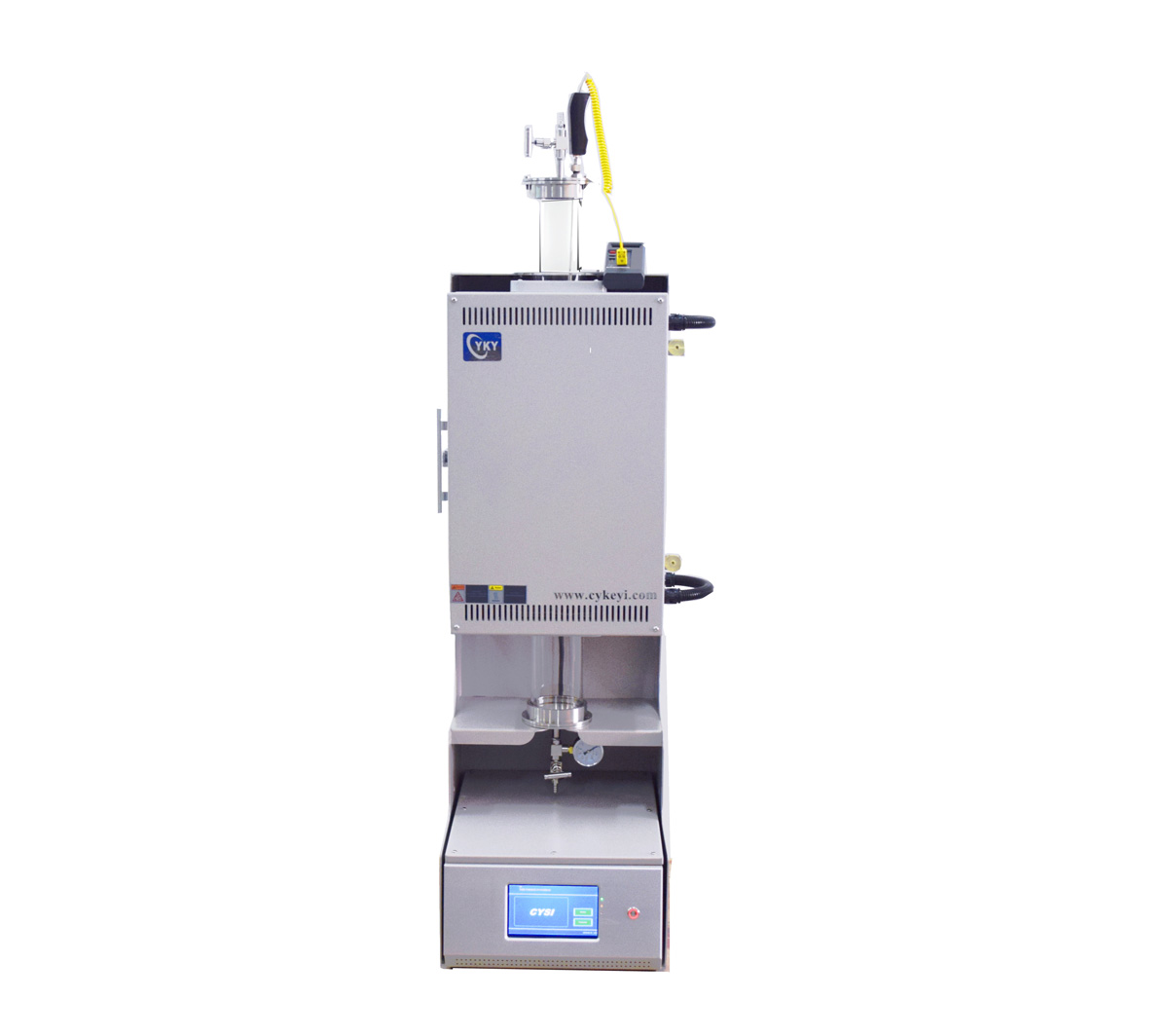

    CY-V1200-60IT is a CE Certified Fluidized Bed Vertical Furnace with 2'' O.D Quartz Tube for powder CVD ( FBCVD)applications. It consists a vertical positioned cylindrical heating chamber which surrounds the quartz tube with a built-in filter right in the lower middle section of the central heating zone. Its filter is a porous (15~40 microns) quartz frit that allows the controlled gas flow pass through and float the particles on a cushion of the gas stream where the interaction between the solid and gaseous materials take place.

Featrues

1.Double shell casing with three cooling fans

2.High purity quartz tube, resistance high temperature 1200 ℃

3.Programmable and PID automatic control

4.High purity alumina fibrous chamber material insulation for energy saving

5.Split cover enable faster cooling and easy operate


Model No.

CY-V1200-60IT

Display

LCD Touch Panel

Limiting temperature

1200℃

Working temperature

≤1150℃

Heating rate

0-20℃/min

Heating zone length

400mm

Heating zone

Single zone

Tube diameter

50/60/80/100mm

Tube length for use

1000mm

Temperature accuracy

± 1℃

Heating element

Fe-Cr-Al alloy adopt by Mo

Thermal couple

Two unit Thermalcouple

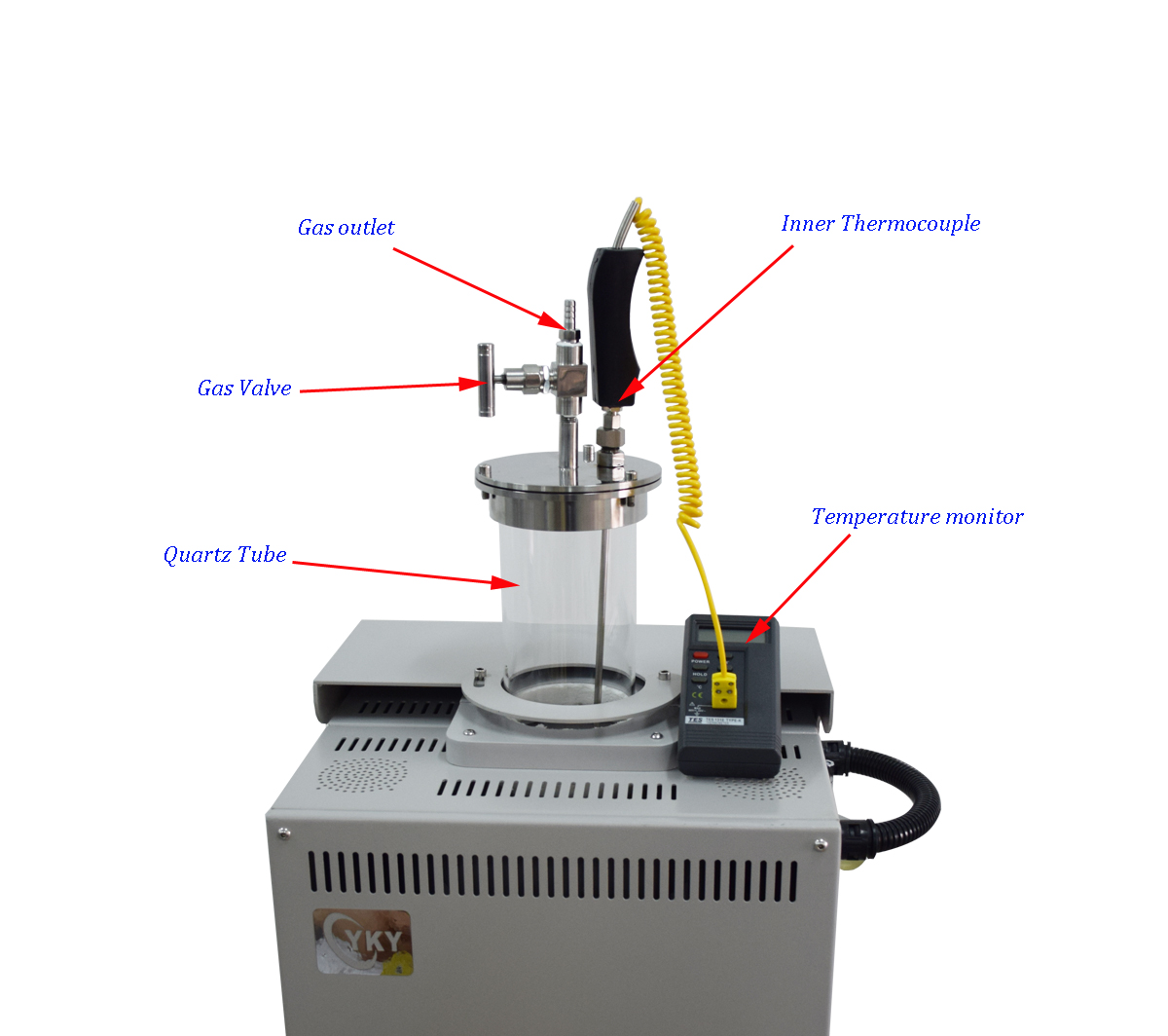

     1. One piece K type thermal couple insert the quartz tube to measured inner temperature
   2. The other K type thermal couple installed in furnace chamber to measured chamber temperature

Max Power

2.5kw

Temperature control

30 steps programmable PID control

Chamber material

Alumina fiber

Over-temperature alarm

Yes

Over-current alarm

Yes

Working voltage: 220V 50Hz, or as customized
