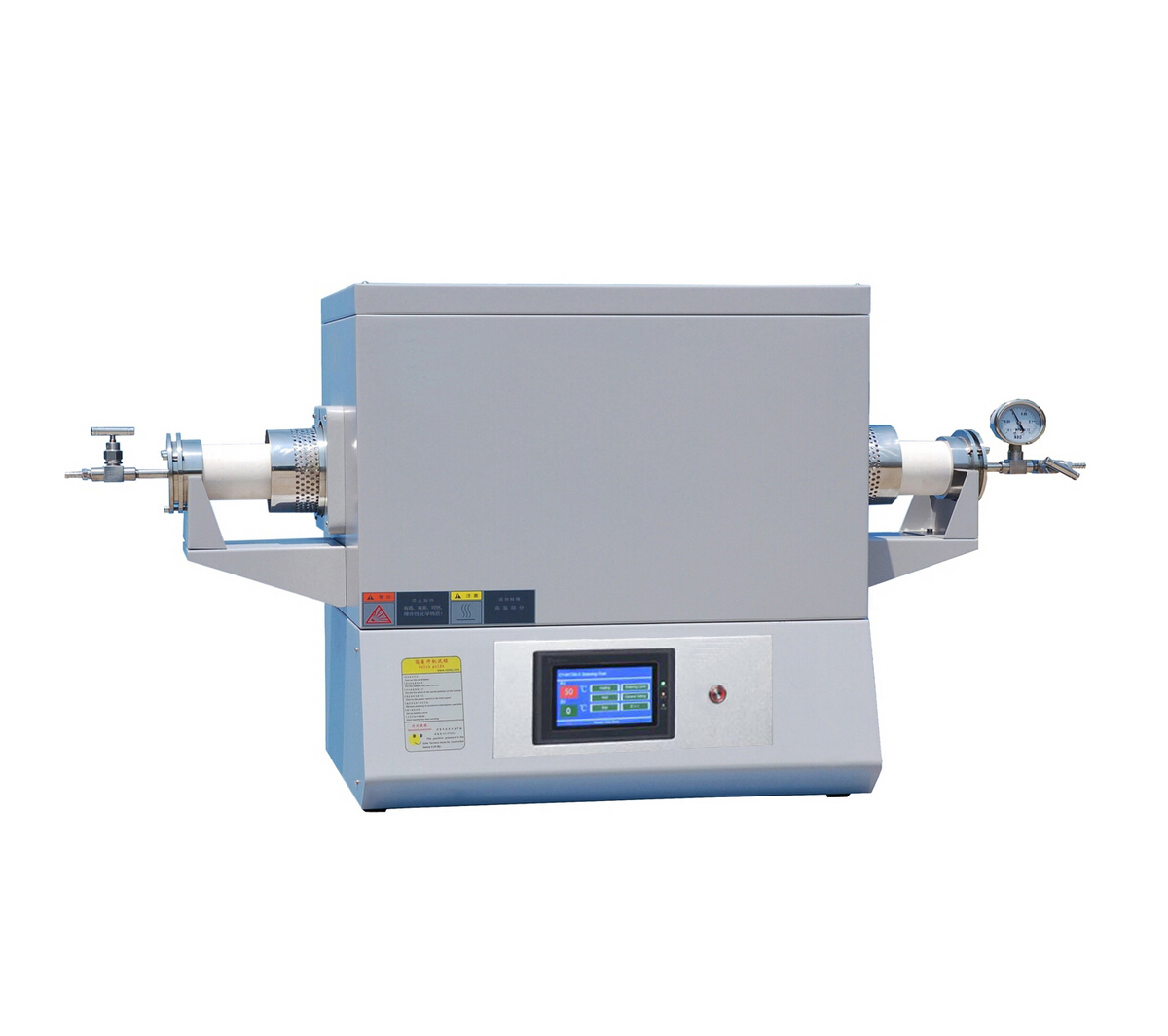

Laboratory 1700℃ High Temperature Vacuum Tube Furnace with O.D80*1000mm Heating zone CY-T1700-80IT

Laboratory 1700℃ High Temperature Vacuum Tube Furnace with O.D80*1000mm Heating zone CY-T1700-80IT

    CY-T1700-80IT is a compact tube furnace with High Purity MoSi2 heating rods and high purtiy corundum tube which can reach 1700℃.The tube furnace is controlled by a 30 segment programmable with high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions

Model No.

CY-T1700-80IT

Display

7” LCD Touch Panel

Limiting temperature

1650℃

Working temperature

≤1600℃

Heating rate

0-20℃/min

Heating Zone length

300mm, constant temperature zone150mm

Corundum tube diameter

OD80*1000mm

Temperature accuracy

± 1℃

Heating element

High Purity MoSi2 Rod

Thermal couple

B TYPE

Cooling method

Double layer structure with fan cooling

Temperature control

30 steps programmable PID control

Chamber material

Alumina fiber

Over-temperature alarm

Yes

Over-current alarm

Yes

Sealing flange

S.S vacuum flange

Cooling method

air forced cooling

Gas mixer

One way with Float Flow Controller

Main Power

4.5Kw

Working voltage

AC220V,50Hz
