Ultrasonic atomization vertical single-zone tube furnace systemUltrasonic atomization vertical single-zone tube furnace systemUltrasonic atomization vertical single-zone tube furnace systemUltrasonic atomization vertical single-zone tube furnace systemUltrasonic atomization vertical single-zone tube furnace system

Ultrasonic atomization vertical single-zone tube furnace system

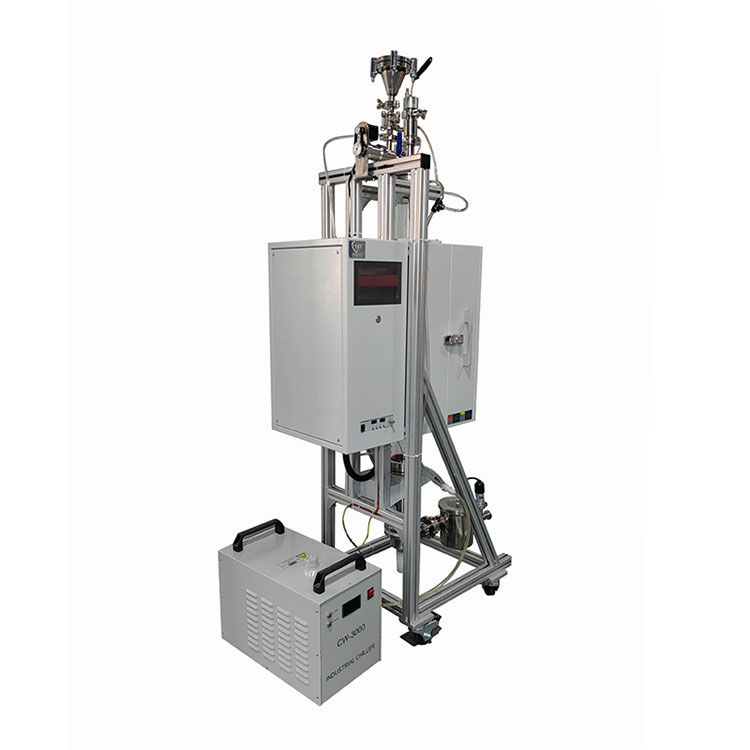

    Ultrasonic atomization vertical single temperature zone tube furnace is a multifunctional synthesis system, which is aimed at the synthesis of various nanostructured oxides and the composite coating process of nanomaterials. This instrument consists of three main modules: ultrasonic atomization device, 1200 ℃ single temperature zone vertical tube furnace and electrostatic collection device. It can be widely used in nanomaterial preparation, electrode material coating and composite, etc.

Ultrasonic atomization vertical single temperature zone tube furnace is a multifunctional synthesis system, which is aimed at the synthesis of various nanostructured oxides and the composite coating process of nanomaterials. This instrument consists of three main modules: ultrasonic atomization device, 1200 ℃ single temperature zone vertical tube furnace and electrostatic collection device. It can be widely used in nanomaterial preparation, electrode material coating and composite, etc.

Ultrasonic atomization vertical single-zone tube furnace system

tube furnace technical parameter:

Power supply

Single Phase AC 220V, 50/60 Hz

Ultrasonic Generator and Nozzle

Max. power: 30W

Ultrasonic frequency: 50KHz

Suitable for liquid viscosity: 30cps

Particle size: 20-25um

Spray flow rate: 0.01-20ml/min

Acceptable suspension particle size: 10um

Acceptable suspension solid content: 30%

Spraying width: 2-20mm

Diversion air pressure: 0.05Mpa

Continuous Temperature

Max. 1100℃

Max. Heating Rate

≤ 20℃/min.

Temperature Accuracy

+/- 1℃

Tube Size and Materials

One 1000mm length quartz tube is included

OD: 100 mm, ID. 95 mm

Foam ceramic blocks with alumina coating are   included, which is hanged on top of flange to protect O-ring damaged by heat   radiation

Heating Element

Alloy resistance wire

Heating Zone Length

400mm

Constant Temperature Zone

200 mm

Temperature Controller

30 programmable segments for precise control   of heating rate, cooling rate and dwell time.

Built in PID Auto-Tune function with overheating   & broken thermocouple broken protection.

Over temperature protection and alarm allows for   operation without attendant(s).

Temperature control accuracy: +/-1℃

Vacuum Sealing Flange

Two stainless steel flanges with vacuum gauge and   valves included

Gas outlet (vacuum port ) on top

Gas inlet on bottom

Powder collection device

At the bottom

Vacuum Level

10E-2 Torr by mechanical vacuum pump

Pumping speed: 1.1L/s

Net Weight

About 80 kg



Nanopowder collector

High voltage power supply

Output voltage: 0-30000V, adjustable

Output current: ≤1mA

Tubular electrostatic collector

The positive and negative plates are installed in   the collector

Continuous liquid feeder

High precision peristaltic pump

Speed range: 0.01-600rpm

Flow range: 0.0008ml-2400ml/Min
