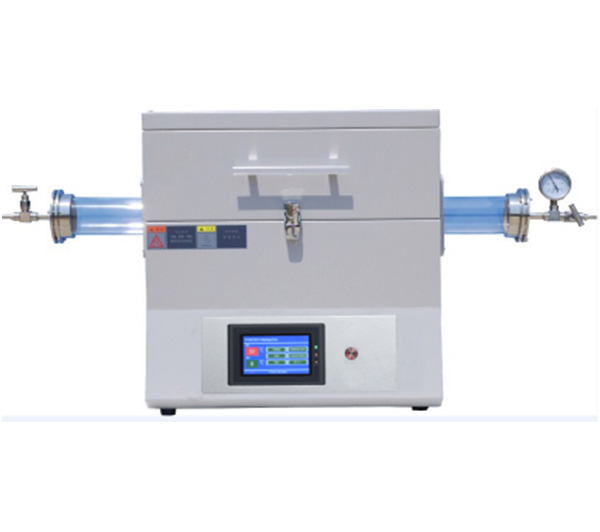

Model No. | CY-O1200-50IT |
Display | LCD Touch Panel |
Limiting temperature | 1200℃ |
Working temperature | ≤1150℃ |
Heating rate | 0-20℃/min |
Heating zone length | 400mm |
Heating zone | Single zone |
Max outer tube diameter | 50/60/80/100mm |
Tube length for use | 1000mm |
Temperature accuracy | ± 1℃ |
Heating element | Fe-Cr-Al alloy adopt by Mo |
Thermal couple | K TYPE |
Max Power | 2.5kw |
Temperature control | 30 steps programmable PID control |
Chamber material | Alumina fiber |
Over-temperature alarm | Yes |
Over-current alarm | Yes |
Working voltage: 220V 50Hz, or as customized |
