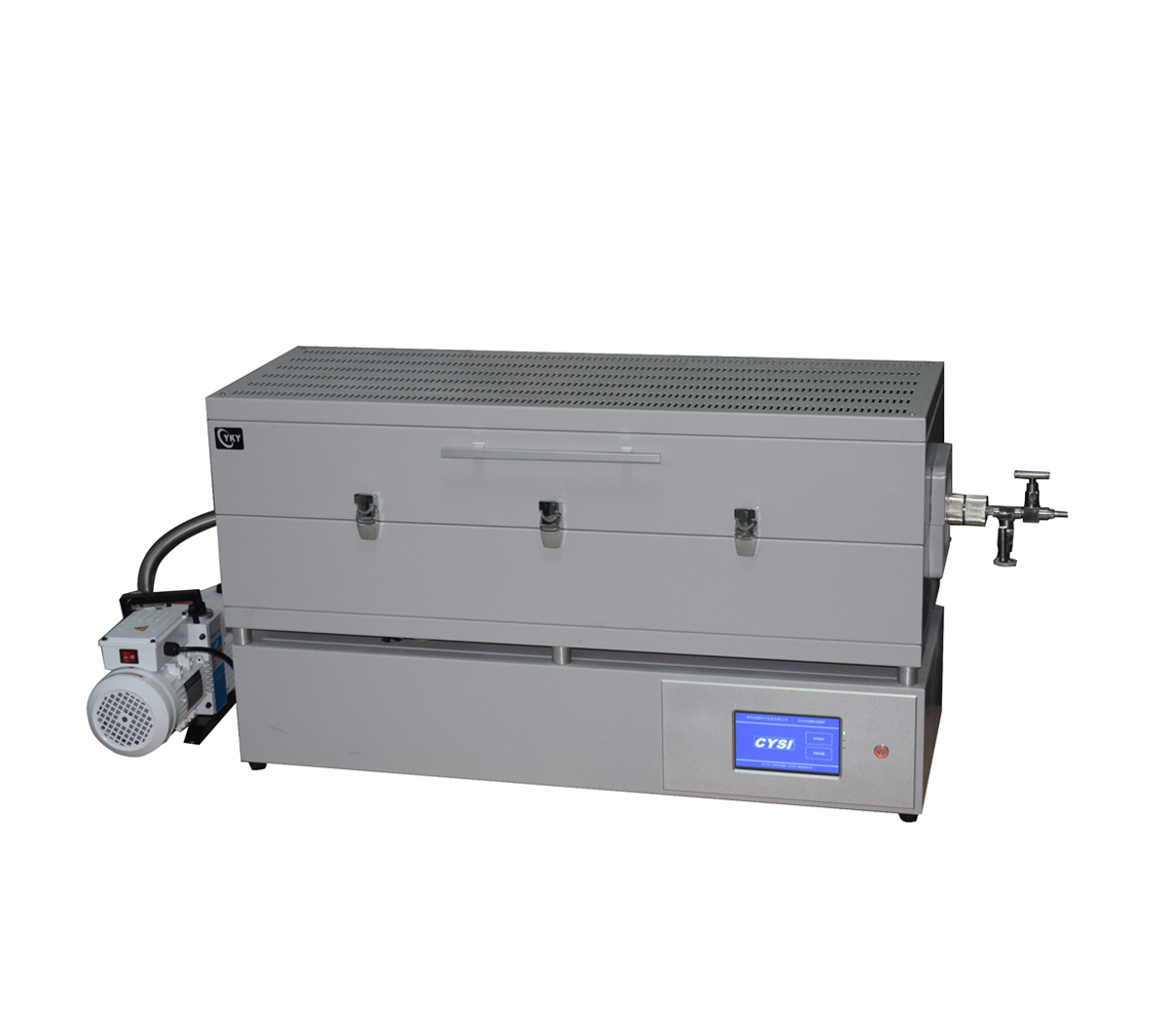

CY-O1200-25IIIT Three Heating Zone Tube Furnace with 7

CY-O1200-25IIIT Three Heating Zone Tube Furnace with 7"PID Temperature Controller CY-O1200-25IIIT

    CY-O1200-25IIIT is a compact 25mm tube furnace with imported heating wire.The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in CVD method MoS2 thin film preparation, nanotube producing,small sample annealing etc.


    Model No.

    CY-O1200-25IIIT

    Display

    7” LCD Touch Panel

    Limiting temperature

    1150℃

    Working temperature

    Rm~1150℃

    Heating rate

    0-20℃/min

    Heating Zone length

    200+400+200mm, constant temperature zone:350mm

    Corundum tube diameter

    OD25*1000mm,50/60/80/100/120mm for option

    Temperature accuracy

    ± 1℃

    Heating element

    Aludrome

    Thermal couple

    K TYPE

    Cooling method

    Double layer structure with fan cooling

    Temperature control

    30 steps programmable PID control

    Chamber material

    Alumina fiber

    Over-temperature alarm

    Yes

    Over-current alarm

    Yes

    Sealing flange

    S.S vacuum flange

    Cooling method

    air forced cooling

    Gas mixer

    One way with Float Flow Controller

    Main Power

    4.5Kw

    Working voltage

    AC220V,50Hz
