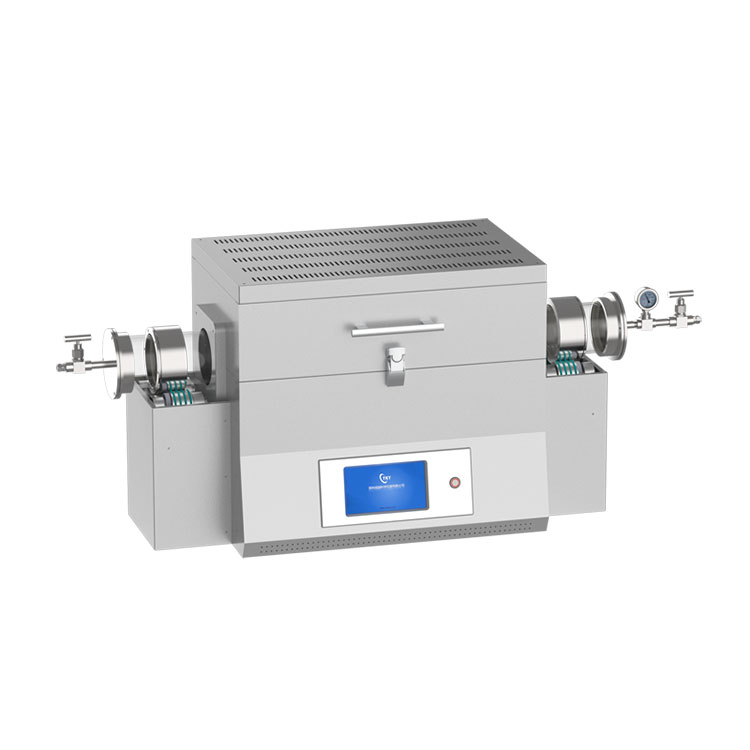

Small rotary tube furnace

    Small rotary tube furnace  is a single temperature zone rotating tube furnace, which can be used to wrap and modify powder materials by CVD method in an atmosphere protected environment

Small rotary tube furnace  is a single temperature zone rotating tube furnace, which can be used to wrap and modify powder materials by CVD method in an atmosphere protected environment. The equipment adopts friction drive, no additional fixation, and convenient disassembly of furnace tube, easy to take samples.

The rotary tube furnace is widely used for sintering inorganic compounds, the working tube can rotate 360° continuously through mechanical transmission, so that the material in the tube can be stirred and mixed to obtain uniform heating effect.

Small rotary tube furnace

Small rotary tube furnace Technical parameters:

Project

Particulars

Service voltage

AC220V50Hz

Maximum power

4.5KW

Heating zones

Single zone 440mm

Operating temperature

The highest 1200continuous   operating temperature ≤1100

Temperature control accuracy

±1

The temperature control mode

AI-PID 30 section process   curve, can store multiple.

Three temperature zone   independent control, with overheating and broken couple protection

Furnace tube material

High   purity quartz

Furnace tube size

φ100mm X 1000mm

Sealing mode

Vacuum stainless steel flange

Adjustable rotate speed

10-20rpm
