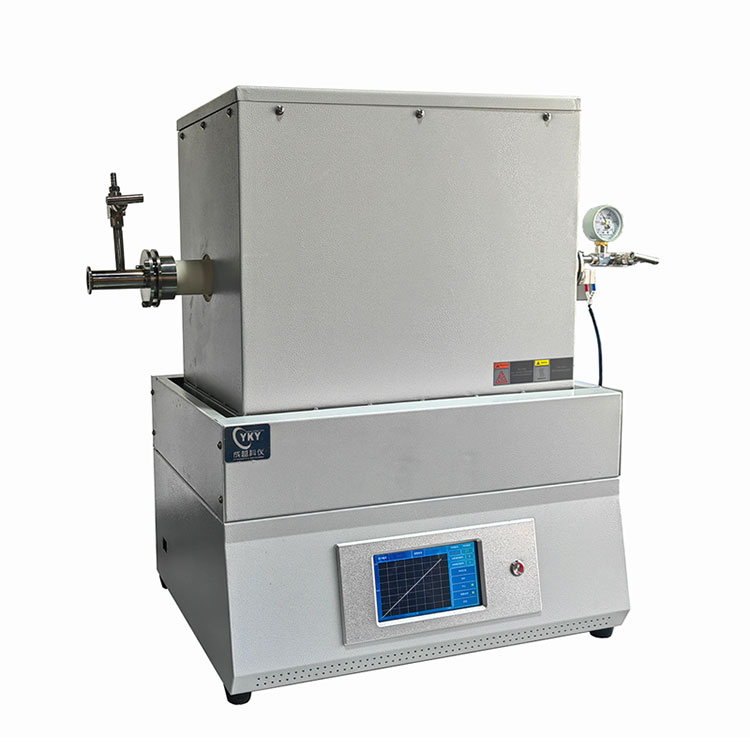

Rocking Tube Furnace with Quartz Tube & Vacuum Flange

    CY-1400X-SK is a compact rocking quartz tube furnace (1~2" optional ),which is which is designed to stir samples during heating or melting to get a more uniform reaction.  The rocking stage can set rocking frequency and time for automatically running.It is useful tool for preparation thermoelectric material and growing 2D crystals.


CY-1400X-SK is a compact rocking quartz tube furnace (1~2" optional ),which is which is designed to stir samples during heating or melting to get a more uniform reaction.  The rocking stage can set rocking frequency and time for automatically running.It is useful tool for preparation thermoelectric material and growing 2D crystals.

Rocking Tube Furnace with Quartz Tube

rocking quartz tube furnace technical parameter:

Furnace Structure

Energy saving high purity   Al2O3 fibrous insulation liner

Stainless steel shells with   adjustable height

Power

AC 220V single phase


  Working Temperature

Max. Temperature: 1400 °C    (< 1 hr)

Continuous working   temperature: 1300 °C

Max. Heating Rate: 10°C /min


  Heating Zone

Heating Zone   Length: 12" (300mm)

Constant   Temperature Zone:  3.1" (80mm)



  Temperature Controller

PID automatic control   and auto-tune function.

30 programmable segments for   precise thermal processing.

Built-in protection for the   over-heated and broken thermocouple.

Temperature Accuracy: +/-   1 °C.

S type thermocouple.



  Processing Tube

*Premier Grade alumina tube (2   pieces):  2 inch outer diameter.

Two fibrous ceramic tube blocks are   included for blocking heat radiation generated from the tube center.

2" Vacuum Flange set

Two fibrous ceramic tube blocks are   included for blocking heat radiation generated from tube center.
