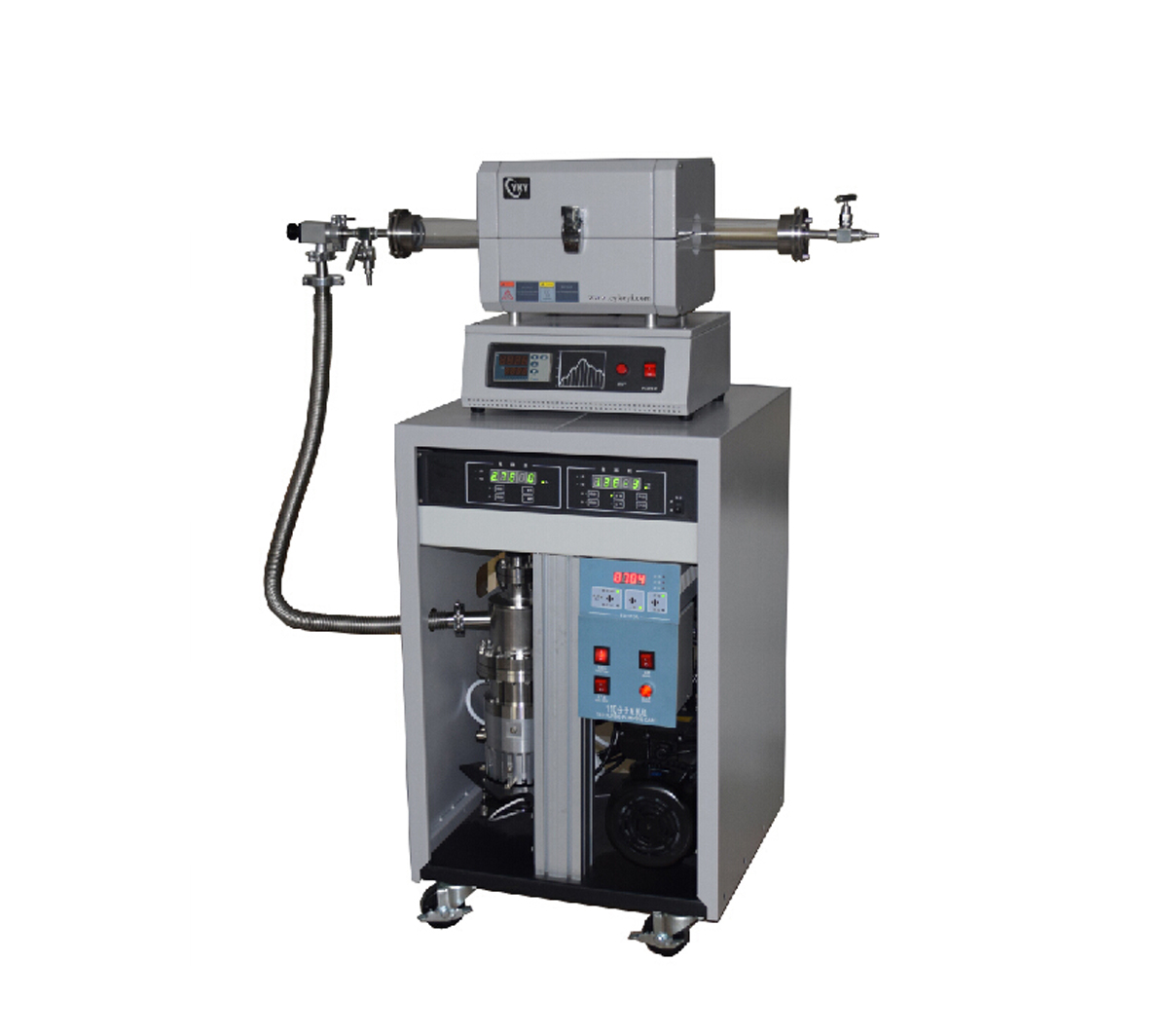

Laboratory 1200℃ High Temperature High Vacuum Tube Furnace CY-O1200S-GZK110

Laboratory 1200℃ High Temperature High Vacuum Tube Furnace CY-O1200S-GZK110

    Features

    1. high purity corundum tube, resistance high temperature 1200 ℃

    2. Programmable and PID automatic control

    3. Imported energy saving chamber material

    4. Double liner structure, good heat dissipation design, even long time heating, furnace body still can keep cooling.

    5.High vacuum system, maximum vacuum degree can reach to 6×10-6


Model

CY-O1200S-GZK110

Limiting temperature

1200℃

Working temperature

≤1150℃

Heating rate

Suggestion 0~20℃/min

Temperature zone

Single

Temperature accuracy

±1℃

Chamber size

Φ50×700(mm)

Heating element

Imported alloy heating wire

Thermal couple

K Type

Temperature control

PID automatic control via SCR power control

Heating curves

30 steps programmable

Chamber material

Imported fiber

Heating zone

200mm

Thermostatic  zone

80mm

Tube material

Quartz tube

Sealing type

stainless steel vacuum flange

Tightness

4.03*10-3Pa

Current and voltage Monitoring

Analog galvanometer

Pumping speed

>110

Working temperature

0-1050°c

 Starting time

<3 min

 Cooling type

fan cooling or water cooling

Rotate speed

 42300rpm

Pump connection

KF25 stainless steel Bellows, KF25 clamps, KF25flapper valve

Vacuum meter

mechanical vacuum gauges, or electronic vacuum gauges

Working voltage

220V 50-60Hz
