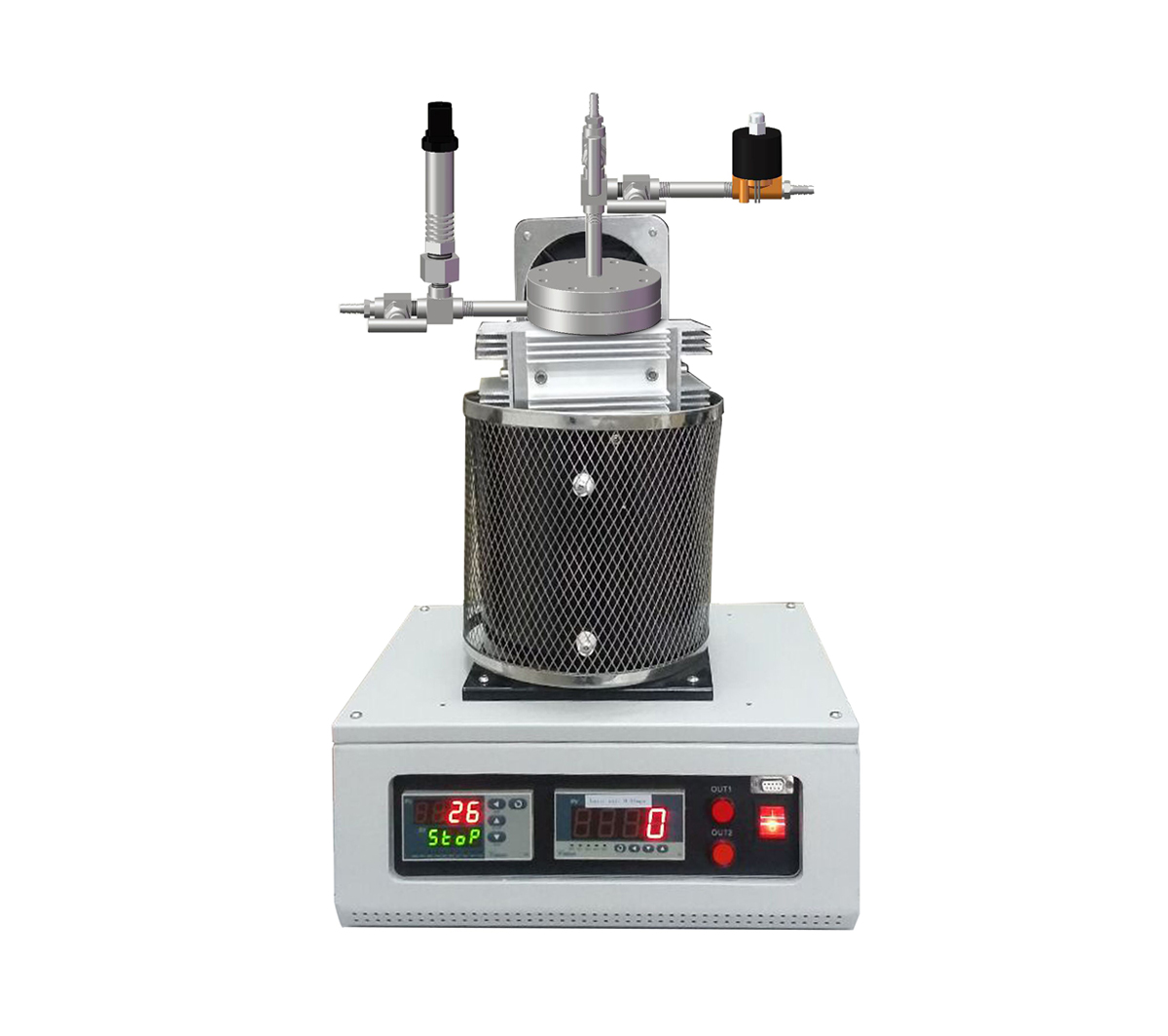

Ni-Based Super-alloy High Pressure Hydro-thermal Reactor 1100℃-CY-1100X-RC

    Application

    High Pressure Hydro-thermal Reactor is an ideal tool for preparing advanced material by the hydrothermal method, especially heat treat sample under high oxygen pressure.


Breif Introduction

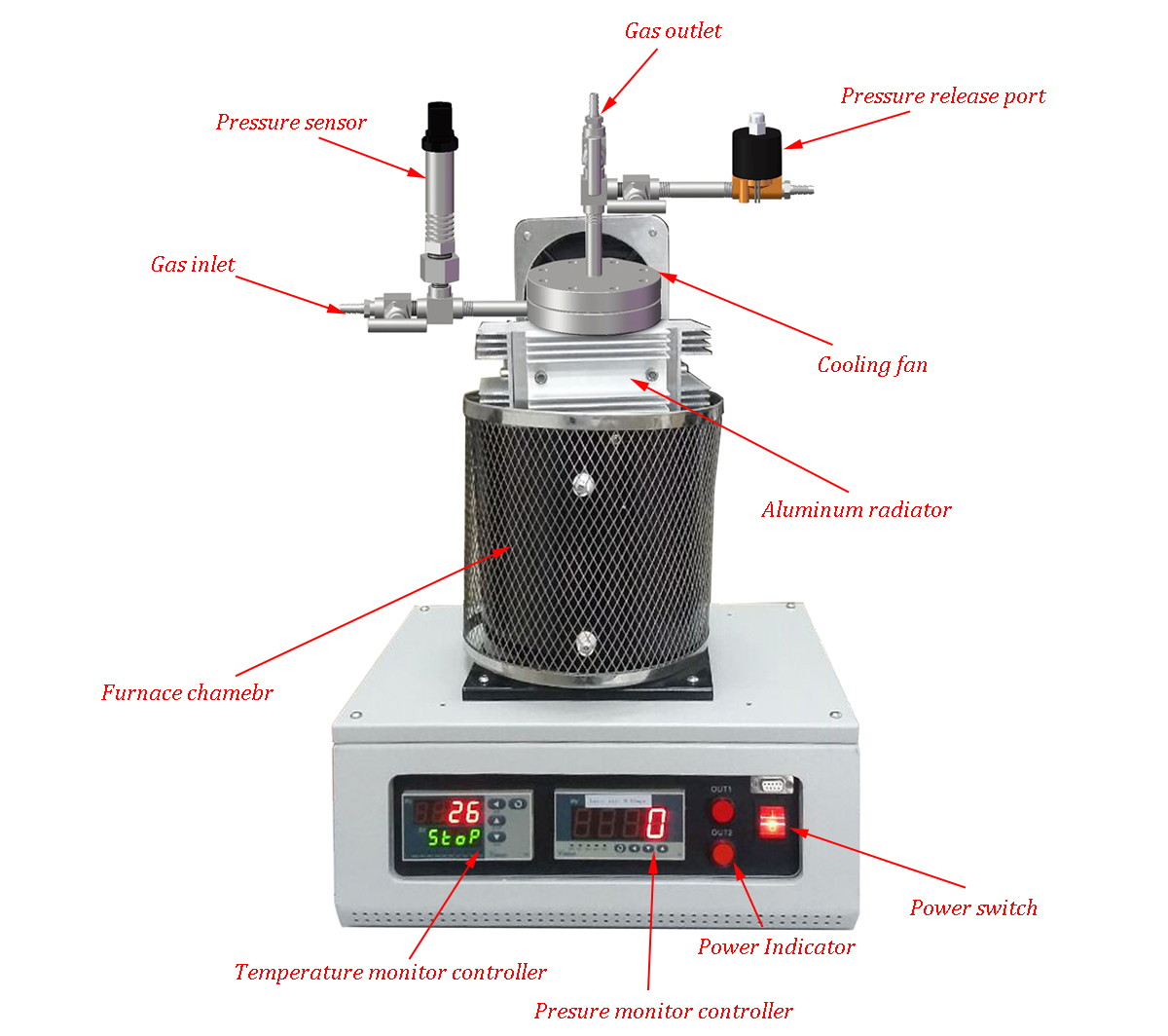

RC-Ni is reactor made of Ni-Base Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 4Mpa under oxygen or inert gas. A solenoid valve is installed on the flange allows auto-pressure relief control. Temp. Control and Pressure Real-time Monitoring controller is separately installed.


Model No.

CY-1100X-RC

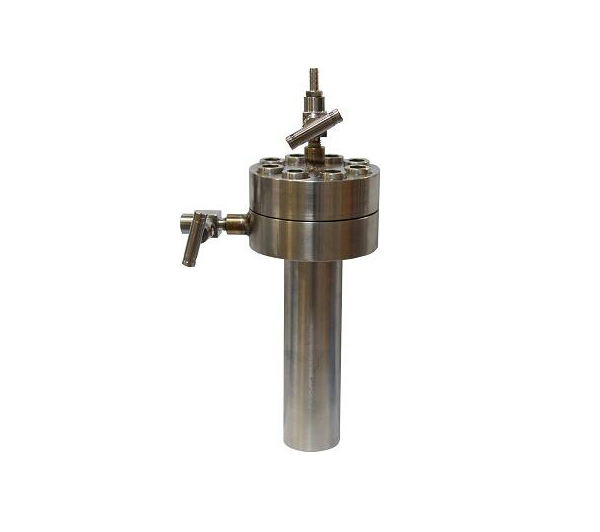

Pressure vessel

Ni-Based Superalloy, optional at 65&100m

Sealing flange

Air cold flange via aluminum heat radiator

Reactor Capacity

55 mm OD x 20 mm ID x 214 mm, 65 ml
     65mm OD x 25mm ID x 210 mm, 100 ml

Temperature Control

Heating range:RT -  1100 °C Max.
Control:PID with 30 segment programmable
Temperature accuracy: +/- 1°C
Heating rate: <=10°C/min

Thermocouple

K type

Working pressure

24 Mpa (3528 PSI)    Max. at 800°C
14 Mpa (2116 PSI)    Max. at 900°C
 7 Mpa   (1058 PSI)  Max. at 1000°C
 4 Mpa   (588 PSI)   Max. at 1100°C

Pressure Monitoring

high-pressure sensor (measurement Range up to 250 bars)

Working voltage

AC 220V, 50Hz
