1200℃ Dual Zone Multi Function Sliding Tube Furnace for MoS2 film Preparation-CY-O1200-50IIT-XS1200℃ Dual Zone Multi Function Sliding Tube Furnace for MoS2 film Preparation-CY-O1200-50IIT-XS

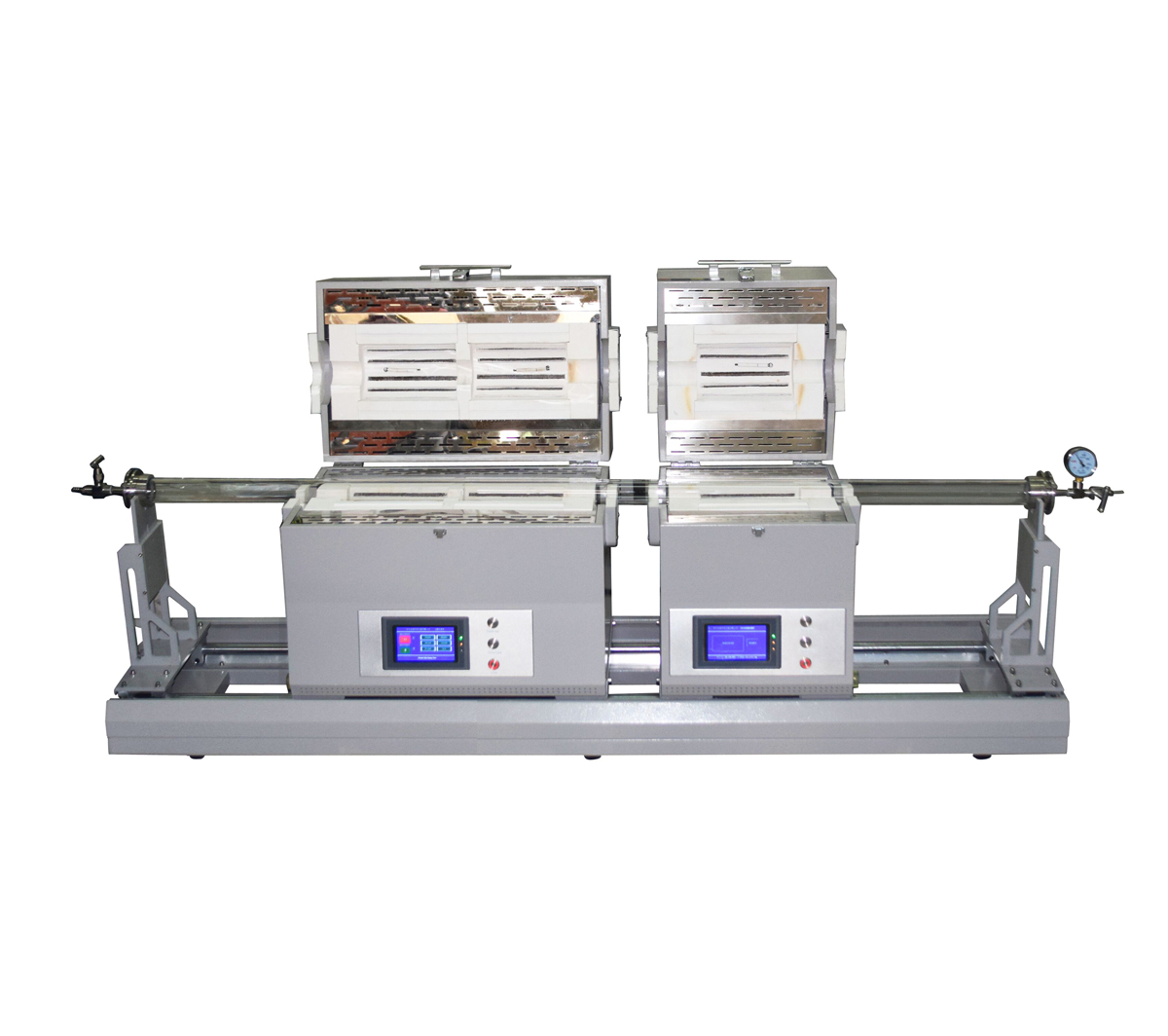

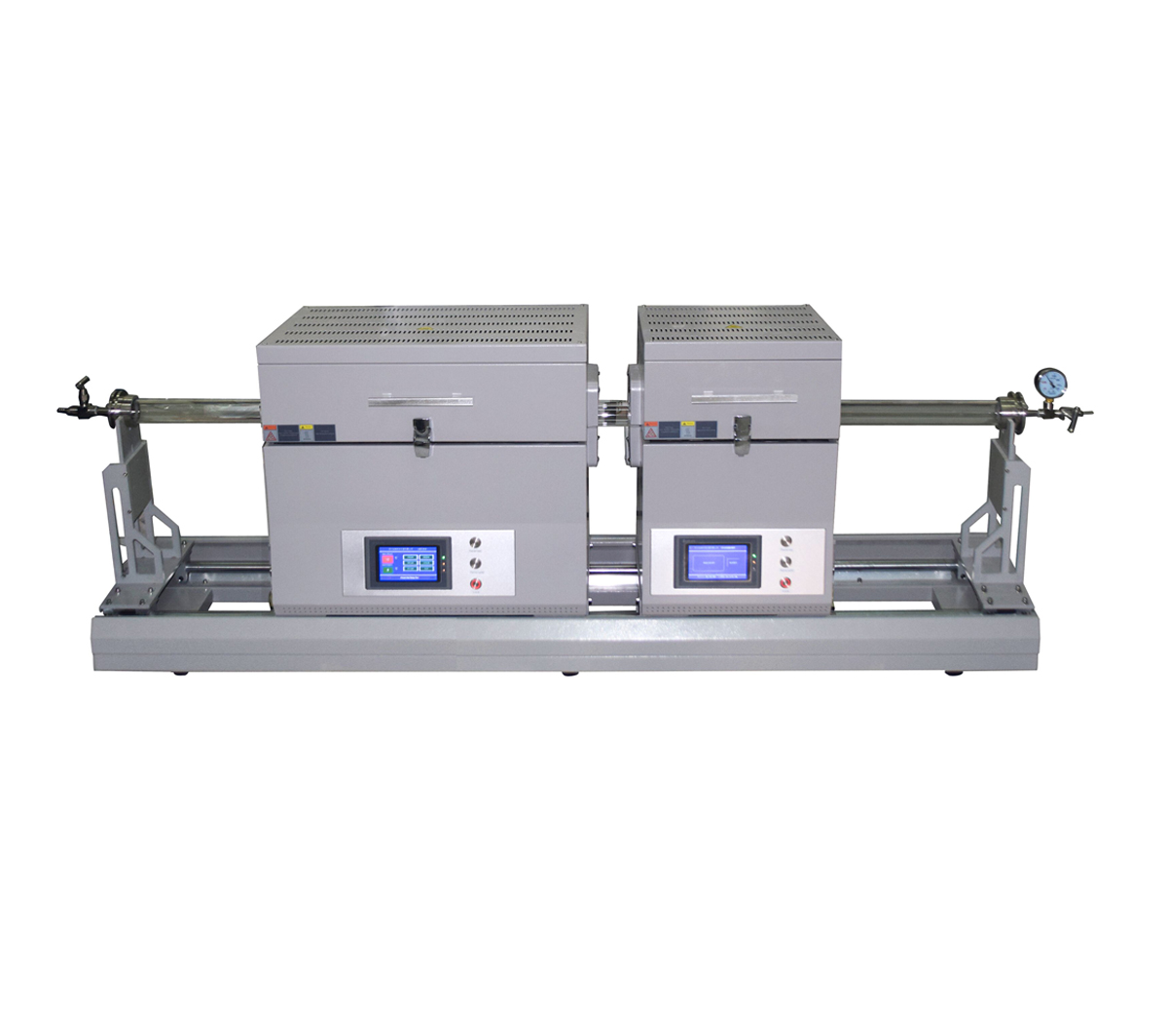

1200℃ Dual Zone Multi Function Sliding Tube Furnace for MoS2 film Preparation-CY-O1200-50IIT-XS

    Application

    1.CVD experiment

    2.Preparation of carbon nanotubes,MoS Thin Film Preparation

    3.Growth of graphene

    4.Crystalline silicon substrate coating

    5.Diffusion welding for metal materials

    6.Heat treatment under the vacuum of atmosphere surroundings


Features

1.Fast heating rate:20°c/min

2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc

3.LCD touch screen with separately temperature controller,allows each zone separately temperature control

4.30 steps programmable automatic control

5.Can connect with vacuum pump system and insert protective gas

6.Sliding design, can fast heating and cooling


Model

CY-O1200-50IIT-XS

Display

LCD touch screen

Chamber material

imported fiber

Heating element

imported alloy heating wire

Max.temperature

1200℃

Working temperature

≤1150℃

Heating rate

≤20°c/min

Heating zone

single

Thermal couple

K type

Temperature accuracy

±1℃

Temperature zone length

440+220mm

Thermostatic zone length

200+100mm

Tube Material

high purity quartz

Tube Size

50mm,60mm,80mm,100mm

Tube length

1000mm,1200mm

Flange connection

stainless steel flange

Control mode

PID automatic control via SCR power control

Working voltage

AC 220V 50-60Hz

Main power

4.5kw

Accessories

Quartz tube 1pc, flange 1set, plug 4pcs,O-rings 8pcs, glove 1pair, alumina crucible 1set, furnace hook 1pc, manual book
