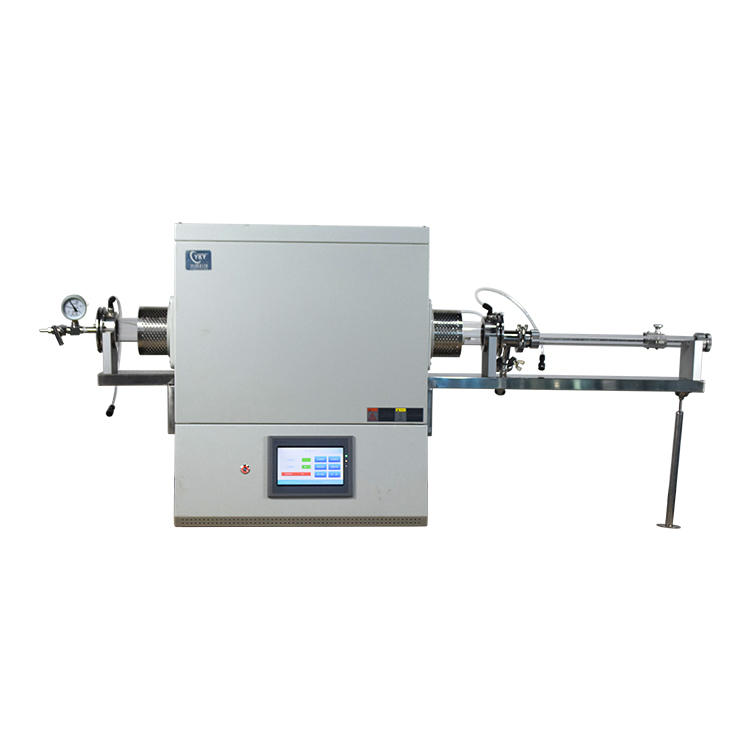

Double temperature tube furnace with magnetic push rod

    he dual temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

The dual temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

 Double temperature tube furnace with magnetic push rod

Double temperature tube furnace technical parameter:

Item

Details

Supply   voltage

AC220V,   50Hz

Maximum   power

4KW

Heating   rate

Maximum   20℃/min, recommended ≤10℃/min

Operating   temperature

Maximum   temperature≤1200℃; continuous working temperature≤1150℃

Heating   temperature zone

Dual   temperature zone 200mm+200mm

Furnace   tube parameters

Length   1000mm O.D 60mm I.D 57mm

Temperature   control accuracy

PID   temperature control accuracy ±1℃

Thermocouple

K   type thermocouple

Temperature   control method

Separate temperature control in   dual temperature zones

AI-PID 30-segment process curve,   can store multiple

With overheating and broken couple   protection

Furnace   material

High purity alumina furnace

Vacuum   interface

KF16

Air   inlet

6.35 Card sleeve connector

Magnetic   putter

Moveable length 500mm

Can shift samples in two temperature   zones

To meet customer's heat treatment   process

Using magnetic coupling connection,

Can ensure the vacuum of the   furnace tube while pushing the sample

Dimensions

1300mm X 420mm X 550mm
