CY-O1200X-RTP Tube Furnace

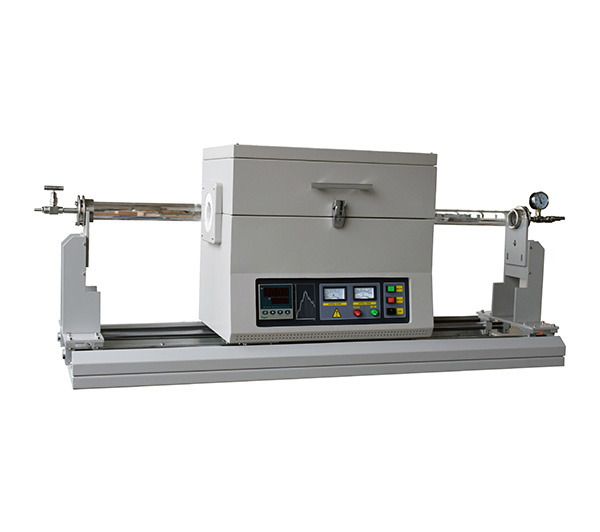

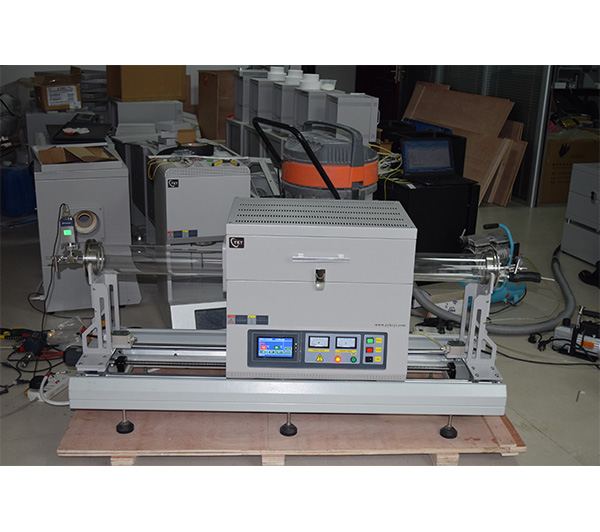

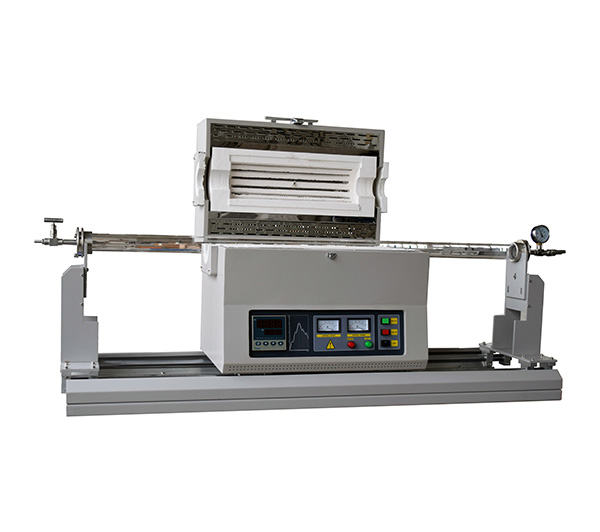

    CY-O1200X-RTP is a CE certifiable compact and rapid thermal process split tube furnace with a max. working temperature of 1200℃ and a sliding chamber with all parts . The furnace can be adopted either a 2"~4”(100mm) O.D quartz tube with a pair of stainless steel vacuum sealing flanges. The built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy. The movable chamber design can achieve fast heating and fast cooling with 100℃/min heating/cooling rate.


Application of horizontal mini tube furnace

1.CVD experiment

2.Preparation of carbon nanotubes

3.Growth of graphene

4.Crystalline silicon substrate coating

5.Diffusion welding for metal materials

6.Heat treatment under the vacuum of atmosphere surroundings


Furnace Structure1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving3.Equipped with double cooling fan, to make sure furnace body temperature low than 60℃
Model No.CY-O1200X-RTP

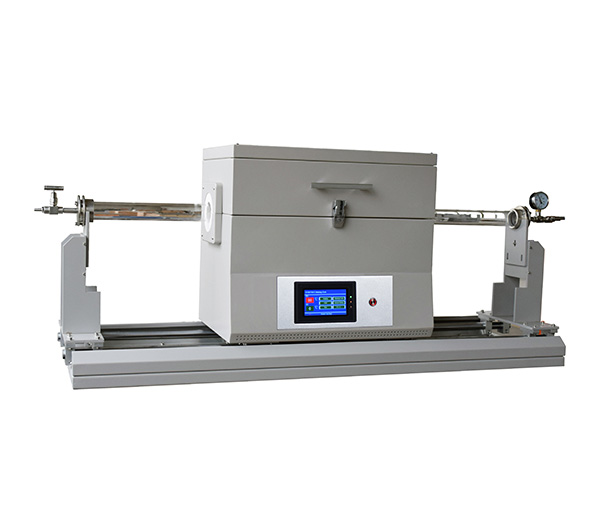

DisplayLED button controller or LCD touch panel( 5” &7” for your choice)
Limiting temperature1200℃
Working temperature≤1150℃
Heating rate0-100℃/min
Heating zone length400mm
Heating zoneSingle zone
Max outer tube diameter50mm,60mm,80mm,100mm for choice
Tube length for use1000mm,1200mm,1400mm as customized
Temperature accuracy± 1℃
Heating elementFe-Cr-Al alloy adopt by Mo
Thermal coupleK TYPE
Max Power2.5kw
Temperature control30 steps programmable PID control
Chamber materialAlumina fiber
Over-temperature alarmYes
Over-current alarmYes
Working voltage: 220V 50Hz, or as customized
