CY-O1200-50ICS Tube Furnace

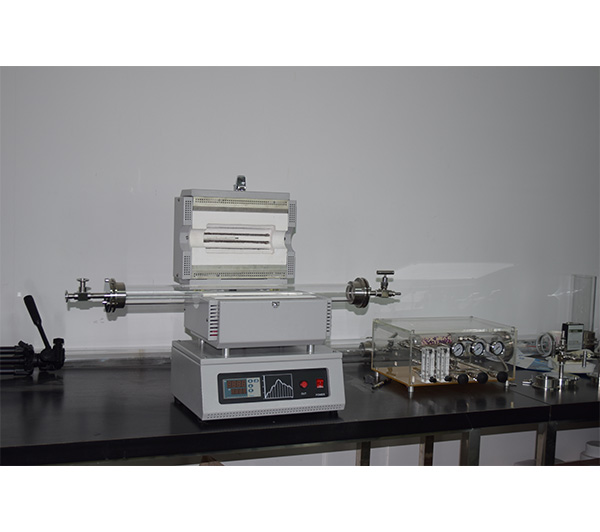

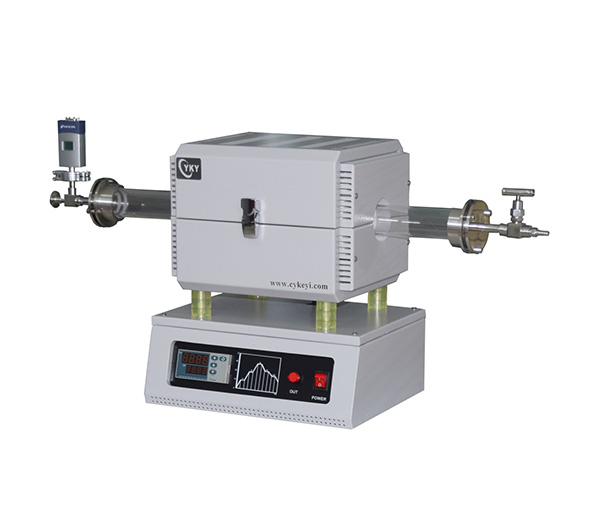

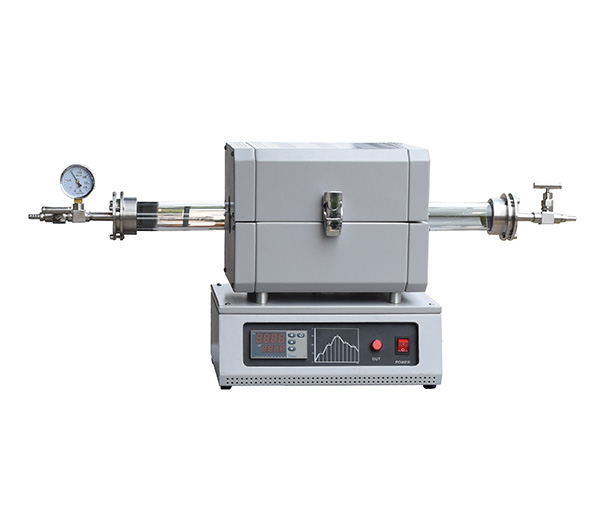

    CY-O1200-50ICS is a CE certifiable compact and energy saving (750W power consumption) split tube furnace with a max. working temperature of 1200°C and All electric parts . The furnace can be adopted either a 1", 2" or 2.36"(60mm) O.D quartz tube with a pair of stainless steel vacuum sealing flanges.

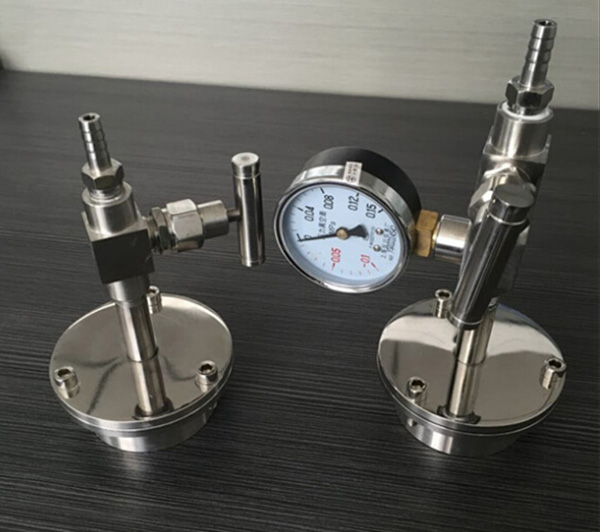

CY-O1200-50ICS is a CE certifiable compact and energy saving (750W power consumption) split tube furnace with a max. working temperature of 1200°C and All electric parts . The furnace can be adopted either a 1", 2" or 2.36"(60mm) O.D quartz tube with a pair of stainless steel vacuum sealing flanges. The 1/4" barb fitting for rubber hose connection allows heating sample in the vacuum or flowing gas. The built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy.


Application of horizontal mini tube furnace

1.CVD experiment

2.Preparation of carbon nanotubes

3.Growth of graphene

4.Crystalline silicon substrate coating

5.Diffusion welding for metal materials

6.Heat treatment under the vacuum of atmosphere surroundings

Furnace Structure1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving
Model No.CY-O1200-50ICS
DisplayLED button controller
Limiting temperature1200℃
Working temperature≤1150℃
Heating rate0-20℃/min
Heating zone length200mm
Heating zoneSingle zone
Max outer tube diameter50mm
Tube length for use450mm
Temperature accuracy± 1℃
Heating elementFe-Cr-Al alloy adopt by Mo
Thermal coupleK TYPE
Max Power750w
Temperature control30 steps programmable PID control
Chamber materialAlumina fiber
Over-temperature alarmYes
Over-current alarmYes
Working voltage: 220V 50Hz, or as customized
