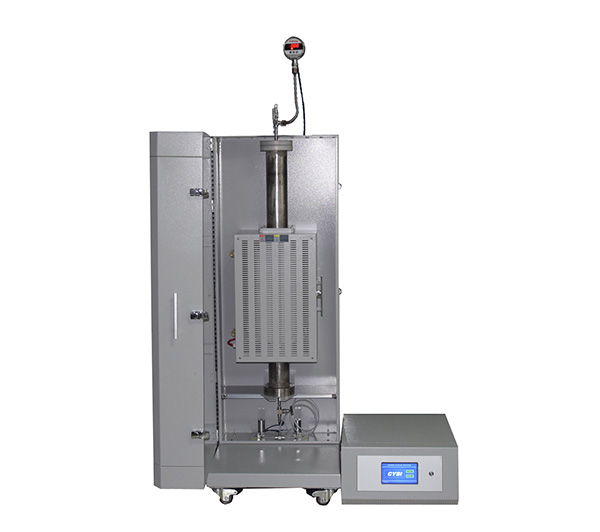

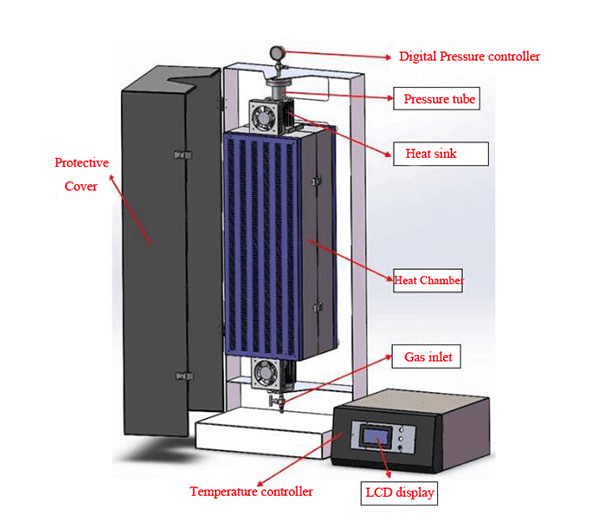

| High temperature high pressure vertical tube furnace |
| Tube Material | SS310S Stainless Steel alloy
O.D80mm x I.D70(±2) mmO.D60mm x I.D 50(±2) mm | Ni based super-alloy GH747OD 60mm x ID 52 mm |
| Copper gasket | O.D80mm tube:Gasket
99 O.D x 82 I.D x 2.2mm
O.D 60mm tube:
82 O.D x 63.6 I.D x 2.2mm | For 60mm O.D tube:
82 O.D x 63.6 I.D x 2.2mm |
| Working Pressure vs. Working Temperature | 577 PSI max at ≤500°C511 PSI max at ≤600°C428 PSI max at ≤700°C363 PSI max. at ≤800°C185 PSI max at ≤900°CAttention: Never heat up above 900°C | 725 PSI (5Mpa) max. at ≤800°C
435 PSI (3Mpa) max. at ≤900°C217 PSI (1.5Mpa) max. at ≤1000°C145 PSI (1Mpa) max. at 1100°C
Attention: Never heat up above 1100°C |
| Pressure Measurement Range | 0~15Mpa | 0~15Mpa |
| Max. Heating Temperature | 900°C | 1100°C |
| Working Gases | Inert gas & Hydrogen | Inert gas, hydrogen and oxygen |
| Heating Temperature | 800°C continuous | 1100°C max.for < 1hr
1000C for continuous |
| Heating Rate | ≤30°C/min | ≤20°C/min |
| Heating Element | Fe-Cr-Al Alloy doped by Mo | Fe-Cr-Al Alloy doped by Mo |
| Heating Zone | Total length: 440mm Single zone
Constant temp. zone: 150mm ±1°C, or as customized |
| Temperature Control | PID control method with over-temp protection
Temperature stability: ±1°C |
| Thermocouple | Omega 3mm OD K Type with high temperature tolerance (220°C) connector |
| Positive Pressure Sensor | Installed in high pressure flange |
| PC control | Yes |
| Pressure Alarm System | Upper limit and lower limit control method
Alarm strob and warning whistle |
| Voltage | AC 220V 50/60Hz, or as customized |
| Power | 2.5KW(20A breaker required) |
| Warranty | One year limited manufacturer warranty with lifetime support (Consumable parts such as processing tubes, o-rings and heating element are not covered by the warranty). |
