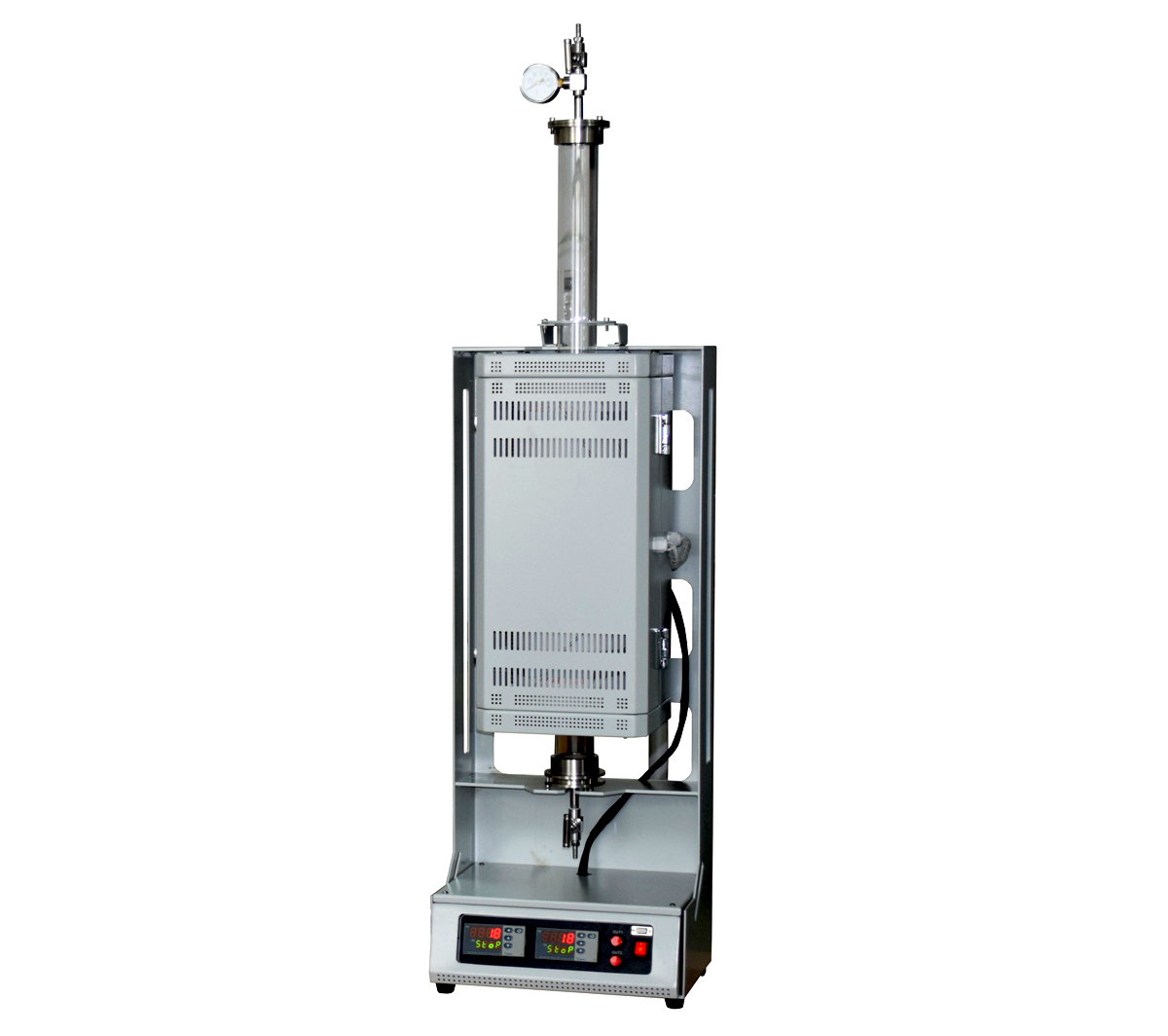

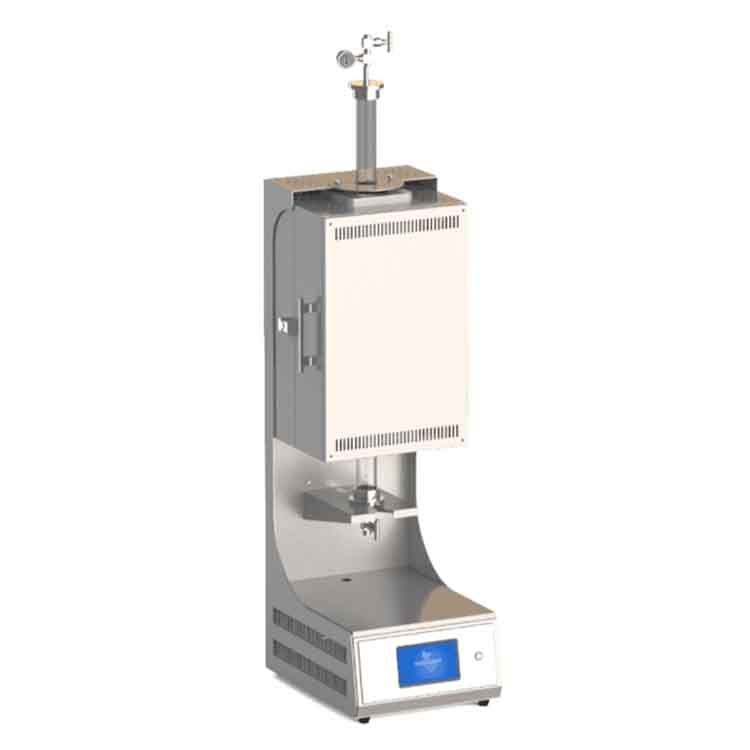

Vertical tube furnace CY-O1200-50I-T-V

Vertical tube furnace CY-O1200-50I-T-V

    Vertical tube furnace uses high-quality electric furnace wire as heating element, the maximum heating temperature is 1200℃, and the diameter of the quartz furnace tube is 50 mm. If the customer needs, can contact the technician to customize the larger diameter furnace tube.

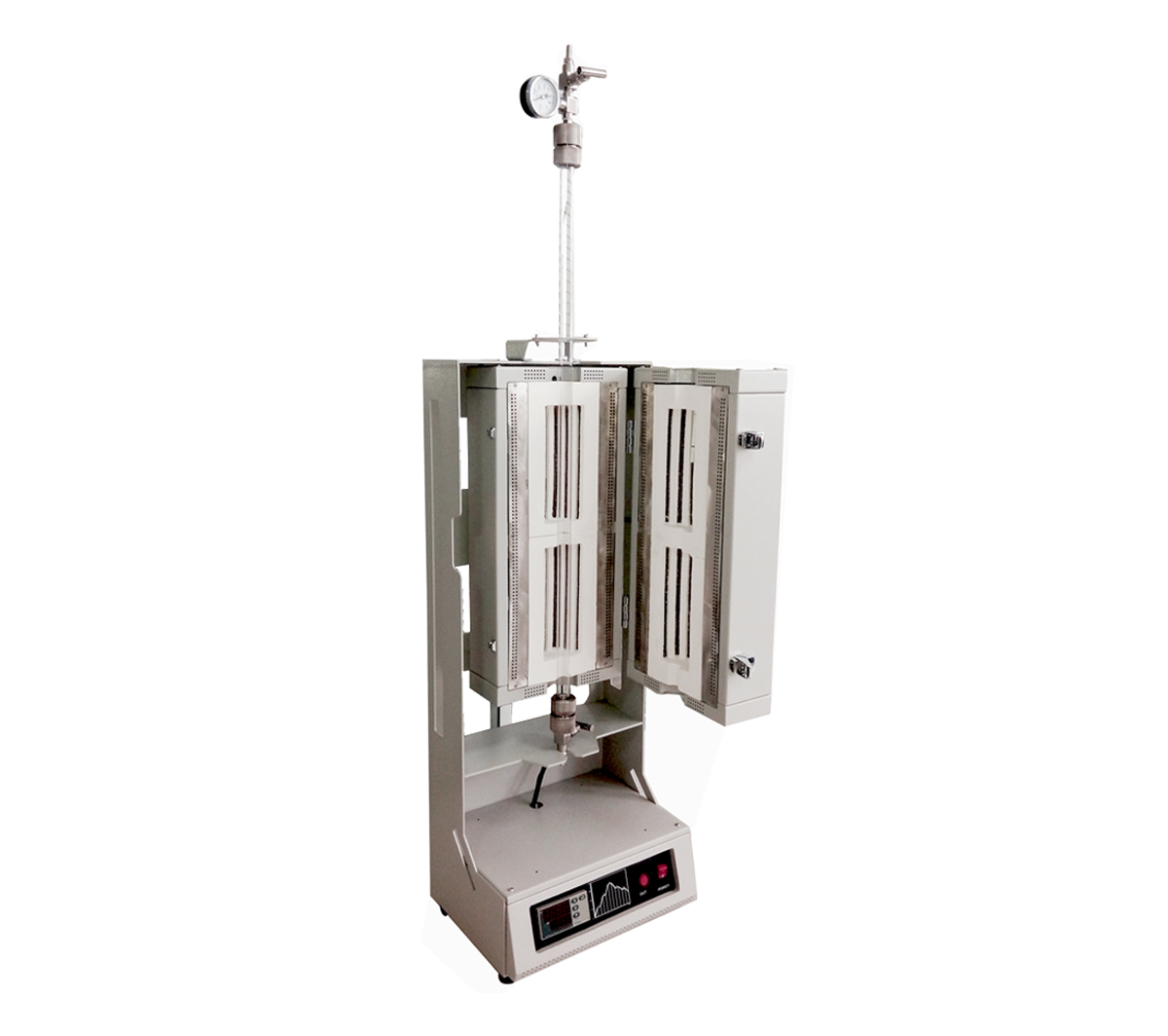

The default heating zone of vertical tube furnace is one zone. Multi-heating zone can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The lower flange of the furnace tube has a vacuum interface, and the upper flange has a 1/4 inch gas inlet port and a pressure gauge, which can be used to control the atmosphere in the furnace tube. The furnace chamber adopts open design for easy installation of the furnace tube. At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

Vertical tube furnace application range:

This tube furnace is mainly used for: various CVD experiments, atmosphere sintering, high temperature treatment; especially suitable for the preparation of oxides, sulfides.

Vertical tube furnace technical parameters:

Model

CY-O1200-50I-T-V

Furnace tube material

High purity quartz

Furnace tube diameter

50mm

Furnace tube length

1000mm

Furnace chamber length

440mm

Heating zone length

400mm

Constant temperature zone

200mm

Operating temperature

01100

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Display mode

LCD touch screen

Sealing method

304 stainless steel vacuum flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector)

Vacuum

4.4E-3Pa

Power supply

AC:220V 50/60Hz

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
