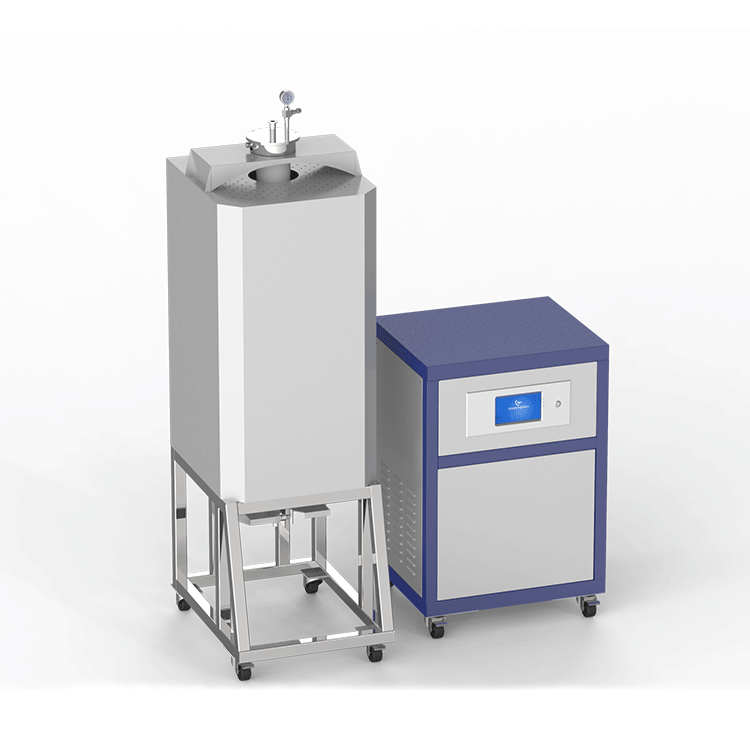

Vertical fluidized bed tube furnace CY-T1700-100I-T-V

Vertical fluidized bed tube furnace CY-T1700-100I-T-V

    Vertical fluidized bed tube furnace is a fluidized bed vertical CVD system specially designed for powder experiments. The furnace tube is a high-purity corundum tube.

The CY-T1700-100I-TV is a fluidized bed vertical CVD system specially designed for powder experiments. The tube is a high-purity corundum tube with a microporous ceramic plate embedded inside the furnace tube. The powder can be placed on the microporous ceramic plate, gas is introduced from the lower end of the furnace tube, and the sample powder was suspended in the heating zone through a microporous ceramic plate to carry out an experiment. The instrument adopts advanced PID intelligent temperature control, and the temperature control accuracy is ±1℃. The control interface is a 7-inch high-definition true color LCD touch screen, graphic display, visual operation interface, easy to operate and intuitive to use, can greatly improve your experimental efficiency.

The application field is powder experiment.

Vertical fluidized bed tube furnace technical parameters:

Model

CY-T1700-100I-T-V

Furnace tube material

High purity alumina

Furnace tube diameter

100mm

Furnace tube length

1200mm

Furnace chamber length

900mm

Heating zone length

600mm

Constant temperature zone

300mm

Operating temperature

≤1700℃

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Display mode

LCD touch screen

Sealing method

304 stainless steel vacuum flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector); KF16 vacuum port

Vacuum

4.4E-3Pa

Power supply

AC:220V 50/60Hz

Rated power

10KW
