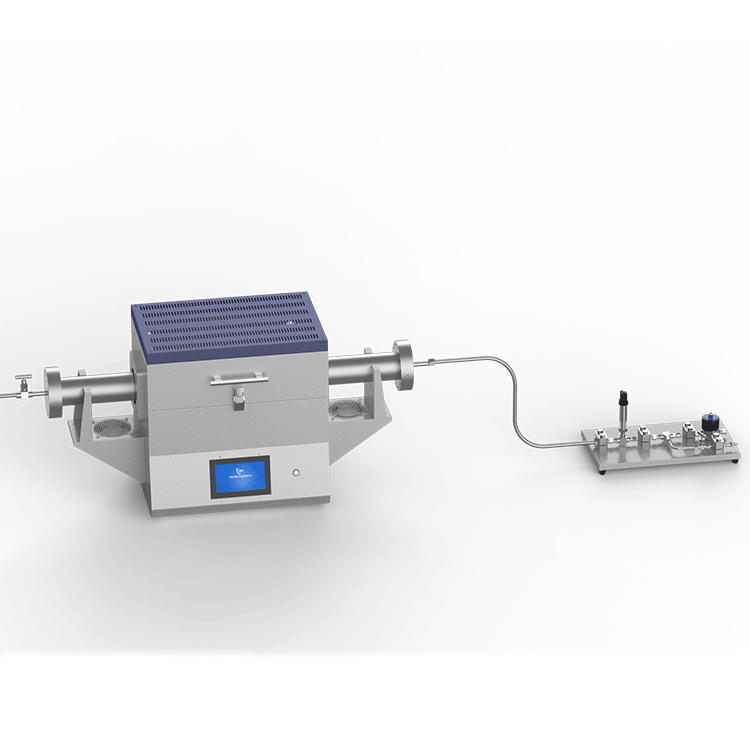

High temperature and high pressure tube furnace CY-HS1200-85I-T

High temperature and high pressure tube furnace CY-HS1200-85I-T

    CY-HS1200-85I-T high temperature and high pressure tube furnace mainly consists of three parts: heating system, high temperature and high pressure resistant furnace tube and pressure measurement and control system.

High temperature and high pressure tube furnace can realize three functions of automatic stamping, overpressure release and automatic temperature control. It is equipped with process software, which can realize the whole process of data collection during the sintering process, and provide the most authentic and reliable basis for the analysis and research of experimental data.

High temperature and high pressure tube furnace application range:

The device can be widely used in high temperature and high pressure processing of nano materials, high temperature and high pressure sintering of special function ceramics, and the high temperature and high pressure modulation method is used to change the thermal property and electrical conductivity of the materials.

High temperature and high pressure tube furnace technical parameters:

Item

Detail

Model

CY-HS1200-85I-T

Supply voltage

AC220V/110V, 50Hz/60Hz

Working temperature

01100

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Furnace tube diameter

85mm

Furnace tube length

1000mm

Furnace tube material

Ultra-high temperature alloy

Sealing method

Pressure resistant CF flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector)

Vacuum

4.4E-3Pa

Pressure measurement

Semiconductor pressure gauge

Overvoltage protection

Safety deflation valve

Pressure regulation

Manual electric free switching

Heating zone

Single heating zone 440mm long

Work pressure

≤20Mpa  @800℃

≤12Mpa  @900℃

≤6Mpa  @1000℃

≤4Mpa  @1100

Display method

LCD touch screen

Working gas

Non-corrosive gases such as nitrogen, argon, and oxygen
