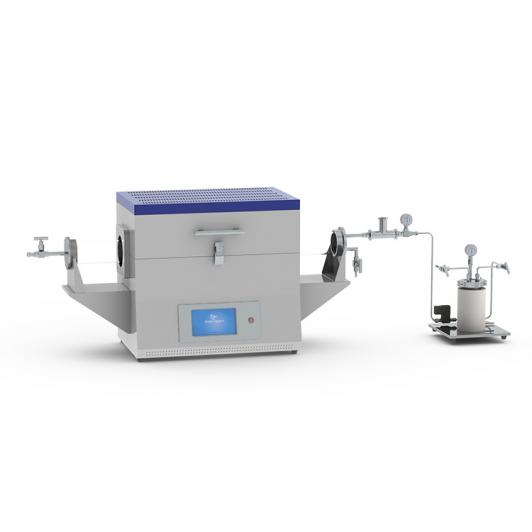

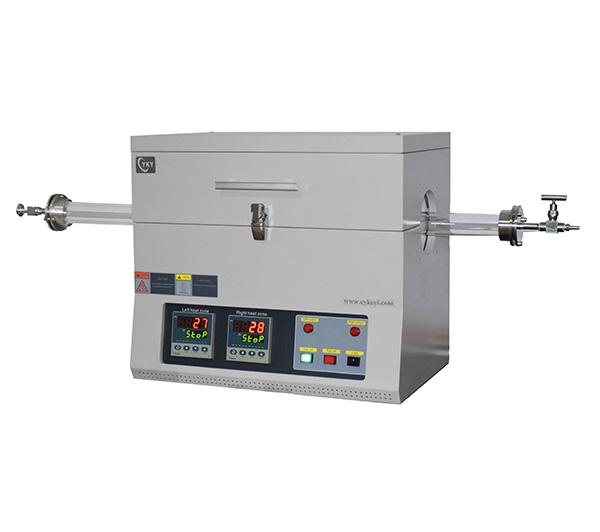

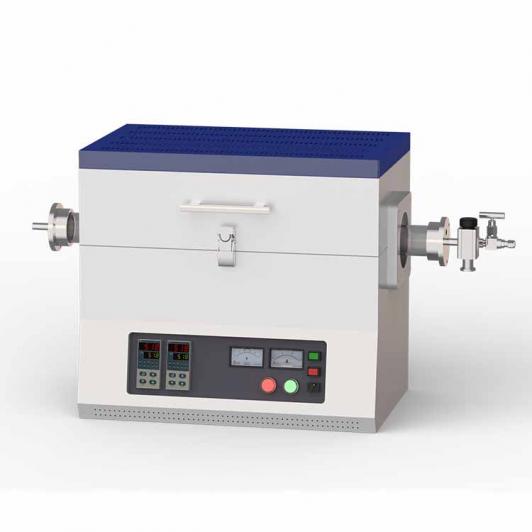

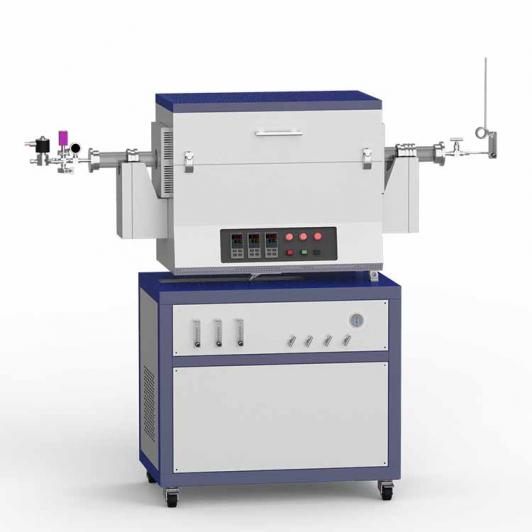

Two Zone 1200°C Max. 80 mm OD Tube Furnace with Liquid Evaporator, Humidity & H2 Detectors and Shutoff Valve

    CY-1200X-80HG is a two heating zone tube furnace with two-channel gas flow control, liquid evaporator, humidity monitor, as well as hydrogen gas leaking detector. Such as system is designed for hot corrosion research or CVD processing with hydrogen gas under controlled humidity condition. One of the two CVD gas line through the liquid evaporator assists with the delivery of liquid vapor.  Precision digital humidity monitor can measure water content with accuracy +/-1.5 % FS. The included hydrogen monitor will shut off the hydrogen gas inlet valve immediately upon detecting leaks of hydrogen gas.

Description:

CY-1200X-80HG is a two heating zone tube furnace with two-channel gas flow control, liquid evaporator, humidity monitor, as well as hydrogen gas leaking detector. Such as system is designed for hot corrosion research or CVD processing with hydrogen gas under controlled humidity condition. One of the two CVD gas line through the liquid evaporator assists with the delivery of liquid vapor.  Precision digital humidity monitor can measure water content with accuracy +/-1.5 % FS. The included hydrogen monitor will shut off the hydrogen gas inlet valve immediately upon detecting leaks of hydrogen gas.


Technical Parameters:

Furnace Construction



Double shell casing with cooling fans

High purity alumina fibrous insulation for max. energy saving

Split cover enables faster cooling and easy operation

Hydrogen detector and solenoid valve are included for safety measures

The liquid evaporator is heatable with a precision temperature controller to produce a mixing of hydrogen and liquid vapor.

The hydrogen gas furnace must be placed under a fume hood which is not included.

Power

4 KW Max

Input Voltage

AC 208 - 240V single phase (30A air breaker is required)

Heating Elements

FeCr27Al7MO2

Heating Zone Length

Two heating zones: 8" (200 mm) length of each zone, 16" (400 mm) total Constant temperature zone: 150 mm within +/- 1 when two zones are set at same temperature

Temperature Uniformity

+/- 1°C in heating Zone

Continuous Working Temperature

1100°C

Recommended Heating Rate

10°C /min

Processing Tube and Flanges

High purity quartz tube:  Φ 80 (OD) × Φ 74 (ID) ×1000 L, mm

Vacuum flange: SS304 flanges are included to achieve vacuum up to 10^ - 5 torr by turbopump.

Temperature Controllers

Two MET certified digital temperature controllers with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built in PID Auto-Tune function with overheating & broken thermocouple protection.

Over temperature protection and alarm allows for operation without attendant(s).

+/- 1 ºC temperature accuracy.

RS485 port is installed in front of panel for PC connection

PC control module and software is included for computerized temperature control.

Float Flow Meter

Two flowmeters 50-500ml/min are built on the gas inlets.

One flowmeter is for Hydrogen delivery while the other is mainly for CVD gas with liquid vapor

The extra flowmeter is available upon request at extra cost.

You may consider using our mass flow gas station 1 - 9 channel for more accurate gas control

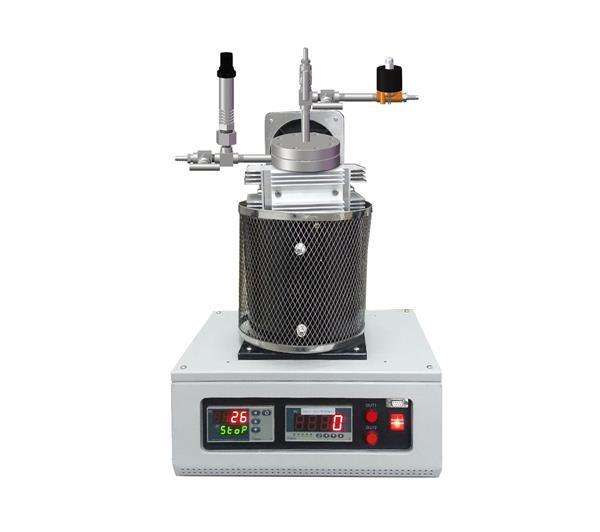

Bubbler/ Liquid Evaporator

Such a liquid evaporator is suitable for liquid sources and chemical precursors delivery in CVD processes.

One stainless steel container is included with capacity of 600 ml ( 80OD x 200H, mm)

The container is inserted into a small cylindrical heater with thermal insulation

The container can be heated up to 250°C and controlled by a precision programmable temperature controller.

Two SS needle valves and one pressure gauge are built on the container

Humidity Monitor

    ( included)

One precision humidity monitor is connected to the processing tube flange with KF25 adaptor

Measurement range :  0 - 100 % RH with 1.5 % FS accuracy, or -60º ~ +60º DP with +/-0.3º accuracy.

Tips: You may adjust the evaporator's (water inside) temperature and H2 gas flow rate to achieve desired humidity level.

Hydrogen Detector System
 (included)

Working Temperature Range:   40ºF to  + 149ºF (- 40 ºC to + 65ºC)

Alarm Point: H2 Limited Explosive Line 10 % (10 % LEL).  Once detecting H2 gas beyond the point, it will shut off the inlet valve to the H2 automatically.

Warranty

One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty).

Furnace Dimensions

1400 × 600 × 1200 mm

Product Net Weight

100 Kg

Warning

Tube furnaces with alumina tubes are designed for using under vacuum and low pressure < 0.12 atm (absolute pressure)

The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube

Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.

Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
