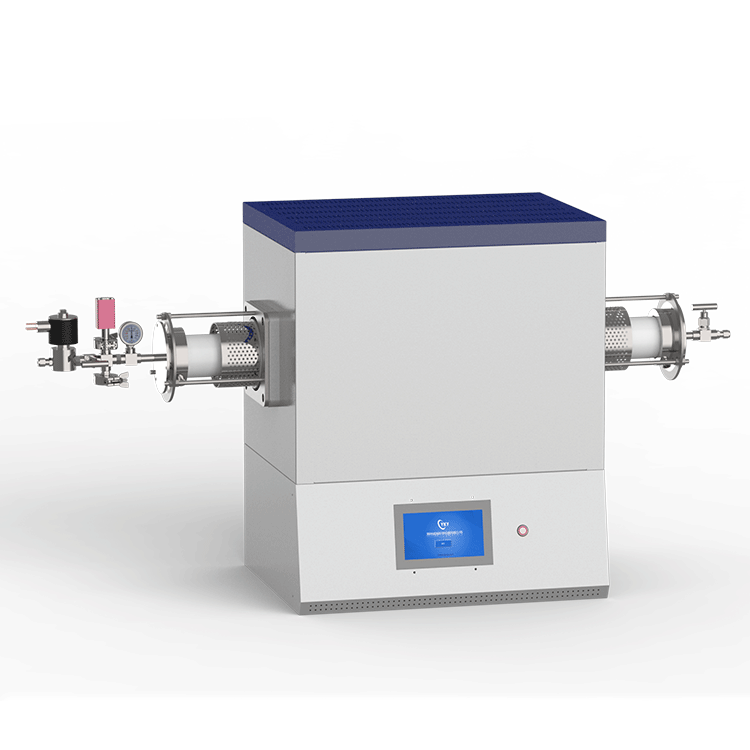

1700℃ tube furnace CY-T1700-50I-T

1700℃ tube furnace CY-T1700-50I-T

    1700℃ tube furnace uses high-quality carbon silicon rod as heating element, the maximum heating temperature is 1700℃, and the diameter of the quartz furnace tube is 50 mm. it is made of high purity alumina, and the high temperature resistance is superior. If the customer needs, can contact the technician to customize the larger diameter furnace tube.

The default heating zone of 1700℃ tube furnace is one zone. Multi-heating zone can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The furnace adopts closed design, the furnace tube is inserted from the side, and the use is safe and stable, which can effectively prevent the operator from being burned. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

1700℃ tube furnace application range:

Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

1700℃ tube furnace technical parameters:

Model

CY-T1700-50I-T

Furnace tube material

High purity alumina

Furnace tube diameter

50mm

Furnace tube length

1000mm

Furnace chamber length

350mm

Heating zone length

300mm

Constant temperature zone

150mm

Operating temperature

01700

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Display mode

LCD touch screen

Sealing method

304 stainless steel vacuum flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector)

Vacuum

4.4E-3Pa

Power supply

AC:220V 50/60Hz
