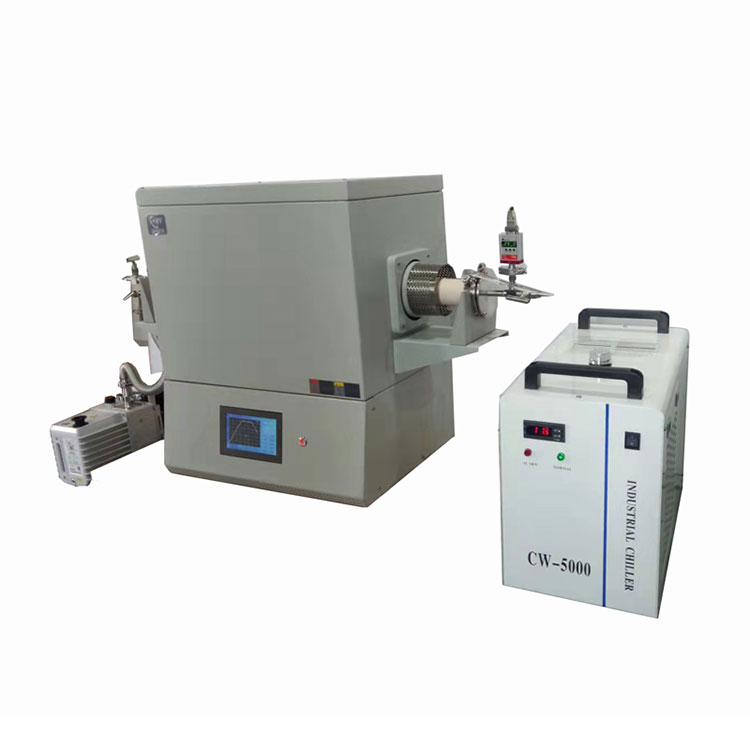

1400℃ tube furnace with cooling unit

    1400 degree tube furnace uses high-quality carbon silicon rod as heating element, the maximum heating temperature is 1400℃, and the diameter of the alumina furnace tube is 60 mm. it is made of high purity alumina, and the high temperature resistance is superior. If the customer needs, can contact the technician to customize the larger diameter furnace tube

1400 degree tube furnace uses high-quality carbon silicon rod as heating element, the maximum heating temperature is 1400℃, and the diameter of the alumina furnace tube is 60 mm. it is made of high purity alumina, and the high temperature resistance is superior. If the customer needs, can contact the technician to customize the larger diameter furnace tube.

1400 degree tube furnace structure and composition:

The default heating zone of 1400℃ tube furnace is one zone. Multi-heating zone can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The furnace adopts closed design, the furnace tube is inserted from the side, and the use is safe and stable, which can effectively prevent the operator from being burned. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

1400℃ tube furnace with cooling unit

1400 degree tube furnace scope of application:

1400 degree tube furnace are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

1400 degree tube furnace technical parameter:

Model

CY-O1400-Φ60-200-T

Furnace tube material

High purity alumina

Furnace tube diameter

60mm

Furnace tube length

1000mm

Heating zone length

200mm

Operating temperature

01400

Heating element

SiC rod

Thermocouple

S type

Temperature control accuracy

±1

Power

4KW

Temperature control mode

30 or 50 segment program temperature control

Display mode

LCD touch screen

Sealing method

304 stainless steel water cooled vacuum flange

Water chiller

Water flow rate:10liters/minute

Flange interface

1/4" cutting sleeve joint(Ø8 pagoda joint)

Vacuum

4.4E-3Pa

Pirani Regulation Pressure Gauge

Yes

Power supply

AC:220V 50/60Hz
