Laboratory 1400℃ high temperature horizontal tube furnace CY-T1400-50IC

Laboratory 1400℃ high temperature horizontal tube furnace CY-T1400-50IC

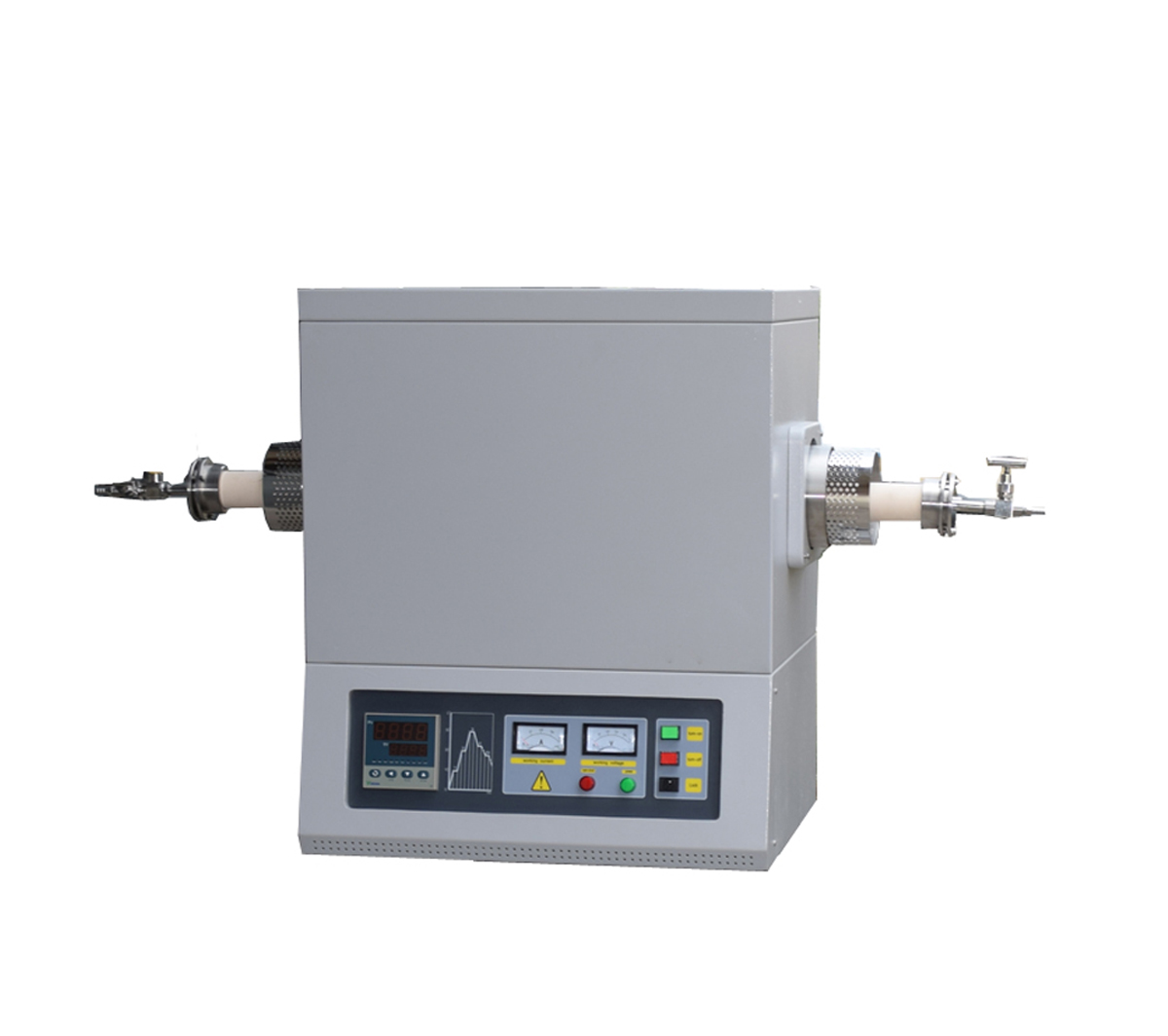

    CY-T1400-50IT is a compact 50mm (2") tube furnace with SiC Rods heating elements. The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with the accuracy of +/-1℃. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions up to 1400℃.

Model No.

CY-T1400-50IT

Display

LED Digital Panel

Limiting temperature

1400℃

Working temperature

≤1300℃

Heating rate

0-20℃/min

Heating Zone length

300mm, constant temperature zone:150mm

Quartz tube diameter

OD50*1000mm, 60/80/100/120mm for option

Temperature accuracy

± 1℃

Heating element

SiC rod

Thermal couple

S TYPE

Cooling method

Double layer structure with fan cooling

Temperature control

30 steps programmable PID control

Chamber material

Alumina fiber

Over-temperature alarm

Yes

Over-current alarm

Yes

Sealing flange

S.S vacuum flange

Cooling method

air forced cooling

Main Power

2.5Kw

Working voltage

AC220V,50Hz
