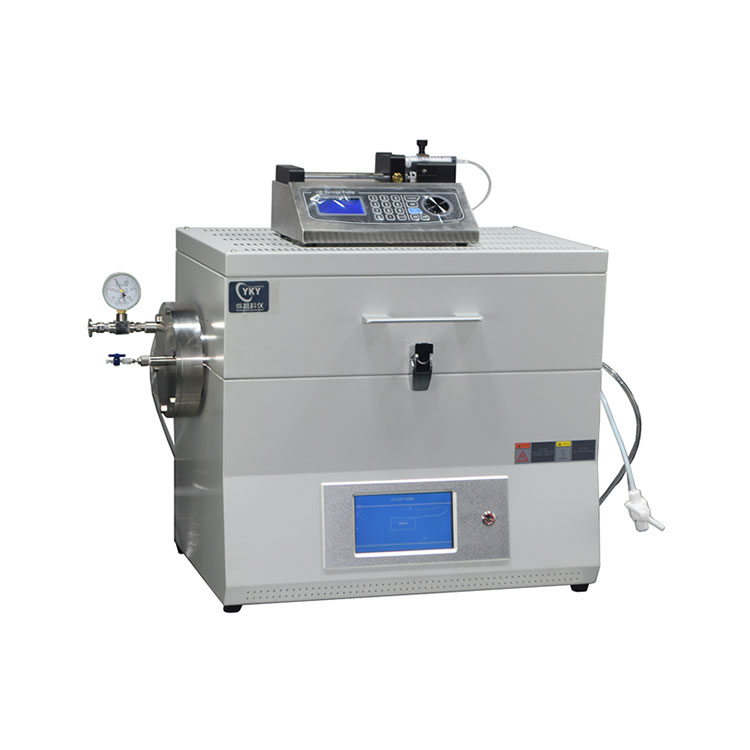

1200℃ Three temperature zone tube furnace

    1200℃ Three temperature zone tube furnace is a customized three temperature zone tube furnace; the highest temperature in the furnace can reach 1200℃, using imported resistance wire heating, and temperature field uniform temperature control precision. The tubes are made of Model 316 stainless steel, with custom flanges on both sides and water cooling components to meet the needs of customers to fill the tubes with liquid and place special monitoring equipment.

1200℃ Three temperature zone tube furnace is a customized three temperature zone tube furnace; the highest temperature in the furnace can reach 1200℃, using imported resistance wire heating, and temperature field uniform temperature control precision. The tubes are made of Model 316 stainless steel, with custom flanges on both sides and water cooling components to meet the needs of customers to fill the tubes with liquid and place special monitoring equipment.

1200℃ Three temperature zone tube furnace

The device adopts touch screen control, easy to operate, intuitive and easy to learn, very suitable for laboratory purchase.

Three temperature zone tube furnace Technical parameters:

Items

Particulars

Product mode

CY-O400-120IIIT

Supply voltage

AC220V50Hz

Total power

4KW

Operating temperature

≤400

Heating speed

Recommended 10/min

Heating element

Electric furnace heating wire

Type of thermocouple

K-type thermocouple

The furnace pipe parameters

Measurement: OD 120mm×ID   102mm×670mm L

Material: SS316

 Temperature zone length

150mm+150mm+150mm

The furnace pipe flange

Left flange: stainless steel   water-cooled vacuum sealing flange with liquid inlet and vacuum air outlet   and mechanical vacuum gauge

Right flange: stainless   steel water-cooled vacuum sealed flange with PTFE inlet pipe.

Temperature control



1)           PID   automatic control of heating rate, cooling rate and holding time

2)           PID   control over temperature protection and short couple protection

3)           Over   temperature protection in the alarm function so that the equipment can run   under the condition of unattended

4)           Temperature   accuracy in ±1   (that is, the difference between the displayed temperature and the actual   temperature)

Syringe

Capacity    2.5ml~60ml

Flow range 2.779μl/min~72.24ml/min

Water-cooled chiller

10L/min circulating water   cooling
