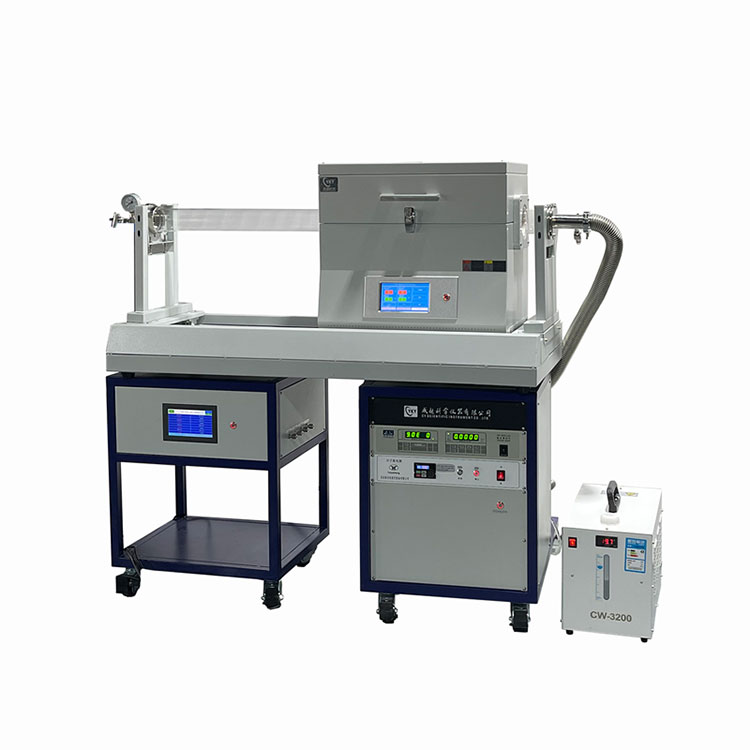

1200 degree slide Tube Furnace with four gas mixer,vacuum pump for CNT Preparation

    The 1200℃rapid annealing furnace is essentially a set of slideway furnace, which realizes the functions of heating and annealing

The 1200℃rapid annealing furnace is essentially a set of slideway furnace, which realizes the functions of heating and annealing. The intake end is equipped with a high-precision three-way mass flow meter to accurately control the atmosphere in the tube;At the same time, the equipment is equipped with a turbo molecular pump, which can quickly achieve a high vacuum environment and maximize the interference of the air atmosphere to the experiment.

1200 degree slide Tube Furnace with four gas mixer,vacuum pump for CNT Preparation

The slideway furnace is composed of 1200℃standard single heating zone tube furnace and high precision slide rail.Tube furnace adopts resistance wire heating, combined with polycrystalline fiber furnace chamber, which has excellent temperature rise and thermal insulation performance. The slide rails are tightly matched, slide smoothly, and easy to operate. At the same time, it adopts full-color LCD touch screen operation, which is simple and intuitive, easy to use, can simplify the experimental operation and save the test time

slide Tube Furnace technical Parameters:

Model

CY-OTF-1200X-80-IIII-4CV-SL   CVD furnace

Tube furnace

Display    LED

Max.   Temperature    1200℃

Continuous   Working Temp.     ≤1100℃

Heating Rate     0~20℃/min

Temperature   Zone    three

Accuracy  ±1℃

Sapphire Tube   dia80mm

Length2000mm

Temperature   Control        PID automatic control via   SCR power control

Heating curves 30 steps programmable

Heating   zone:400-400-400mm

Power       220V, 50 Hz, single phase

Furnace   structure

High purity   Al2O3 insulation chamber guarantees excellent temperature uniformity.

Cooling fans   are installed at the bottom of the furnace to ensure efficient ventilation.

Sliding flange   assembly are made of stainless steel.

Heating   element

Resistance wire

Thermal couple

K Type(two   pieces,one for temperature oven, and the other must be in the hold in order   to measure the real temperature of the sample being prepared)

Working   voltage

AC110-480V   50/60 Hz

Temperature   control

PID automatic   control via SCR power control

Chamber   material

Alumina Fiber

Flange connection

Stainless steel water-cooled   flange

Sliding Rail

2000mm long sliding rail is   installed with one end flange to make loading & unload sample easy.

Mass Flow meters



Working Temp.: 5~45 ºC

Max. Pressure: 3x106 Pa

Accuracy: ±1.5% FS

Liner: ±0.5-1.5%F.S.

Duplicate accuracy: ±0.2%F.S.

Controlling Range:

Controller 1:   0~100 SCCM

Controller   2: 1~200 SCCM

Controller 3: 1~500SCCM

Controller 4: 1~500SCCM
