13.56MHz High Power RF Power Supply for PECVD

    13.56MHz High Power RF Power Supply has a wide range of applications in many fields. The following are some of the main application areas:Including magnetron sputtering, plasma enhanced chemical vapor deposition, plasma polymerization and other technologies, RF power is used to excite gas to form plasma, thereby promoting the deposition of thin films

Power supply with high reliability for plasma vacuum system

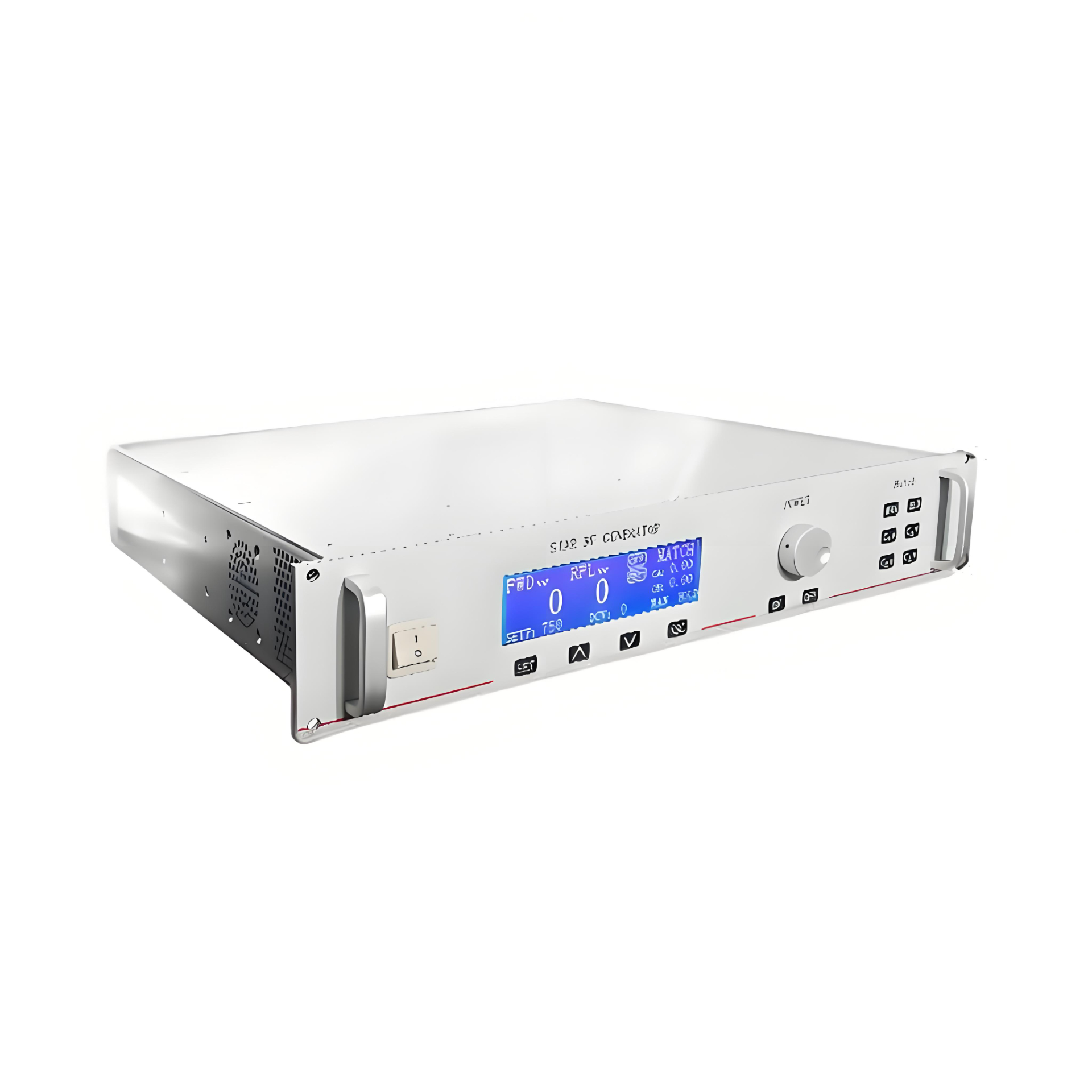

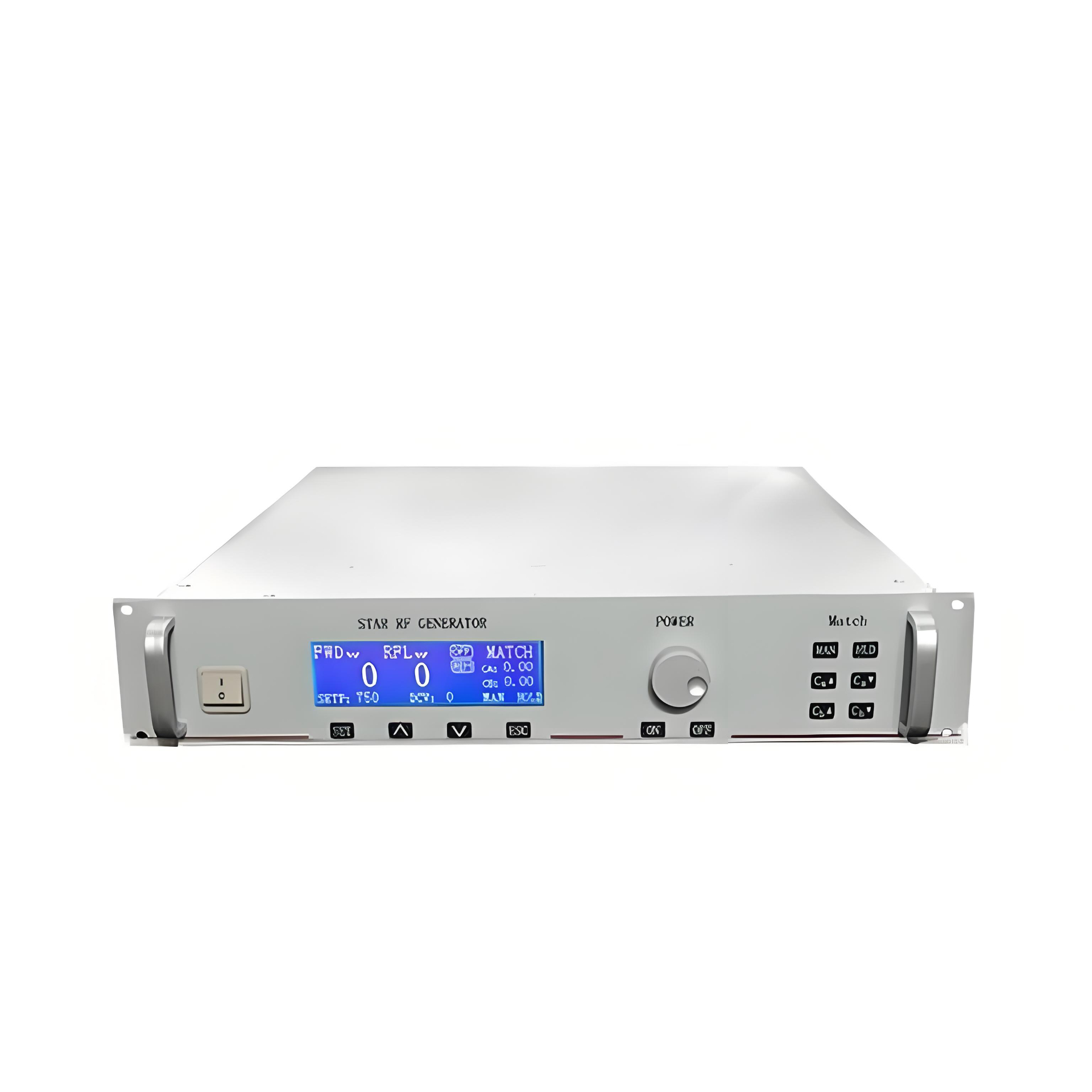

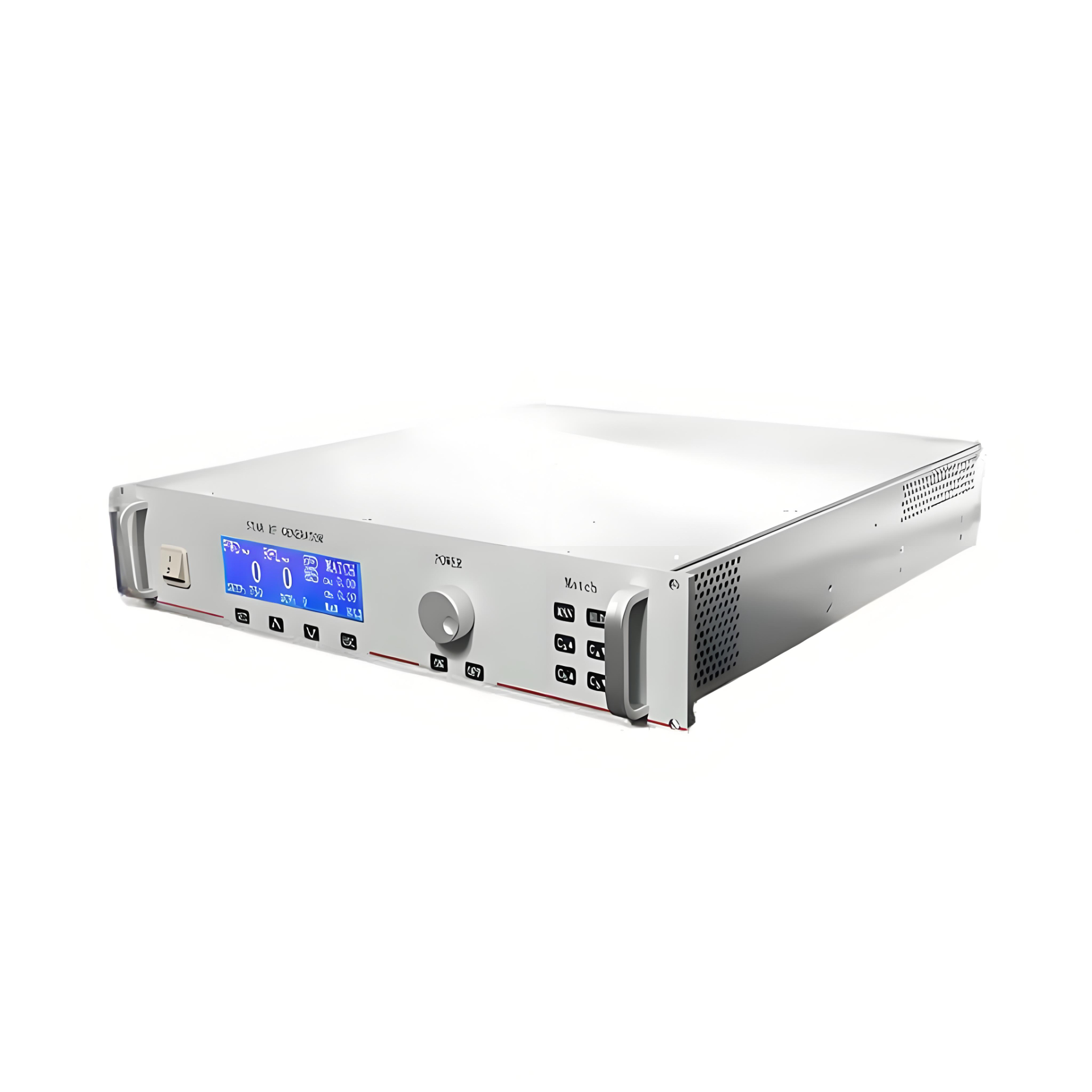

The power output of this power supply can reach 2500W to 5000W, frequency 13.56MHz, standard sine wave. This series of power supplies has the advantages of high power output accuracy, stability and repeatability. Its solid-state design makes the product low-priced and highly reliable. The power supply uses a large-screen LCD display: set power, incident power, reflected power, status and other parameters, and can also display the operating parameters of the matcher and operate the RF matcher through the power supply panel.

Application field:

This power supply can be used as a power supply for RF-driven plasma systems, which can be used in the semiconductor industry. Application objects include: etching, RIE, parallel plate, ICP, magnetron sputtering, CVD, PVD, plasma cleaning and PECVD systems.

RF Power Supply Technical Parameters:

Product specifications

2500W

4000W

5000W

Output power

0-2500W

0-4000W

0-5000W

Working stability

≤±0.5%

Output frequency

13.56MHz

Frequency signal

Standard sine wave

Input voltage

AC380V(AC220V)

AC380V 3PH

Input current

8A(16A)

20A

Output impedance

50Ω

Standing wave ratio

>3.0

Cooling method

Water Cooling

Communication port

RS232/RS485

Standard Modbus

Analog control interface

DB15

Output interface

N/UHF

N  or 7/16

Chassis size

440x445x130mm

Standard 3U

440x500x130mm

Standard 3U

Panel size

480x133mm

Weight

25kg

28kg
