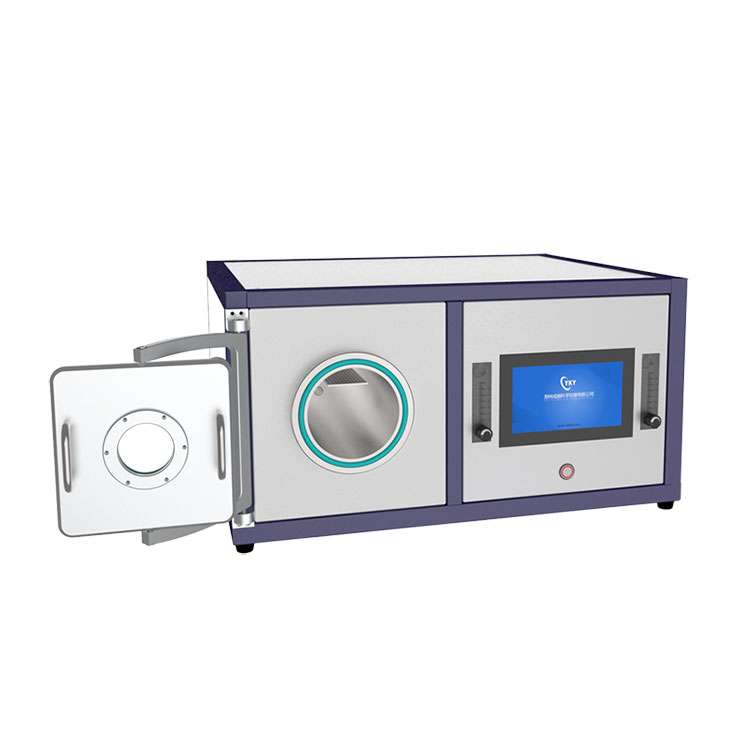

40kHz Plasma cleaner

    40khz Plasma cleaner, is one new high-tech technology, the use of plasma to achieve conventional cleaning methods cannot achieve the effect.  Plasma is a state of matter, also known as the fourth state of matter, and does not belong to the common solid, liquid and gas states.  Apply enough energy to the gas to dissociate it into a plasma state.  The "active" components of plasma include: ions, electrons, atoms, active groups, excited nuclides (metastable state), photons, etc.  Plasma cleaner is to use the properties of these active components to treat the sample surface, so as to achieve cleaning, coating and other purposes

40khz Plasma cleaner, is one new high-tech technology, the use of plasma to achieve conventional cleaning methods cannot achieve the effect.  Plasma is a state of matter, also known as the fourth state of matter, and does not belong to the common solid, liquid and gas states.  Apply enough energy to the gas to dissociate it into a plasma state.  The "active" components of plasma include: ions, electrons, atoms, active groups, excited nuclides (metastable state), photons, etc.  Plasma cleaner is to use the properties of these active components to treat the sample surface, so as to achieve cleaning, coating and other purposes。

40kHz Plasma cleaner

40kHz Plasma cleaner technical parameter:

Main part

Index name

Parameter index

Cleaning warehouse

Material

Stainless steel

Size

Diameter 112mm;length 270mm

High-frequency power

Character

The 40k high frequency power supply is self-independently   developed with reliable structure and strong performance.

Advantage

Can run normally for a long   time
Simple and   flexible operation

High power efficiency, less heat

RF power

0~500W continuously adjustable

Signal frequency

40kHz

Power stability

±0.1%

Cooling mode

Forced air cooling

Gas measurement

Measurement element

Float flow-meter

Gas way

Two channels

A channel range

10100ml

B channel range

16160ml

Vacuum to obtain

Vacuum measurement

Resistance vacuum gauge

Vacuum extraction

Bipolar vane pump

Pumping rate

At 50Hz:1.1L/s; At 60Hz:1.3L/s.

Vacuum range

1Pa10000Pa

Ultimate vacuum

1Pa

Motor noise

56dB

Pipe joint

Air inlet:KF16;air outlet:KF16.

Connect pipes

KF16 vacuum bellows

Motor power

400W

Others

Power supply

AC220V 50/60Hz

Total power

800W

Operating temperature

-10 -- 40

Operating vacuum

40Pa

Total size

600mmX500mmX350mm

Total weight

50kgpackage included
