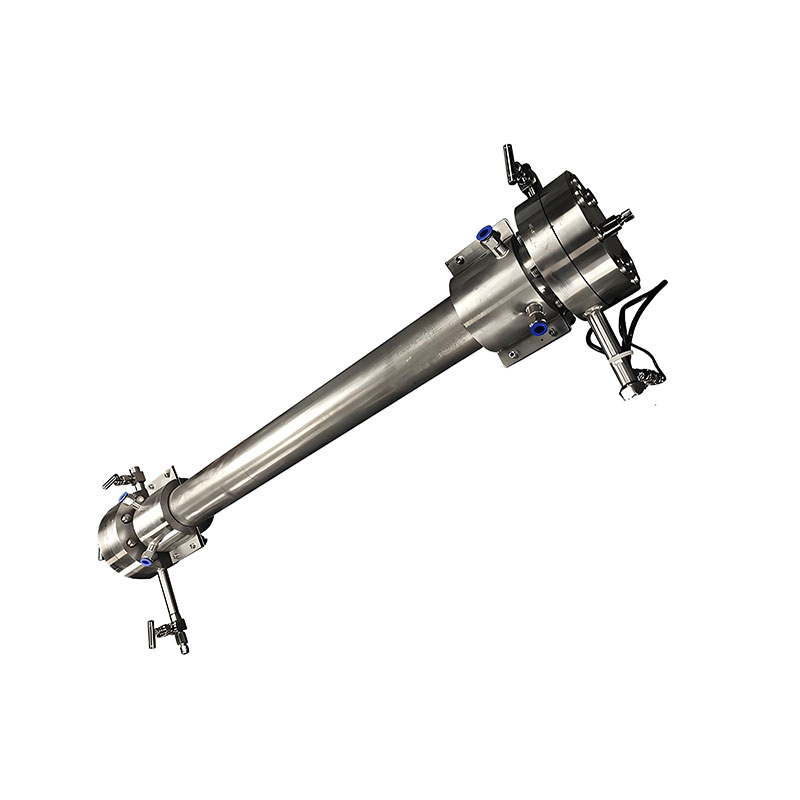

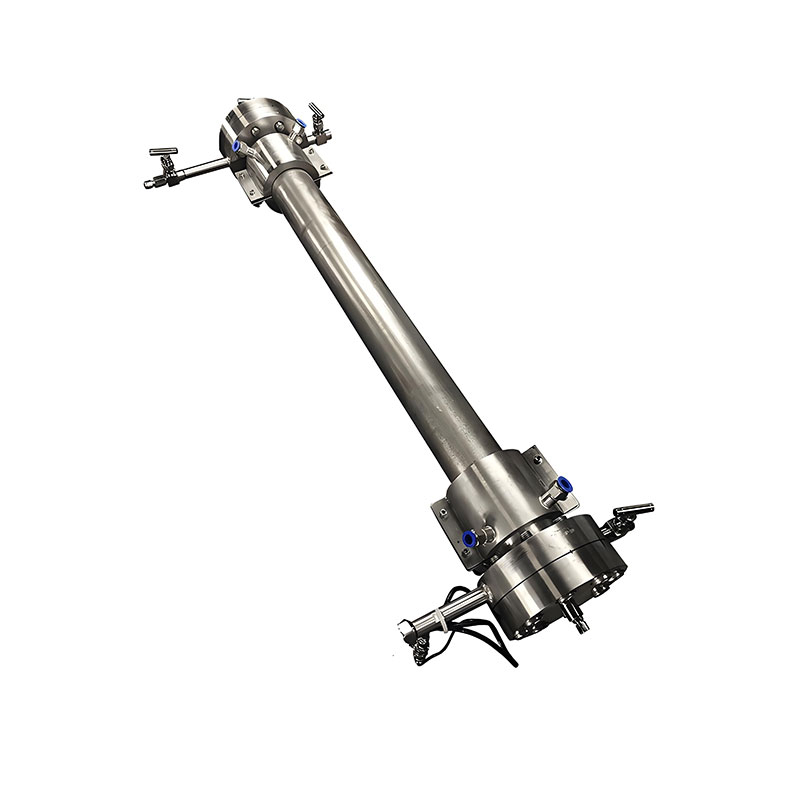

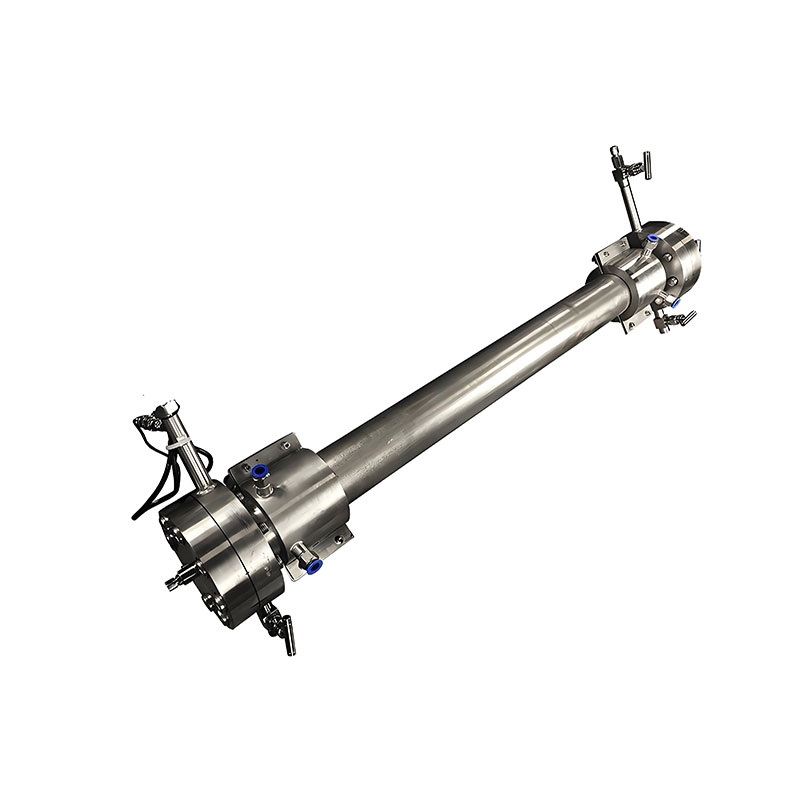

Nickel-Based Alloy Steel Furnace Tube

    The nickel-based high-temperature alloy tubular container can be used in ultra-high oxidizing and inert gas environments at temperatures up to 1100°C for processing special compounds.

The nickel-based high-temperature alloy tubular container can be used in ultra-high oxidizing and inert gas environments at temperatures up to 1100°C for processing special compounds. It is a consumable component for high-temperature high-pressure tube furnaces and HIP (Hot Isostatic Pressing) furnaces, and is an ideal container for low-cost research of new materials.



Purchase Information:

If you are interested in our nickel-based high-temperature high-pressure furnace tube, please contact us for more information and a quote.
Phone: +86 18516380382
Email: Jimmy@cysitech.com
Contact Person: Jimmy Hao
WeChat: +86 18516380382



Technical Parameters:

Product Name

Nickel-Based Alloy Steel Furnace Tube

Outer Diameter

25mm

50mm

60mm

80mm

90mm

100mm

Inner Diameter

20mm

42mm

52mm

70mm

80mm

90mm

Tube Length

Customizable according to customer   requirements

Maximum Working Temperature

1100C

Maximum Working Pressure/Temperature

5 MPa--800°C,

3 MPa--900°C,

1.5 MPa--1000°C,

1 MPa--1100°C

Maximum Vacuum Degree

10-6Torr(CF sealing flange)

Optional Accessories

1. Sealing flange

2. Torque wrench to avoid over-tightening   of flange bolts

3. High-pressure relief valve with preset   safety pressure

4. High-temperature pressure transmitter   for pressure reading

Pressure Gauge (Optional)

1. High vacuum gauge

2. Digital vacuum/pressure gauge

3. Pressure range: -100 KPa to 0 and up   to 30 MPa (vacuum to atmospheric pressure to positive pressure)

Water Cooling (Optional)

1. Four water cooling bracket blocks in   total, two on each side.

2. Each block has two water cooling   ports.

3. Water chiller optional.

Notice

1. To extend the life of the tube, use   quartz or alumina crucibles to hold samples instead of placing samples   directly into the tube.

2. Set the pressure alarm point on the   digital pressure display before operation.

3. A pressure regulator must be installed   on the cylinder to gradually increase the pressure.

4. The tube is designed for 2000 hours of   use at 800°C.

5. High-pressure containers are   consumable items; if deformation is found, please order replacements.
