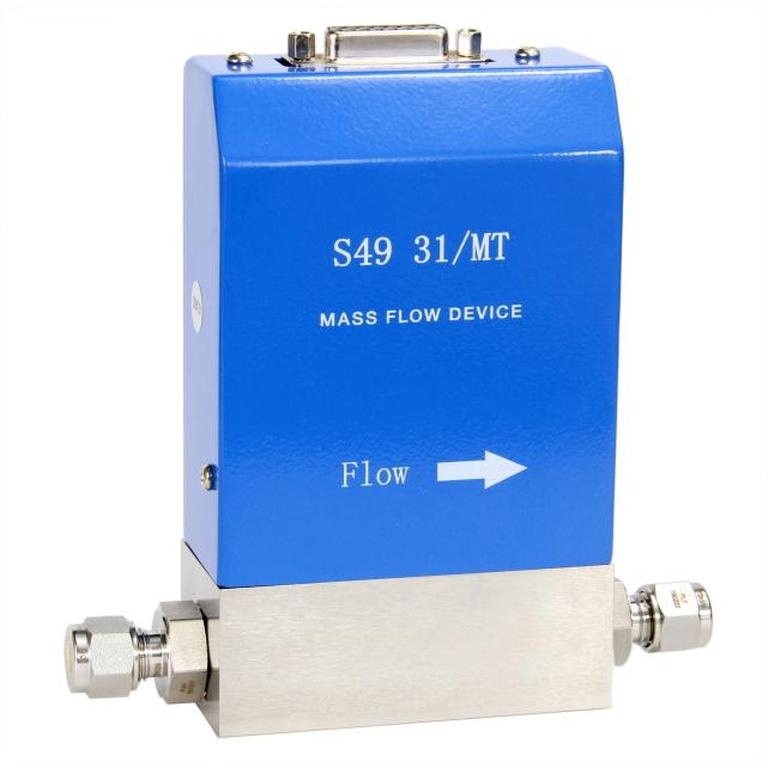

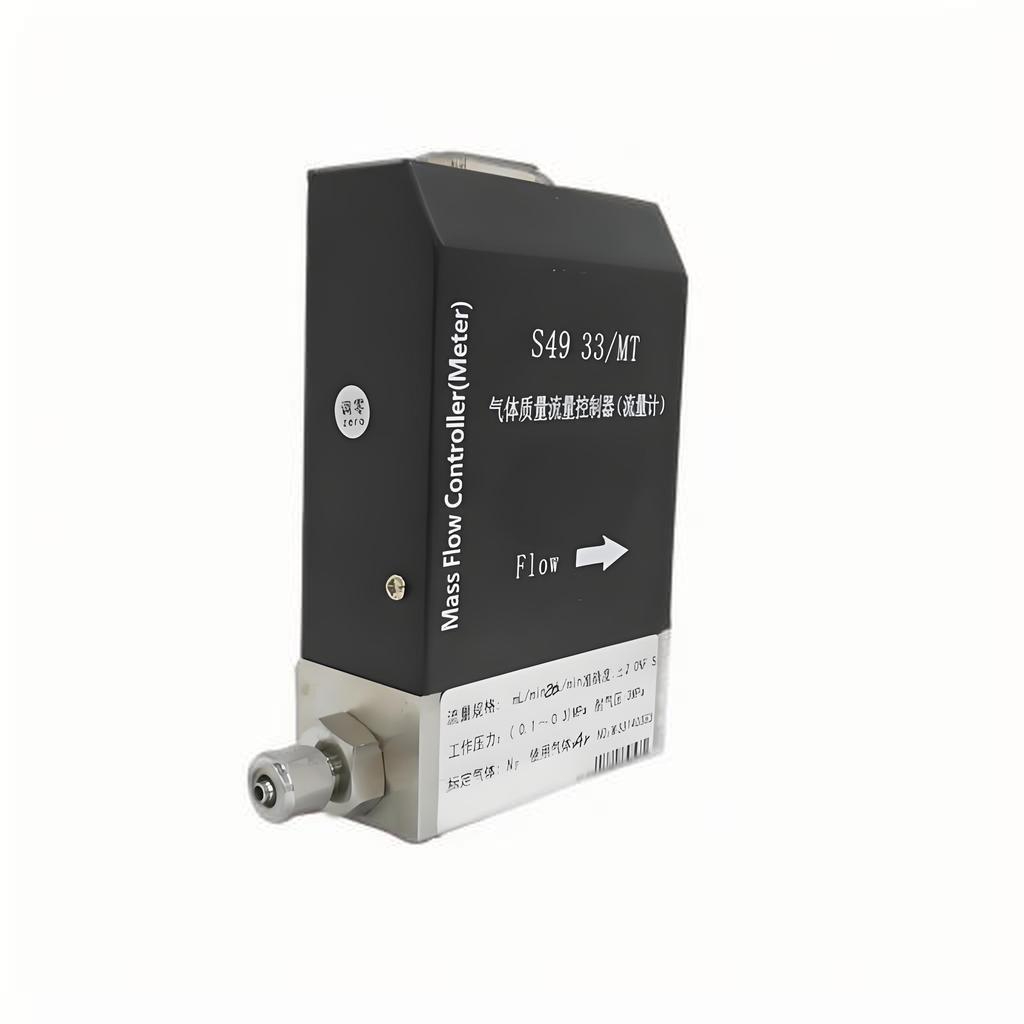

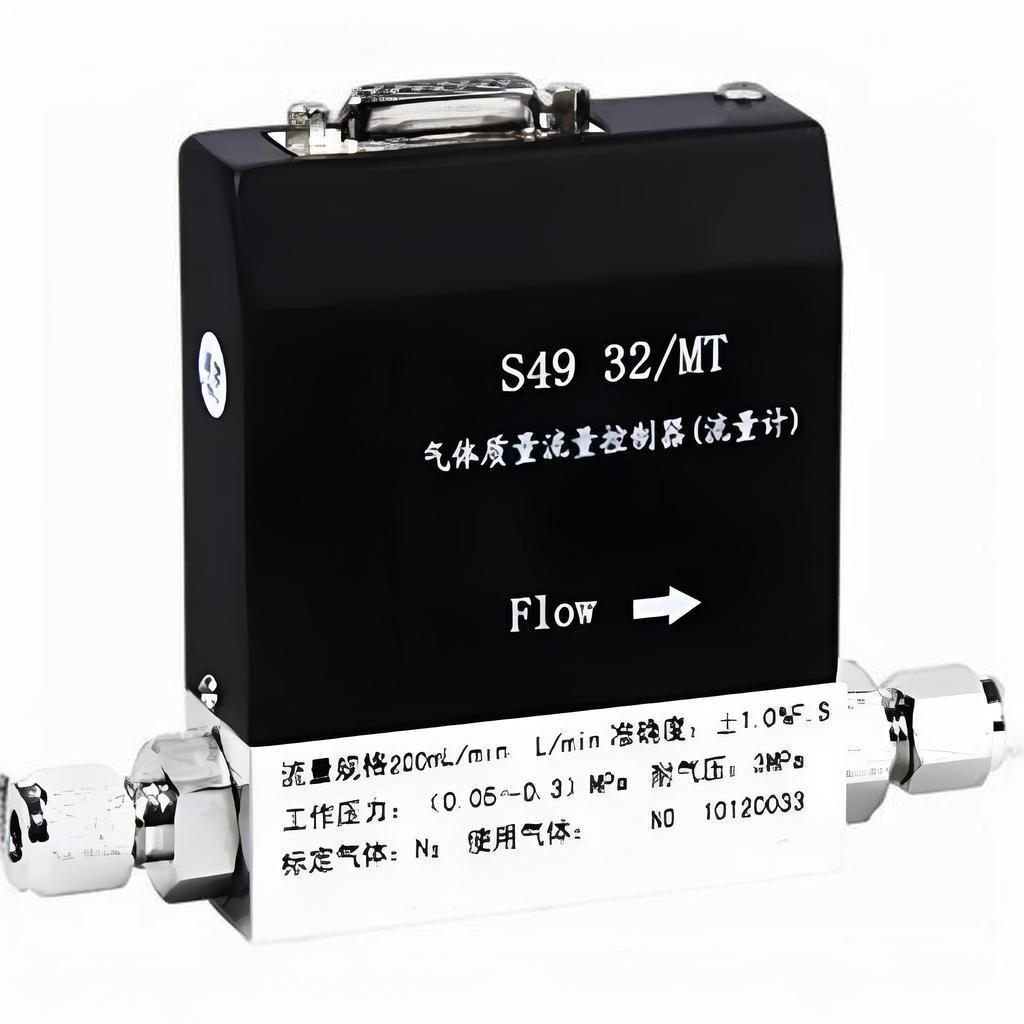

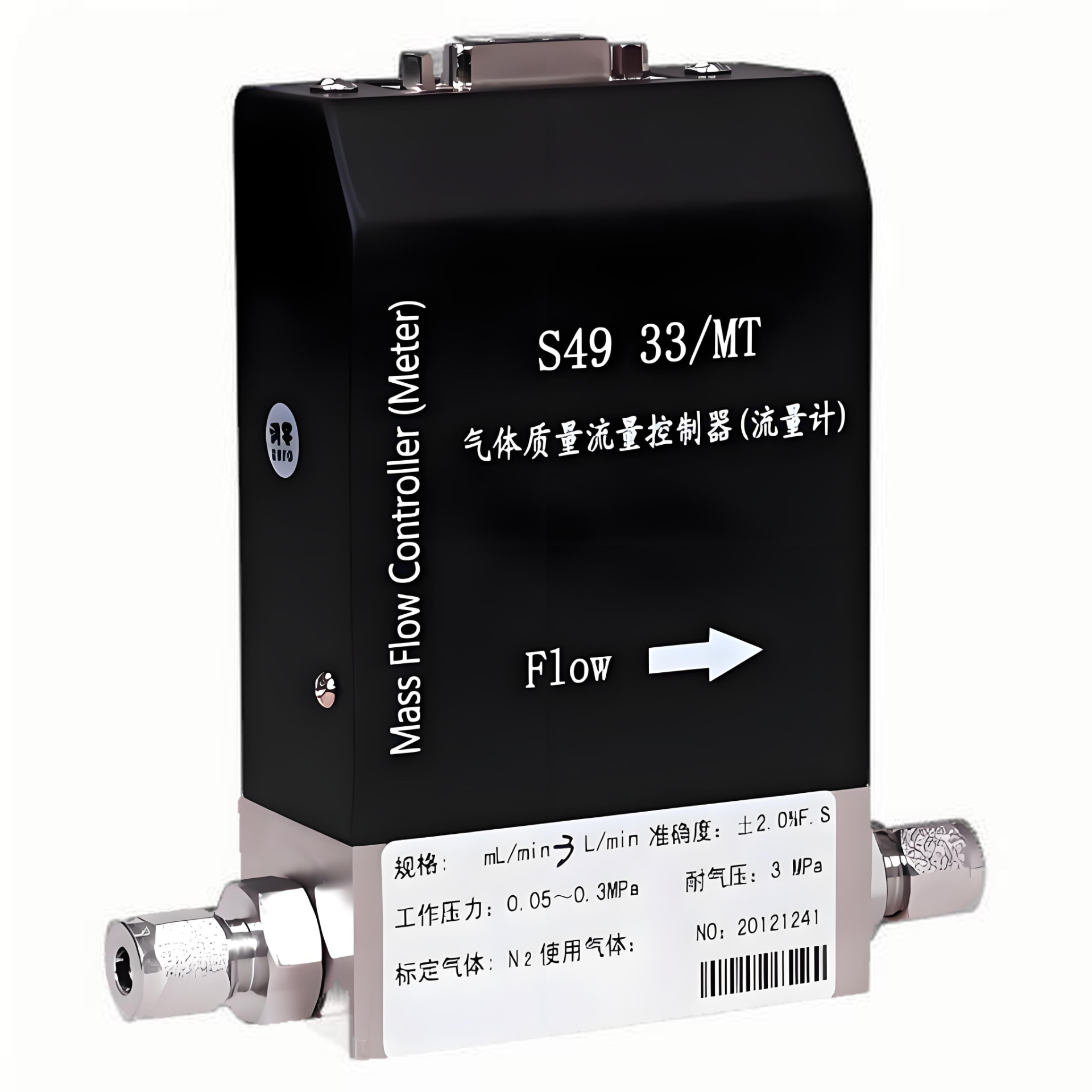

MFC Gas Mass Flow Meter

    CY Mass gas flow controller (flow meter) (abbreviated as MFC (MFM)) is a device that accurately measures and controls the mass flow of gas.


CY Mass gas flow controller (flow meter) (abbreviated as MFC (MFM)) is a device that accurately measures and controls the mass flow of gas.

Mass gas flow meter Features:

1. Mass flow controllers (flow meters) are usually calibrated with nitrogen (N2) before leaving the factory.

2. The unit of mass flow is specified as: standard state mL/min (milliliters per minute) (SCCM industry standard)

3. Standard state L/min (liters per minute) (SLM industry standard)

4. Standard state is specified as: temperature --- 0

5. Air pressure 101325 Pa

6. F.S (Full Scale): indicates full scale value



Mass gas flow meter Technical Specifications:

Flow specifications

(5,10,30,50,100,200,300,500)mL/min

(1,2,3,5,10)  L/min

Regulating valve type

Solenoid control valve

Regulating valve rest position

Normally Closed

Accuracy

± 2.0% F.S

 Linear

±1.0 % F.S,±2.0 % F.S

Repeatability

±0.2  %F.S

Response time

8 sT95

 Working pressure difference range

(50  300) kPa  (1030)L/min (100300)kPa

Pressure resistance

3 MPa   10 MPa

Operating temperature

5  45

Materials

Stainless steel

Standard sealing materials

Viton?, EPDM, or others

Leak rate

1×10-8 Pa.m3/s

Connectors

Ф3mm~Ф10mm, 1/4Swagelok (or VCR),

Hose connector Ф4mm~Ф10mm  or other

Input and output signals

0 V + 5.00 V

(Input impedance is greater than 100K,   output current is less than 3mA)

Voltage and Current

+15 V   50 mA

-15V  200 mA

Dimensions

134mm ×134mm ×38mm

Weight

1.2KG
