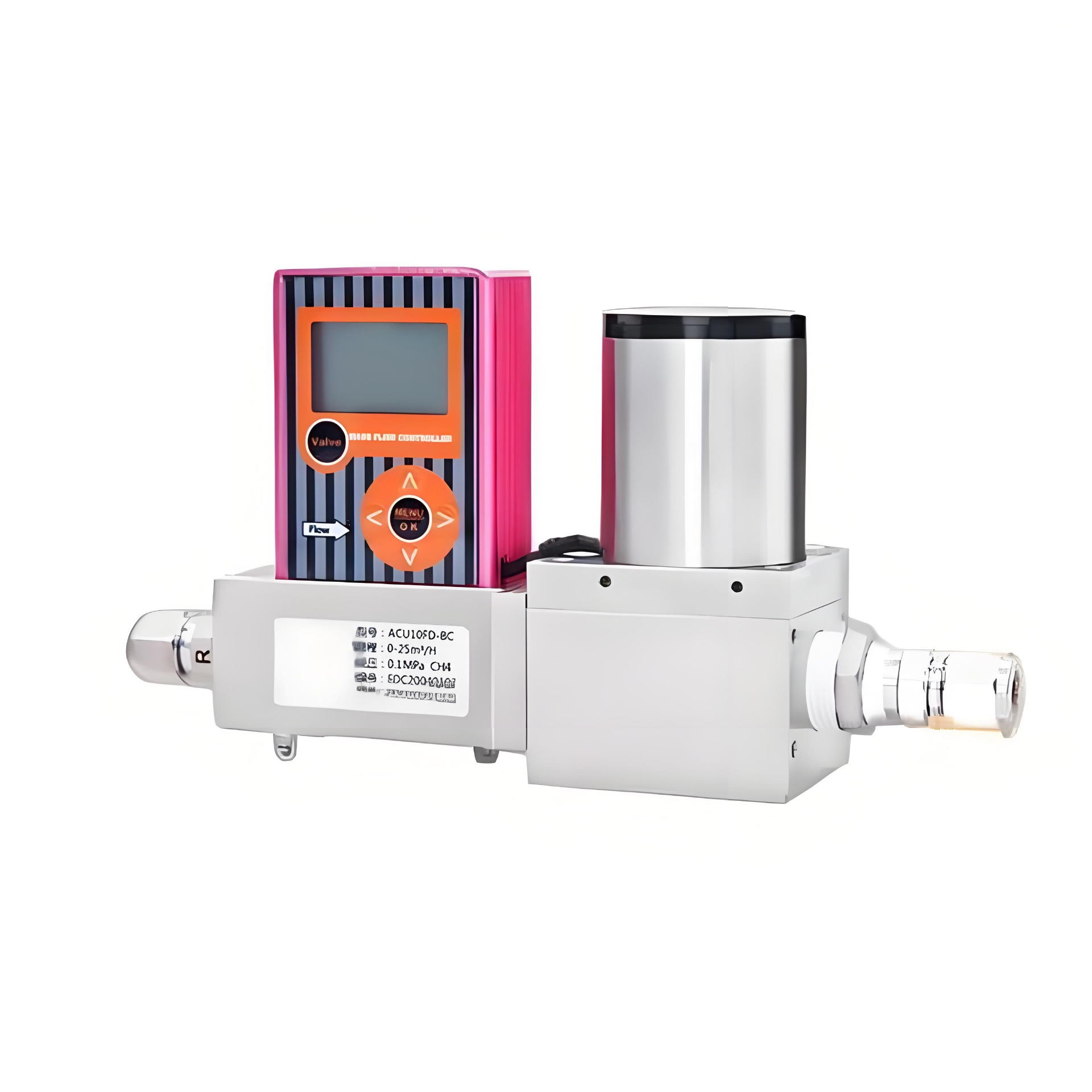

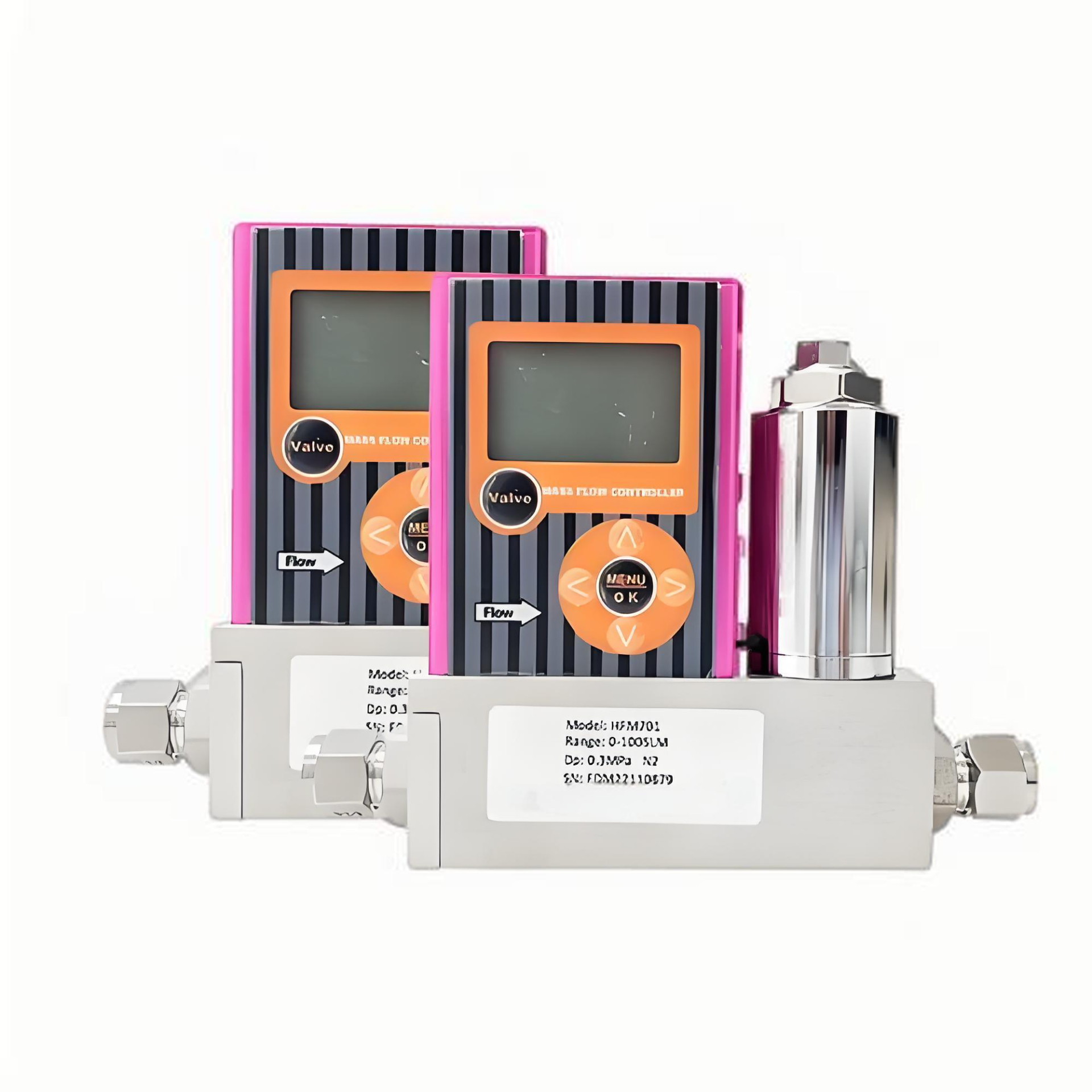

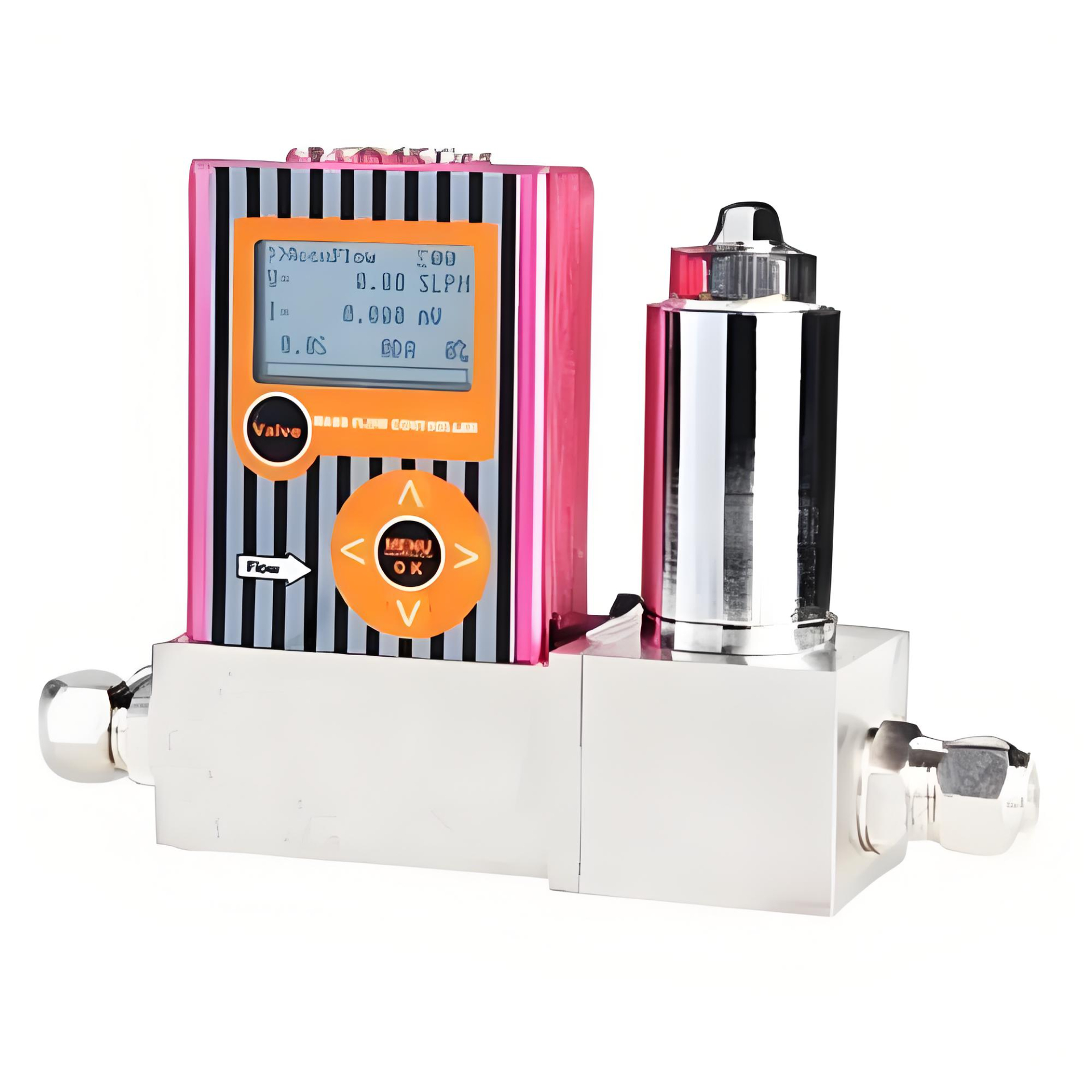

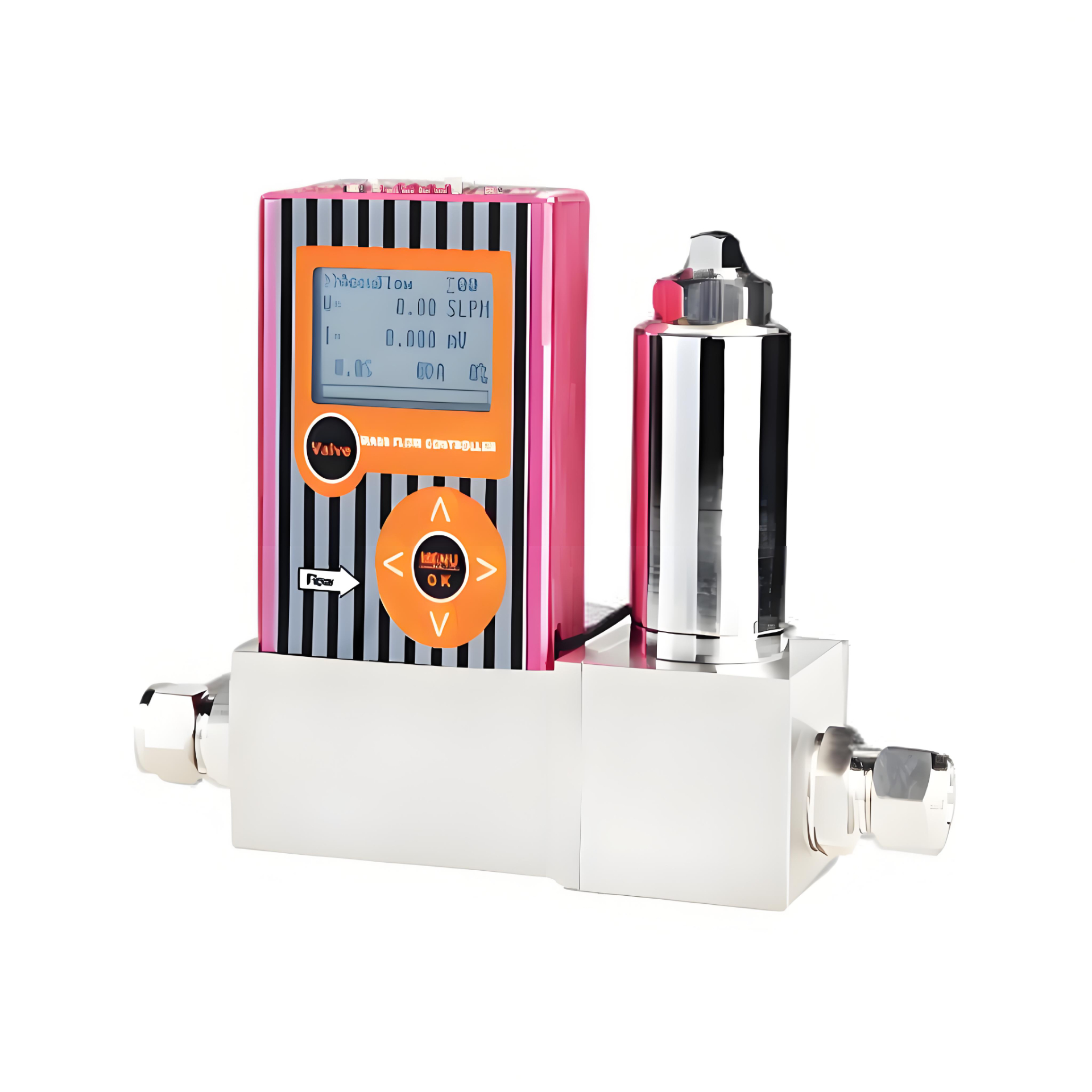

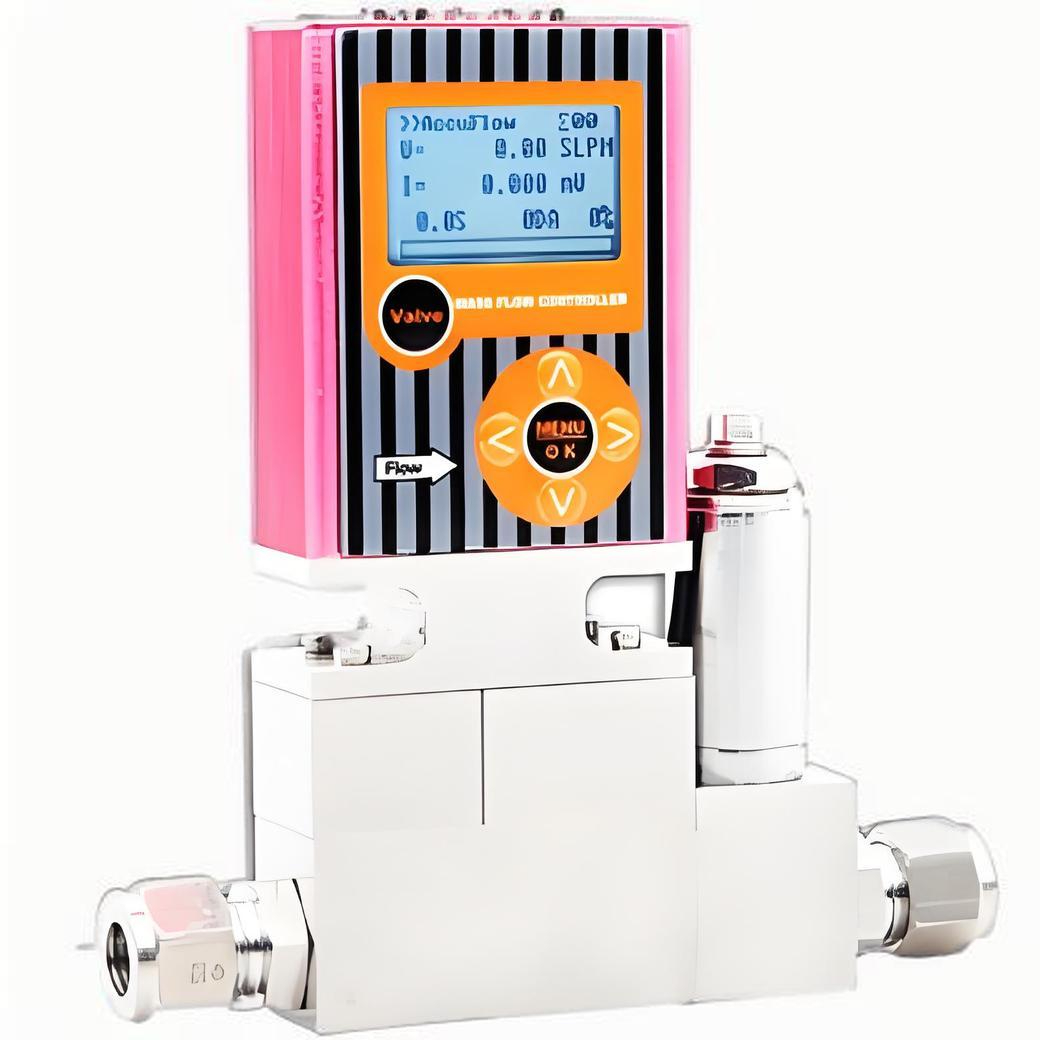

High temperature mass flow controller

    CY series high temperature mass flow meters can quickly and accurately measure the volume flow/mass flow of process gases/liquids/steam

CY series high temperature mass flow meters can quickly and accurately measure the volume flow/mass flow of process gases/liquids/steam;

CY series high temperature mass flow controllers use customized high-speed proportional control valves to accurately control the volume flow/mass flow of gases/liquids/steam.



mass flow meters Application:

CY series high temperature mass flowmeter & flow controller are widely used in various industries, such as process manufacturing, food analysis, analytical testing and measurement. Multivariable measurement and 50:1 adjustable range ratio make it possible to replace multiple devices with only one CY flowmeter & controller. 1% accuracy, 1% repeatability and less than 200 milliseconds control response time ensure the normal operation of process gas/liquid/steam.



mass flow meters Technical Specifications:

Accuracy

±1%F·S

Repeatability

±1%F·S

Working range

2%~100%F·S/501

Maximum measurable flow

100%F·S

Typical response time

200 milliseconds (adjustable)

Start-up warm-up time

5s

Maximum working pressure

3 MPa /10 MPa

Installation

1L/min range, the valve must be installed vertically

Protection level

IP40

Materials

Stainless steel

LCD Display

Simultaneously displays and sets flow   rate,

Digital output signal

RS-485/PROFIBUS

Analog input signal

0~5VDC/4~20mA

Analog output signal

0~5VDC/4~20mA

 Electrical signal interface

DB15

Voltage

24~30VDC

Current

0.750Amp
