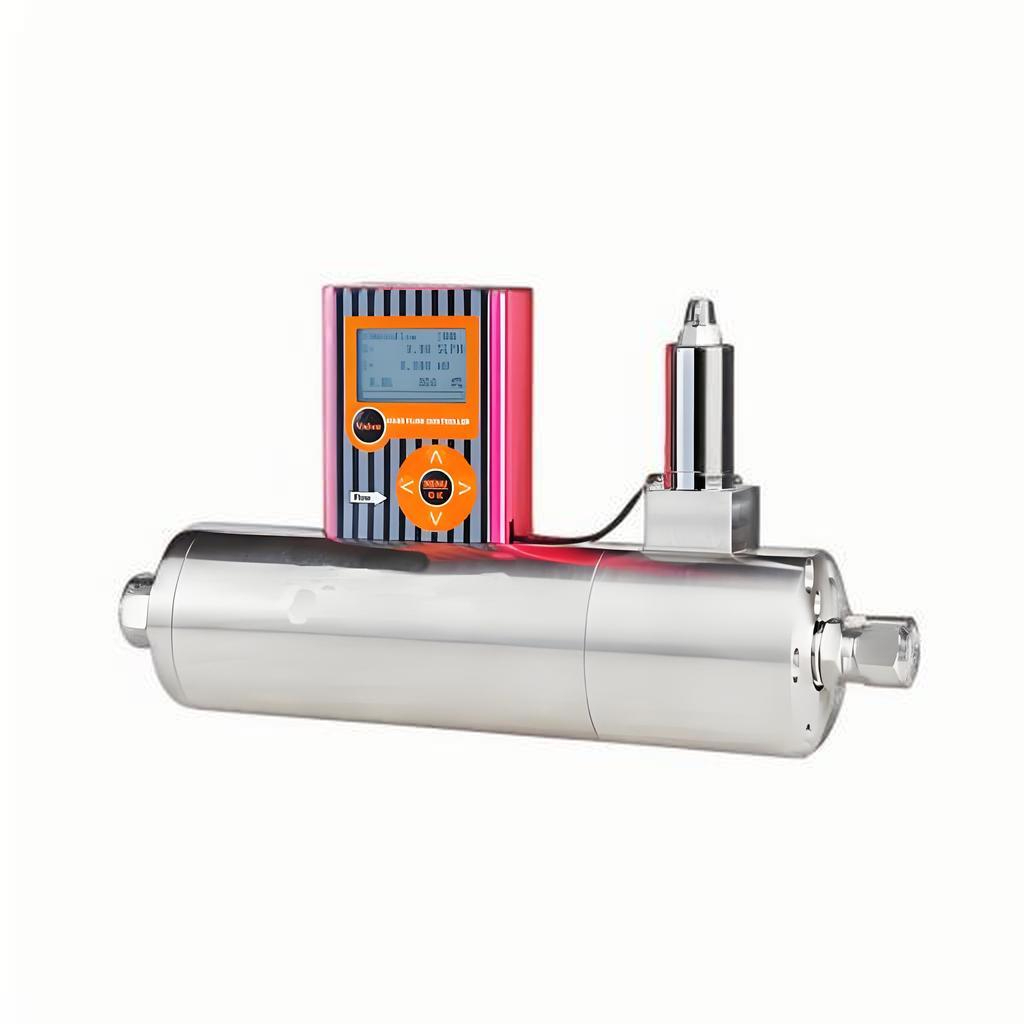

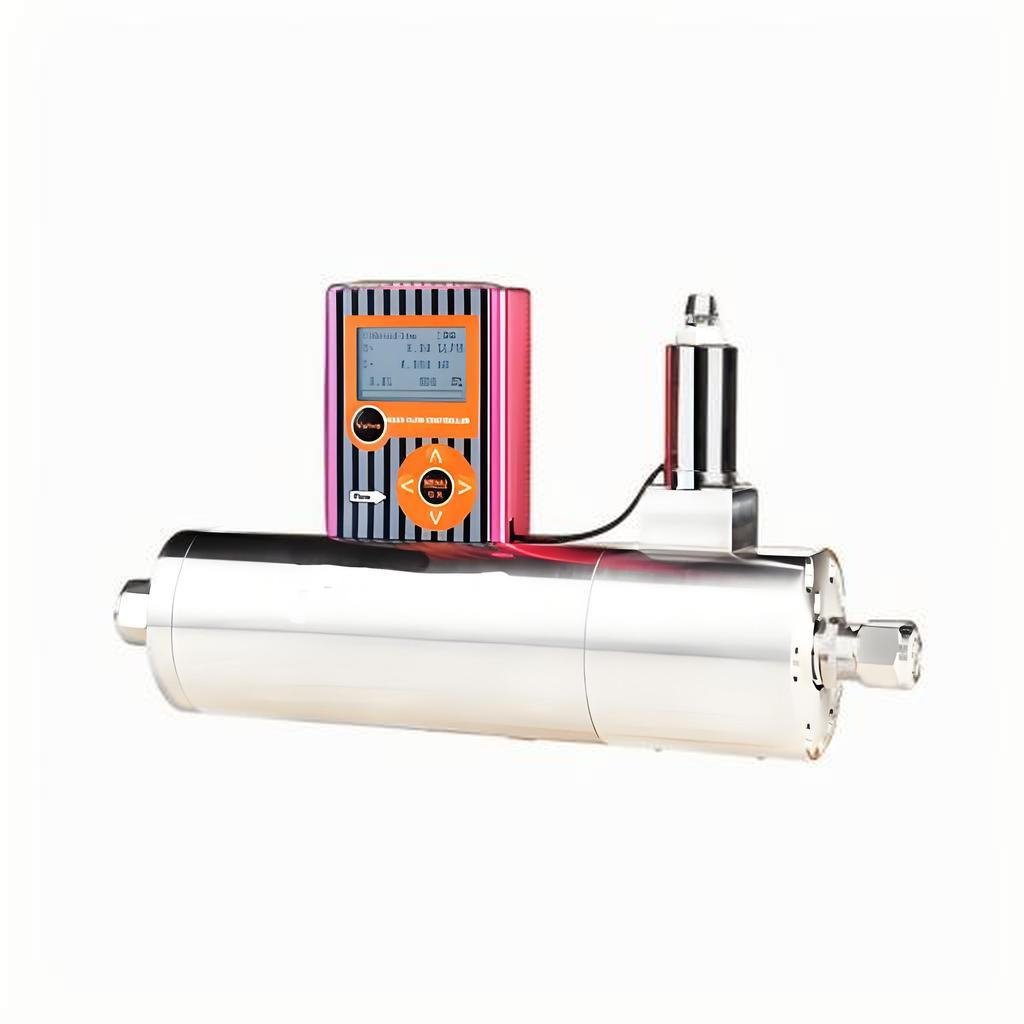

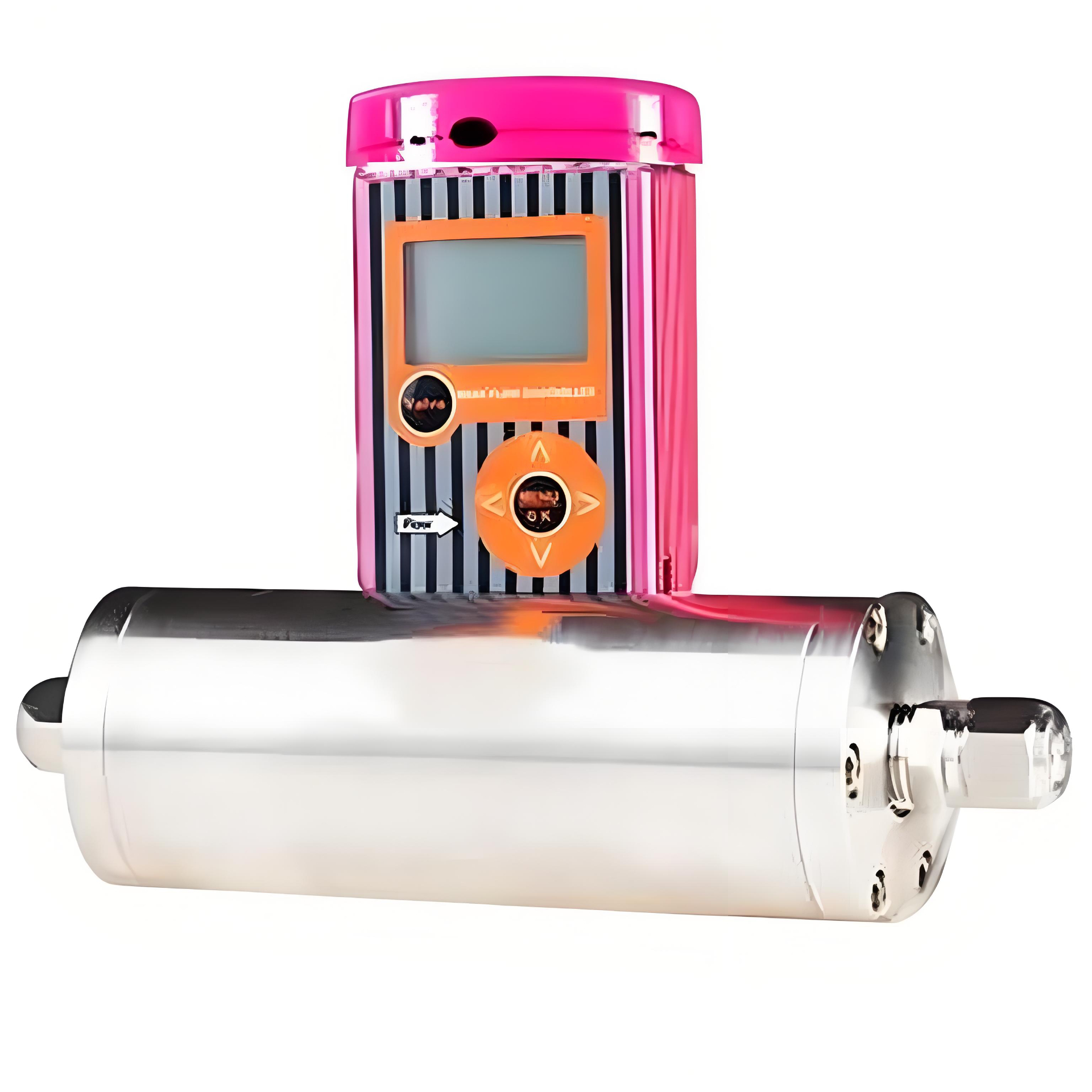

Digital wide range mass flow meter

CY digital mass flow meter consists of mass flow sensor, laminar flow stratification element, flow controller regulating valve and amplification control circuit

Inquire Now Next Product

CY digital mass flow meter consists of mass flow sensor, laminar flow stratification element, flow controller regulating valve and amplification control circuit. It adopts digital signal input and output, and has the characteristics of short warm-up time, small zero drift and high reliability.

mass flow meter Application:

Vacuum, coating, solar energy, semiconductor, petroleum and petrochemical, coal metallurgy, gas production and distribution, environmental protection, various instrument analysis

mass flow meter Technical Specifications:

Gas range	300SLM～3000SLM
Measuring range	100:1
Accuracy	±1%F.S
Linear	±0.5%F.S
Repeatability	±0.2%F.S
Response time	<0.8s
Communication protocol	RS232/485，
Analog	0～5V、4-20mA、1～5V
Valtage	±15VDC，24VDC
Operating temperature	0～50℃
Work Pressure	<0.01Mpa
Maximum withstand voltage	3MPa/10MPa
Electrical Connections	DB15孔
Leakage rate	1×10-9SCCSHe
Temperature coefficient	±0.025%F.S/℃
Base material	Stainless steel
Sealing material	Fluororubber, Neoprene, Nitrile rubber
Connectors	φ12，Flange installation
