Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade)Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade)

Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade)

    Description of the micrometer adjustable film applicator:Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

Basic Info


  • Model NO.: CY-Se-KTQ-100

  • Structure: Desktop

  • Certification: CE, ISO

  • Type: Film Casting Doctor Blade

  • Trademark: CYKY

  • Specification: Film casting doctor blade

  • Customized: Customized

  • Material: Stainless Steel

  • Application: School, Lab

  • Film Applicator: Film Casting Doctor Blade

  • Transport Package: Wooden Case

  • Origin: China


Product Description


Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - CY-Se-KTQ-100

Description of the micrometer adjustable film applicator:Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Specification of the micrometer adjustable film applicator:

Features
  • 100 mm standard width

  • Make wet film thickness between 0 - 3500 microns

  • Micrometer head's controllable accuracy is 10 microns

  • Made of SS304 stainless steel

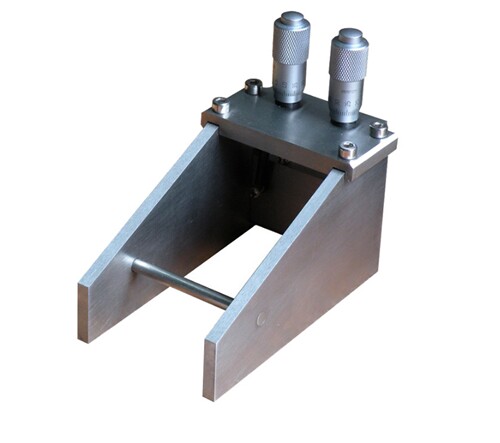

reference picture of the adjustable film applicator:
Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - EQ-Se-Ktq-100

Other related adjustable film applicator:
Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - EQ-Se-Ktq-100
Micrometer Adjustable Film Applicator - 100 mm (Film casting doctor blade) - EQ-Se-Ktq-100
