Compact Stainless Steel Vacuum Glove Box (22

Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge

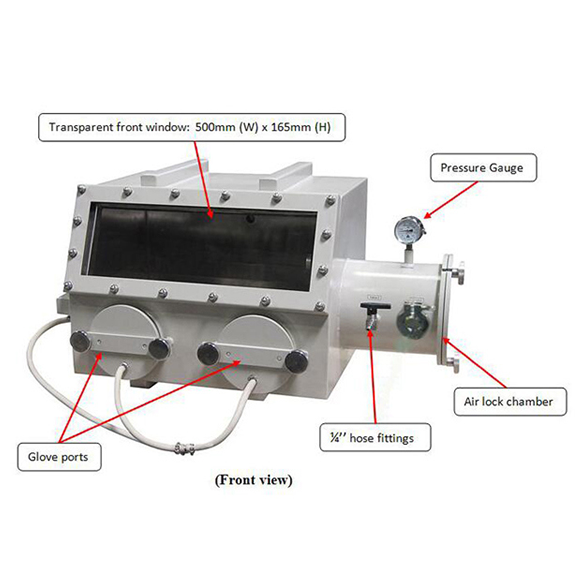

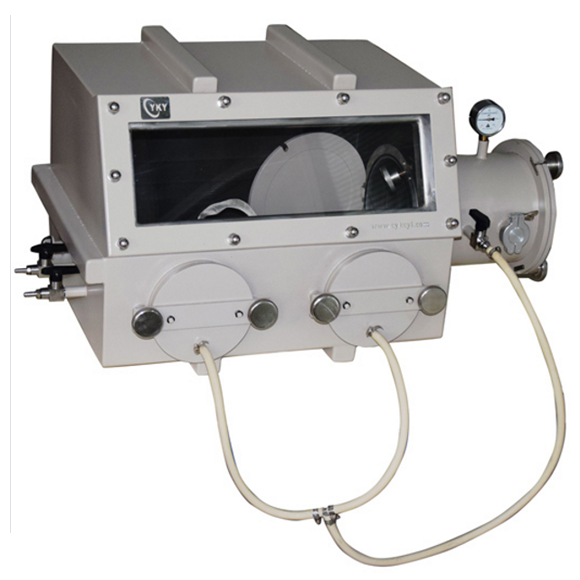

CY-VGB-1 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Inquire Now

Basic Info

Model NO.: CY-VGB-1
Structure: Desktop
Certification: CE, TUV
Type: Lab Glove Box
Transport Package: Ply Wooden Carton
HS Code: 85143090
Customized: Customized
Material: Steel
Application: School, Lab
Trademark: CYKY
Origin: Zhengzhou, China

Product Description

Model No.	CY-VGB-1
Item Name	Vacuum Glove box
Chamber dimension	560430410mm
Material of glove box	304 stainless steel, thickness:3mm
Glove port dimension	Φ220mm, duralumin
Glove	Glove size:8", 0.4mm thickness, material is Butyl rubber

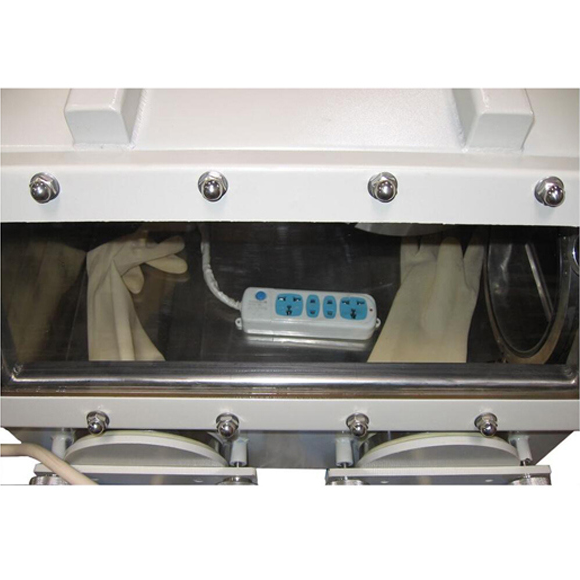

Window	Toughened glass with 3/8" thickness O seal ring
Transition chamber	Cylinder shape with 304 S.S, Connect with glove box, controlled by valve
Transition chamber size	Φ 200*270mm
Gas inlet/Outlet	With gas inlet/outlet port
Transition chamber vacuum degree	0.05torr
Main chamber vacuum	0.5torr
Leakage rate	6torr/h
Max positive pressure	1.1atm
Dimension	940mm×480mm×490mm
Gross weight	95Kg
