Home > Products > Glove Box
Benchtop Vacuum Glove Box (31Benchtop Vacuum Glove Box (31Benchtop Vacuum Glove Box (31Benchtop Vacuum Glove Box (31

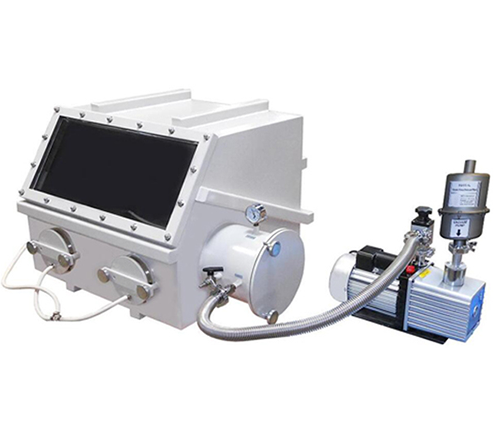

Benchtop Vacuum Glove Box (31"X 26" X 28") with Airlock and Vacuum Flange & Gauge - Cy-Vgb-3

    Product Description  CY-VGB-3 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Basic Info



  • Model NO.: CY-VGB-3

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Lab Glove Box

  • Transport Package: Ply Wooden Carton

  • HS Code: 85143090

  • Customized: Customized

  • Material: Steel

  • Application: School, Lab

  • Trademark: CYKY

  • Origin: Zhengzhou, China


Product Description



CY-VGB-3 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Model No.CY-VGB-3
Item NameVacuum Glove box
Chamber dimension780*700*650mm
Material of glove box304 stainless steel, thickness:3mm
Glove port dimensionΦ220mm, duralumin
GloveGlove size:8", 0.4mm thickness, material is Butyl rubber
WindowToughened glass with 3/8" thickness O seal ring

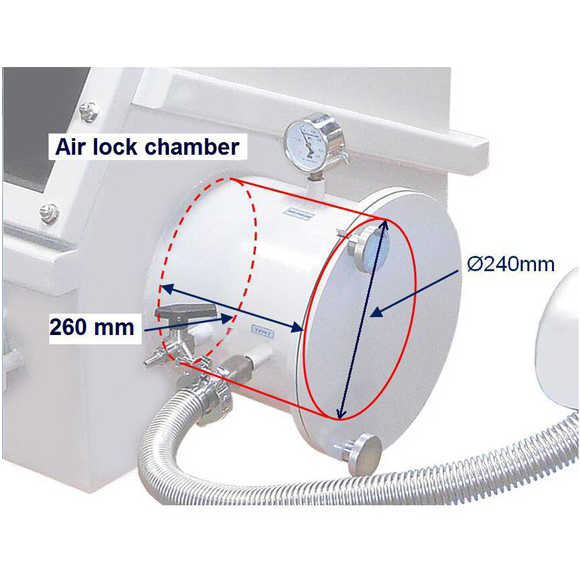

Transition chamberCylinder shape with 304 S.S, Connect with glove box,
controlled by valve
Transition chamber sizeΦ 240*260mm
Gas inlet/OutletWith gas inlet/outlet port
Transition chamber vacuum degree0.05torr
Main chamber vacuum0.5torr
Leakage rate6torr/h
Max positive pressure1.1atm
Dimension1020mm×700mm×650mm
Gross weight220Kg
