Stainless Steel Small Vacuum Glove Box for Lithium Ion Batteries

    EQ-VGB-1 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.

Basic Info


  • Model NO.: CY-EQ-VGB-1

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Measurement Type

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China

  • Customized: Customized

  • Material: Stainless Steel

  • Application: School, Lab

  • Case Material: Stainless Steel

  • Trademark: CY

  • Specification: 555mm(L) x 444mm(W) x 414mm(H)

  • HS Code: 85141090


Product Description


Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge - EQ-VGB-1

Introduction
EQ-VGB-1 is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.
Specification

Glove Box Chamber




Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame, which provide heavy duty structure for vacuum
Dimensions: 555mm(L) x 444mm(W) x 414mm(H)
Max. Positive Pressure: 810 Torr (1.1 atm)
Note: Gloves cannot work if pressure is higher than 810 Torr
Max. Vacuum Level: 0.5 Torr
Note: Stainless Steel case may deform at higher vacuum level
Leakage Rate in GloveBox: < 6 Torr/hour

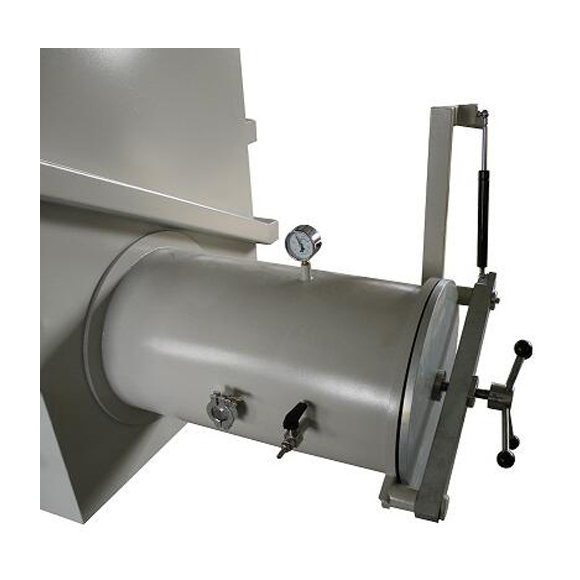

Air-lock ChamberDimensions: 200mm(ID) x 270mm(L)
Max. Vacuum Level: 0.05 Torr
Vacuum gauge and valvesTwo vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging
Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.
One KF-25 connector is installed in the back for connecting humidity monitor or other testing equipment
Power ExtensionOne extension socket (Max power 1500W) is installed in the glove box main chamber.
Note: 110V power cord was included for immediate use. (For 208~240V power supply, no plug will be included)

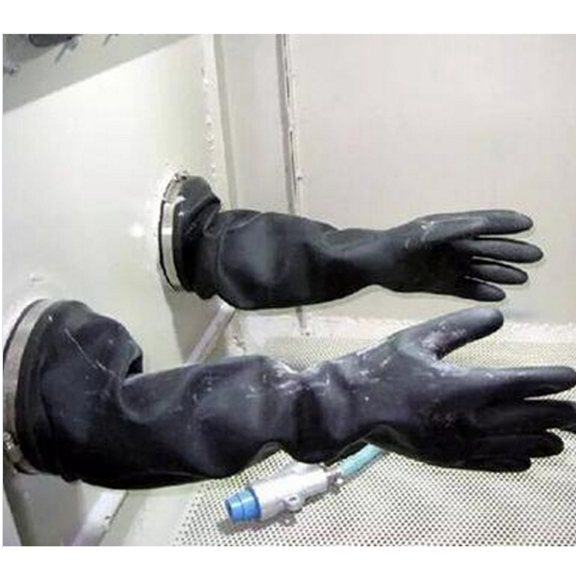

Gloves

One pair of Latex Gloves are included for immediate use
Optional: You may order 6'' Butadyl® gloves here because they have:
Increased stretching, bending ability and tear strength
High effectiveness when vaporized hydrogen peroxide (VHP) is present
High resistance to aromatics, hydrocarbons, solvents, fats, and acids
Resistozone
High static dissipative qualities
Vacuum pump and fittings (Optional)Vacuum pump and fittings are not included.
Note: A KF25 Vacuum Right-Angle Valve is necessary for connecting to vacuum pump.
Product Dimensions1186mm(L) x 480mm(W) x 490mm(H)
WarrantyOne year limited warranty with lifetime support

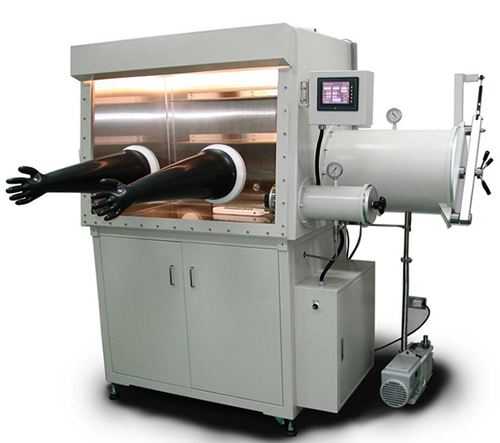

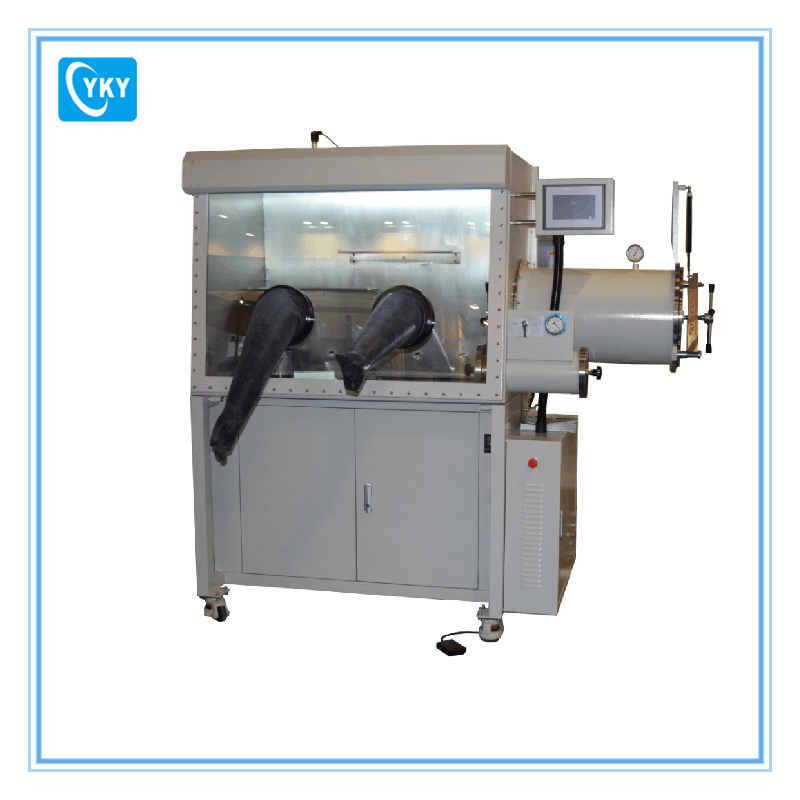

More photos




Stainless Steel Small Vacuum Glove Box for Lithium Ion Batteries

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized
lab equipment.Welcome you come to visit us.
