Mass flow meter gas mixing cabinet

CY series mass flow meter(MFC)gas mixing cabinet is suitable for low pressure and small flow, a variety of gas mixing and continuous gas supply

Inquire Now Next Product

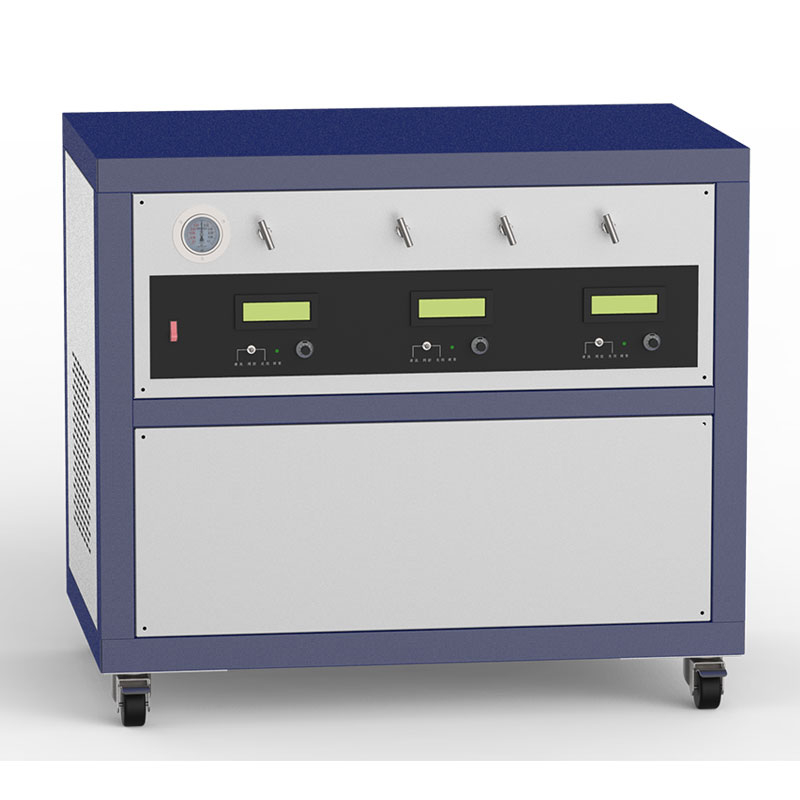

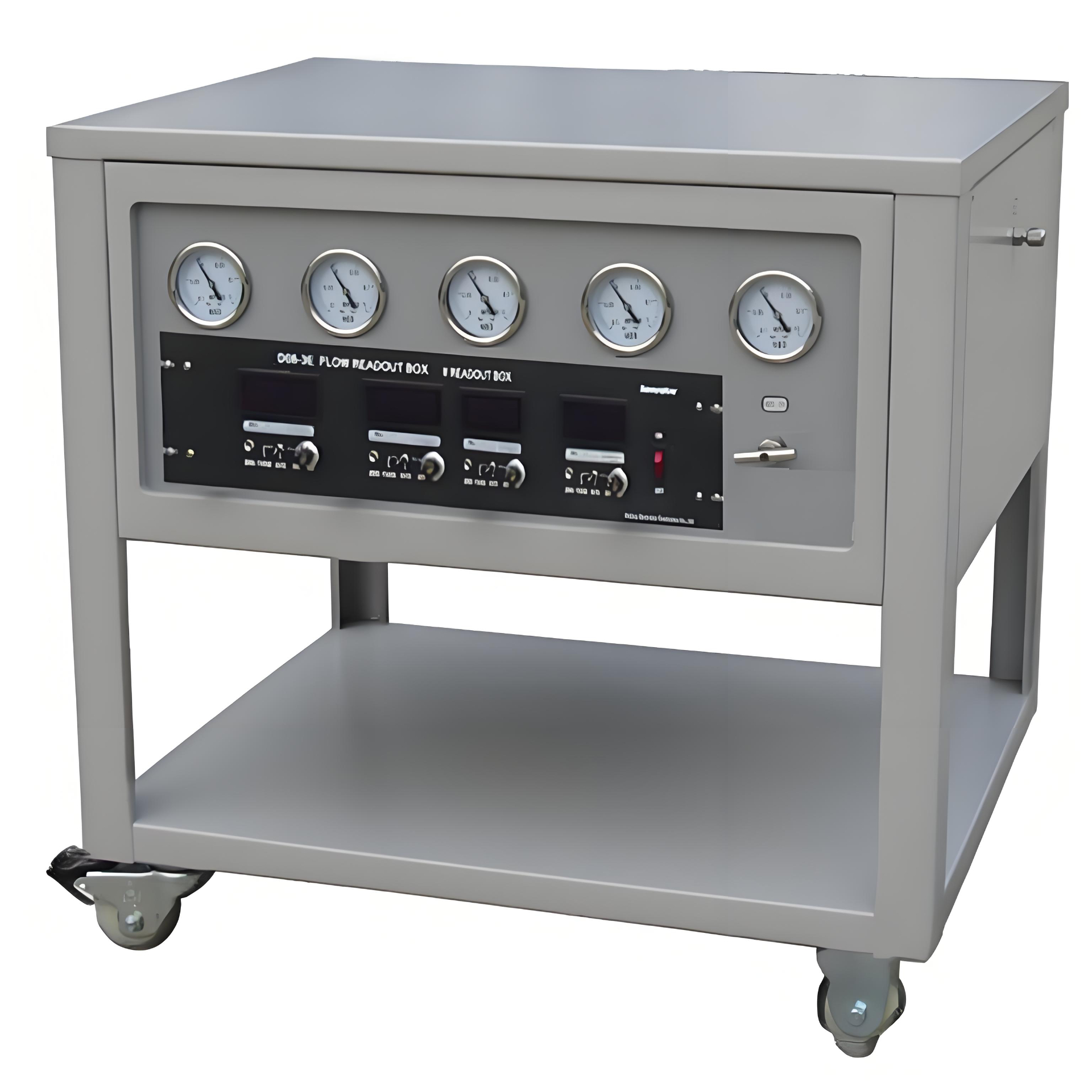

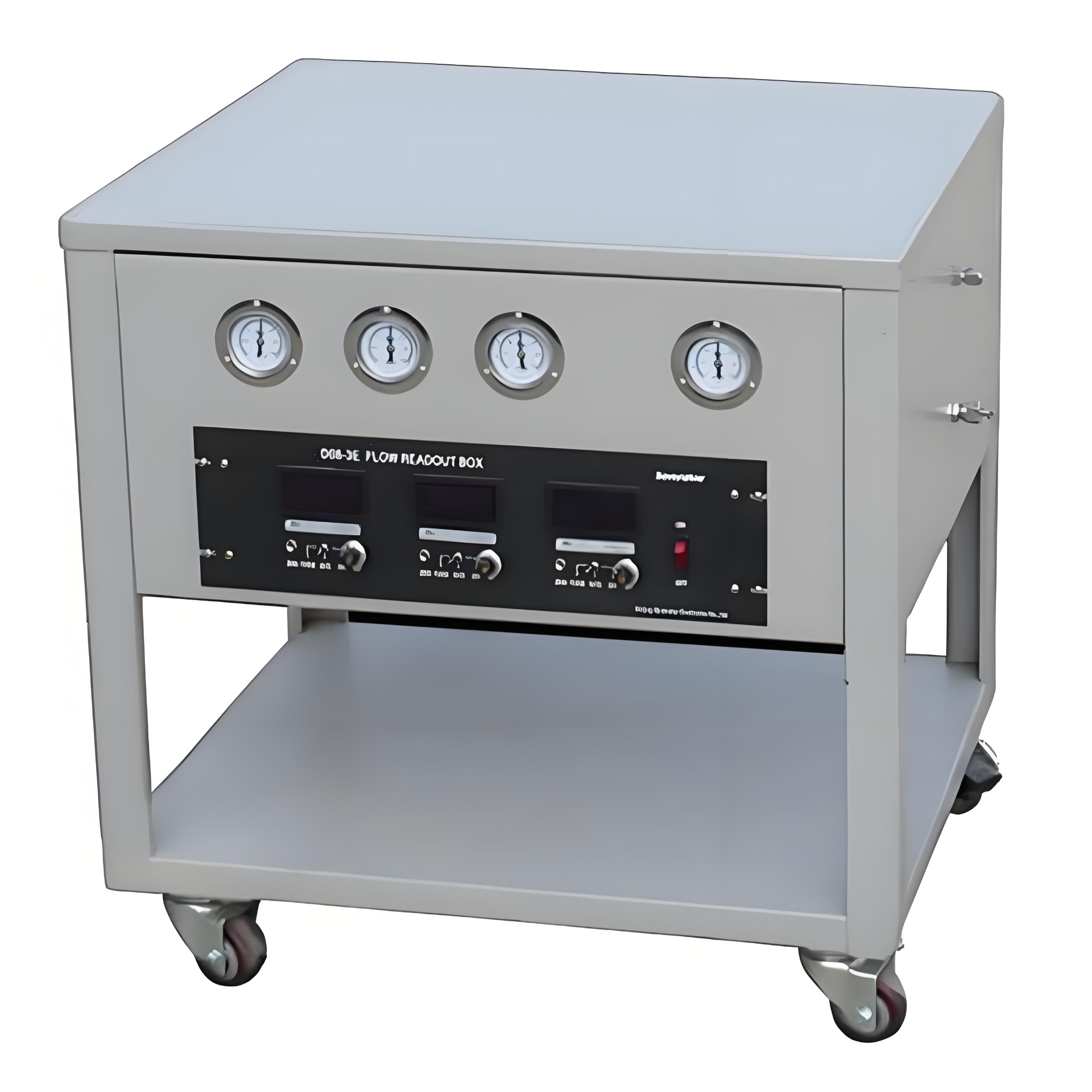

This is actually a mobile workbench with integrated gas control and mixed function.

CY series mass flow meter(MFC)gas mixing cabinet is suitable for low pressure and small flow, a variety of gas mixing and continuous gas supply. Gas pressure and flow data can be read intuitively on the control panel, easy to operate, accurate flow control, and effective control of gas consumption. It can be used with pipe furnace and other equipment to do CVD, atmosphere sintering and other research experiments.

mass flow meter Technical parameters：

Product Name	Mass flow meter(MFC)gas mixing cabinet
Model	CY-1Z/CY-2Z/CY-3Z/CY-4Z
brief introduction	1. Beautiful appearance, strong practicality, easy to operate; 2. Corrosion-resistant polished stainless steel pipe, or corrosion-resistant polytetrafluoroethylene pipe; 3. Reliable gas mixing device can ensure the uniformity of gas mixing; 4. Standard size joints are used to ensure their versatility; 5. Multi-channel gas mixing can be consulted and customized.




Flowmeter type	mass flow controller(MFC)
Pipeline diagram	Use clean and polished corrosion-resistant stainless steel pipe or corrosion-resistant anti-aging polytetrafluoroethylene pipe (optional)
quantity of inlet ports (customizable)	1-channel/2-channel/3-channel/4-channel
size of interface	1/4 "double sleeve joint
Accuracy	±1.0%F.S
Measuring range	50、100、200、500Sccm choosable
Pressure differential range	0.05-0.4MPa
Net weight	40KG(Depends on the size of the table)
Attention	1. Ensure that the pressure inside the pipeline is < 0.15MPa;
Attention	2. After the gas tank is connected to the gas cylinder, use soapy water for leak detection test;
