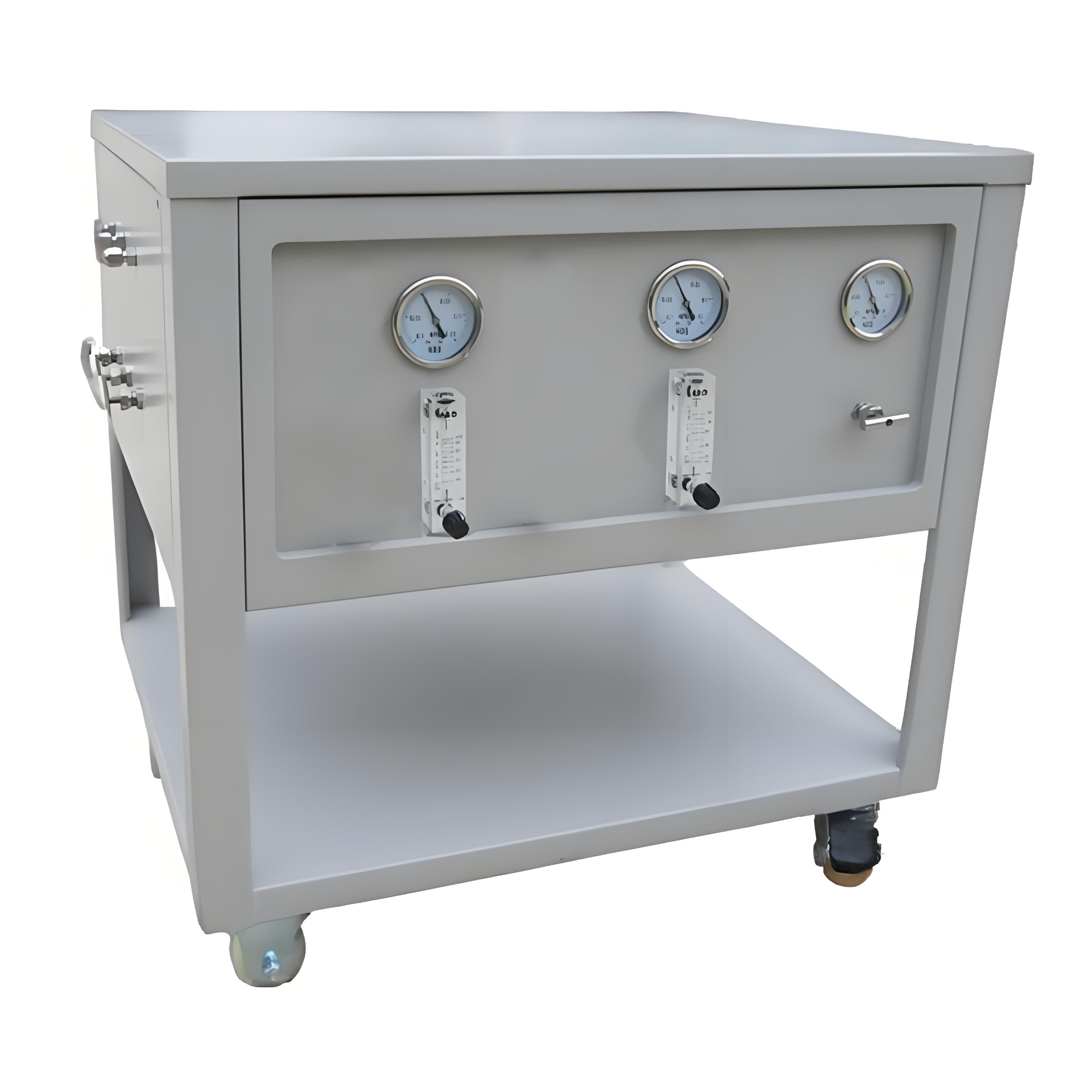

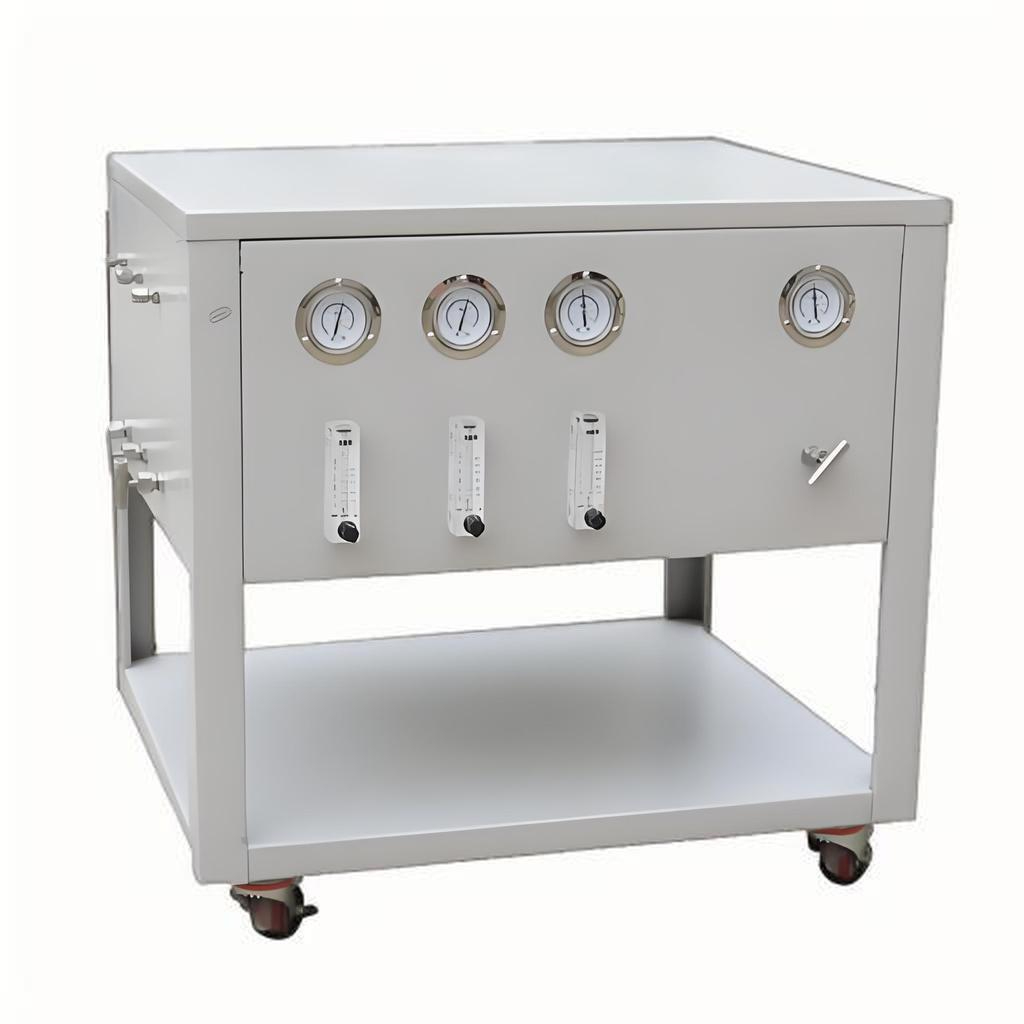

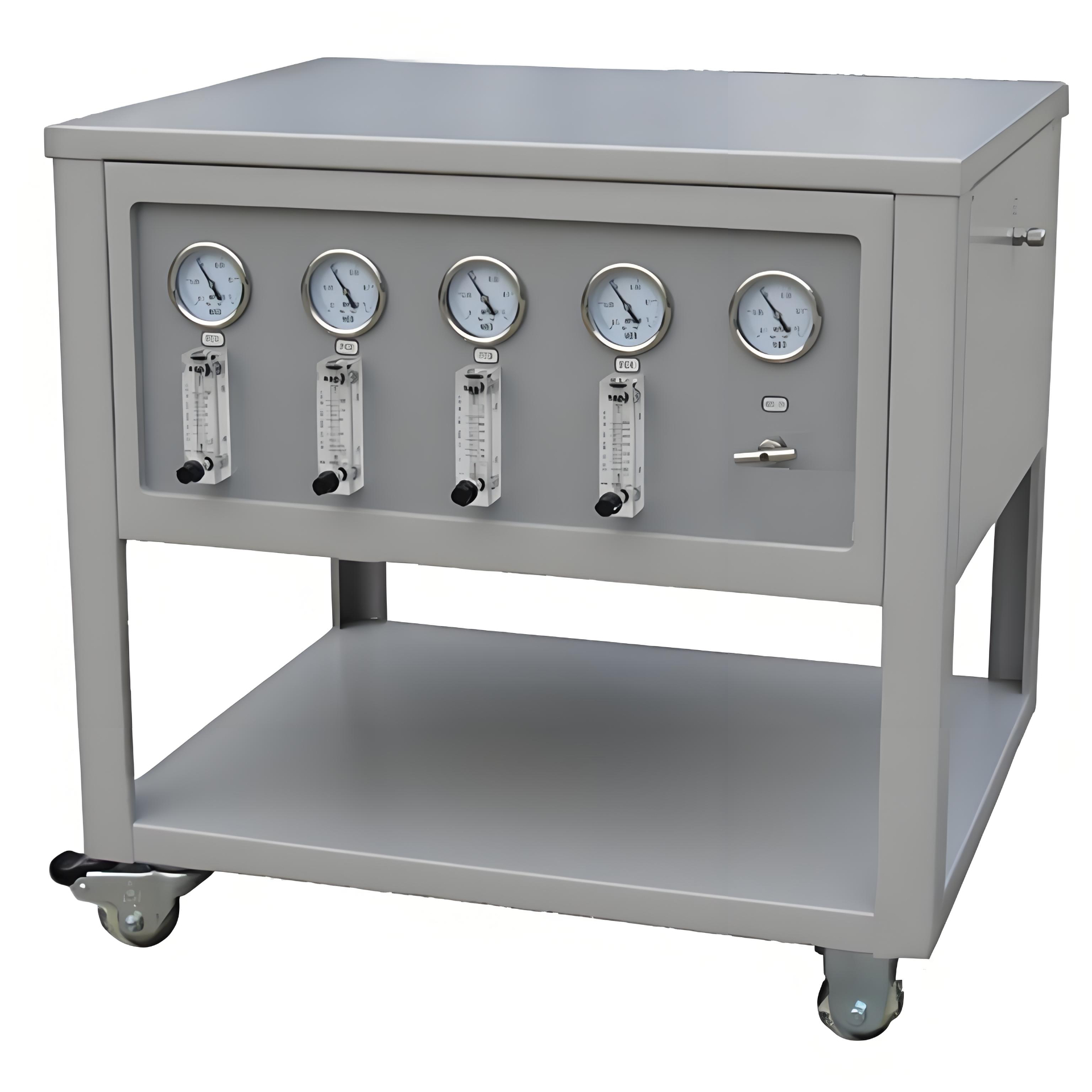

float flow meter gas mixing cabinet

    CY series float flow meter gas mixing cabinet is suitable for low pressure and small flow, a variety of gas mixing and continuous gas supply

This is actually a mobile workbench with integrated gas control and mixed function.

CY series float flow meter gas mixing cabinet is suitable for low pressure and small flow, a variety of gas mixing and continuous gas supply. Gas pressure and flow data can be read intuitively on the control panel, easy to operate, accurate flow control, and effective control of gas consumption. It can be used with pipe furnace and other equipment to do CVD, atmosphere sintering and other research experiments.

float flow meter technical parameters

Product Name

float flowmeter gas mixing cabinet

Model

CY-1F/CY-2F/CY-3F/CY-4F

brief introduction

1. Beautiful appearance, strong practicality, easy to operate;
  2. Corrosion-resistant polished stainless steel pipe, or corrosion-resistant   polytetrafluoroethylene pipe;
  3. Reliable gas mixing device can ensure the uniformity of gas mixing;
  4. Standard size joints are used to ensure their versatility;
  5. Multi-channel gas mixing can be consulted and customized.

Flowmeter type

float flowmeter

Pipeline diagram

Use clean and polished corrosion-resistant stainless steel pipe or   corrosion-resistant anti-aging polytetrafluoroethylene pipe (optional)

quantity of inlet ports (customizable)

1-channel/2-channel/3-channel/4-channel

size of interface

1/4 "double sleeve joint

Measuring range

20-200ml/min; 60-600ml/min; Multiple specifications such as   0.1-0.8L/min are available

Pressure differential range

0.05-0.4MPa

Net weight

30KG(Depends on the size of the table)

Attention

1. Ensure that the pressure inside the pipeline is < 0.15MPa;

2. After the gas tank is connected to the gas cylinder, use soapy   water for leak detection test;
