1500℃ single heating zone low vacuum CVD system is equipped with three-channel mass flowmeter, which has high precision and high reliability. It can accurately mix 1~3 channels of gas. The operation panel adopts digital display, which is intuitive and efficient. If you have special needs, you can contact the technician to customize any number of gas channels.

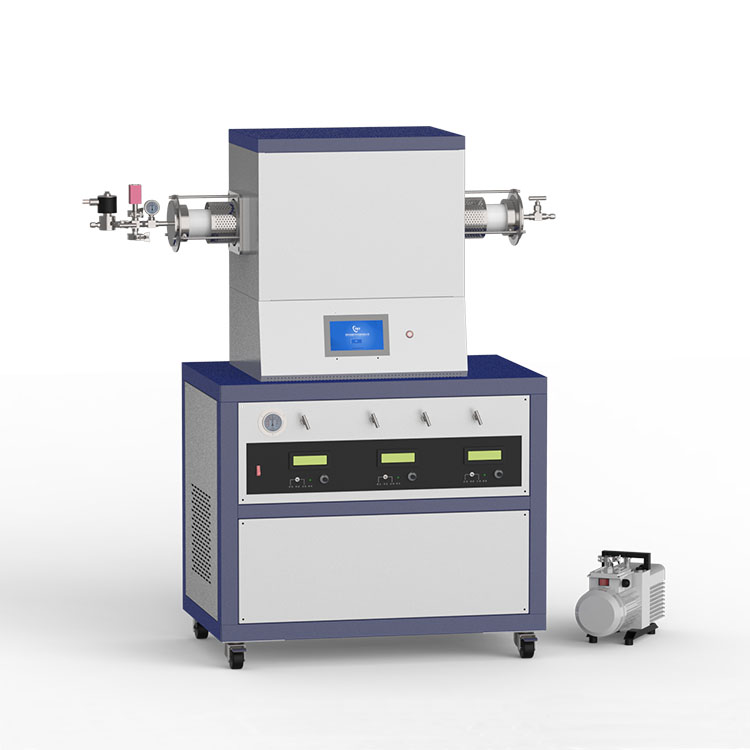

1500℃ single heating zone low vacuum CVD system consists of a 1500℃ single temperature zone tube furnace, a three-channel mass flowmeter and a double stage rotary vane vacuum pump. The tube furnace is controlled by the precision temperature control instrument for PID temperature control. It can edit the 30-segment temperature rise and fall program and has the function of overheating and short circuit protection. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by high-definition true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
The furnace tube is made of high-purity alumina, and the furnace body adopts integrated design. The unique design can ensure the system is stable and safe at 1500℃. The heating element is made of high-quality silicon carbon rod, which can reach 1500℃. If the customer has the need, the silicon molybdenum rod heating element can be customized to achieve a higher temperature of 1700℃.
It is suitable for high-temperature sintering, metal annealing, quality inspection, etc. in universities, research institutes, industrial and mining enterprises, especially for CVD experiments that require a variety of gas mixing atmospheres.
Vacuum tube furnace | Model | CY-O1500-60IT | |
Tube material | High purity alumina | ||
Tube diameter | 60mm (optional 50mm, 80mm, 100mm) | ||
Tube length | 1000mm | ||
Furnace chamber length | 400mm | ||
Heating zone length | 300mm | ||
Constant temperature zone | 150mm | ||
Operating temperature | ≤1450℃ | ||
Temperature control accuracy | ±1℃ | ||
Temperature control mode | 30 or 50 segment program temperature control | ||
Display mode | LCD | ||
Sealing method | 304 stainless steel vacuum flange | ||
Flange interface | 1/4" ferrule connector, KF16/25/40 joint | ||
Vacuum | 4.4E-3Pa | ||
Power supply | AC:220V 50/60Hz | ||
Gas supply system | Model | CY-3Z | |
Gas channel | 3-channel | ||
Measuring unit | Gas mass flowmeter | ||
Measuring range | A channel: 0~100SCCM H2 gas | Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected. | |
B channel: 0~300SCCM N2 gas | |||
C channel: 0~500SCCM Ar gas | |||
measurement accuracy | ±1.0%F.S | ||
Pipe pressure resistance | 3MPa | ||
Working pressure difference | 50~300KPa | ||
Connecting pipe | 304 stainless steel | ||
Gas channel | 304 stainless steel needle valve | ||
Interface specification | 1/4" ferrule connector for gas inlet and outlet | ||
Power supply | AC:220V 50/60Hz | ||
Exhaust system | Mechanical pump | Rotary vane pump | |
Pumping rate | 1.1L/S | ||
Exhaust interface | KF16 | ||
Vacuum measurement | Resistance gauge | ||
Ultimate vacuum | 1.0E-1Pa | ||
Power supply | AC:220V 50/60Hz | ||
Pumping interface | KF16 |
