Three-zone rotary tube furnace with continuous powder feeding & receiving system CY-O1200-100IIIT-R

Three-zone rotary tube furnace with continuous powder feeding & receiving system CY-O1200-100IIIT-R

    Three-temperature zone rotary tube furnace is widely used for sintering inorganic compounds. The mechanical transmission control tube can rotate 360° without interruption, so that the materials in the tube can be stirred and mixed to obtain uniform heating effect.

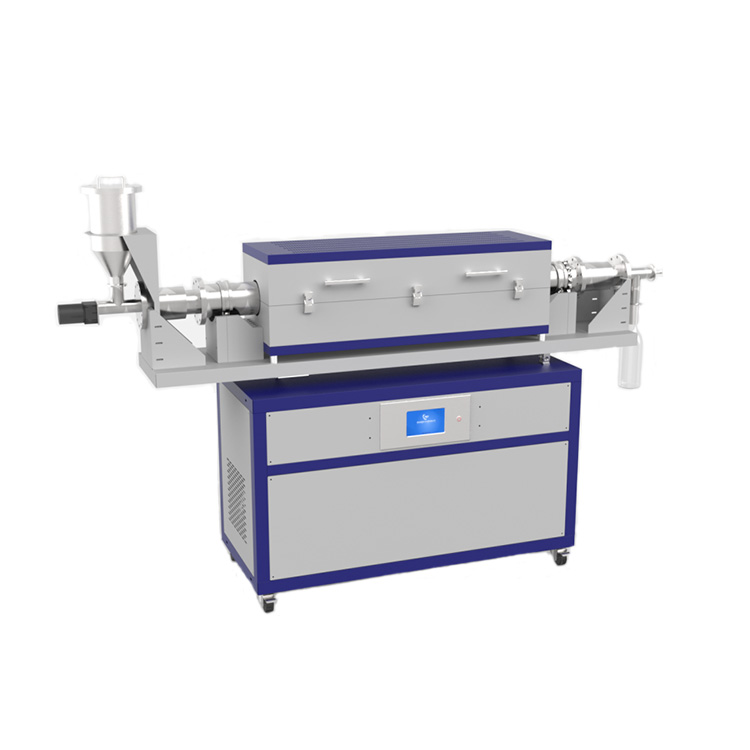

CY-O1200-100IIIT-R is a three-zone rotary tube furnace with a feeder and a receiving tank. The feeder can feed the powder into the furnace tube at a rated rate, and the powder material can be continuously wrapped and modified by the CVD method under the atmosphere protection environment. The receiving tank can collect the processed powder in an atmosphere protection environment.

Three-zone rotary tube furnace with continuous powder feeding & receiving system application:

This tube furnace is designed to coat the conductive layer on the cathode material of Lithium-ion battery (such as LiFePO3, LiMnNiO3), and also to prepare Si/C anode material by CVD.

Three-zone rotary tube furnace with continuous powder feeding & receiving system specifications:

Vacuum tube furnace

Max power

4.5kw

Tube material

Outer tube stainless steel, inner tube quartz

Tube diameter

100mm (60mm at both ends, 100mm in the middle)

Tube length

1200mm

Furnace chamber   length

660mm

Heating zone length

200mm+200mm+200mm

Constant temperature  zone

200mm

Operating   temperature

0~1100℃

Temperature  control accuracy

±1

Temperature  control mode

30 or 50 segment program temperature control

Display mode

LCD

Sealing   method

304 stainless steel vacuum flange

Flange   interface

1/4" ferrule connector, KF16/25/40 joint

Vacuum

4.4E-3Pa

Power supply

AC:220V   50/60Hz

Inclination angle

0~15°

Rotating speed

0~20 rpm

Gas supply system

Model

CY-3F

Gas channel

3-channel

Measuring unit

Gas float   flow meter

Measuring   range

A channel: 0100ml  H2 gas

Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected.

B channel: 16160ml  N2 gas

C channel: 25250ml  Ar gas

measurement  accuracy

±2.0%

Pipe pressure resistance

3MPa

Working   pressure difference

50300KPa

Connecting   pipe

304 stainless steel

Gas channel

304 stainless steel needle valve

Interface   specification

1/4" ferrule connector for gas inlet and outlet

Exhaust system

Mechanical   pump

Rotary vane pump

Pumping rate

1.1L/S

Exhaust   interface

KF16

Vacuum   measurement

Resistance gauge

Ultimate   vacuum

1.0E-1Pa

Power supply

AC:220V   50/60Hz

Pumping   interface

KF16

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
