Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD SystemLaboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD SystemLaboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System

Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System

    Laboratory Flexible metal foil electrode preparation  1200 celcius Single/Multi Heating zone

Basic Info


  • Model NO.: CY-O1200-100IT-S3ZD

  • Certification: TUV

  • Brand: Cyky

  • Specification: O. D100*400mm heating zone

  • HS Code: 85143090

  • Type: CVD Film Preparation

  • Structure: Horizontal Type

  • Transport Package: Standard Ply Wooden Box

  • Origin: Zhengzhou, China


Product Description


Laboratory Flexible metal foil electrode preparation  1200 celcius Single/Multi Heating zone

Double Tube Slide CVD system

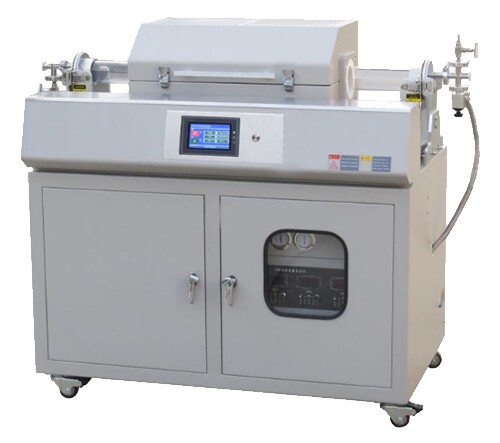

Name1200ºC Double Tube Single/Multi zone Slide CVD System
Model No.CY-O1200-100IT-S3ZDCY-O1200-100IIT-S3ZDCY-O1200-100IIIT-S3ZT
Max Temper1200ºC
Heating zone420mm610mm940mm
Constant zone210mm400mm700mm
Heating zoneSingle zoneDouble zoneThree zone
Quartz diameterInner diameter:Φ80mm  Outer diameter:Φ100mm
Rated power2.5Kw4.8Kw7.2Kw
Rated voltage220V220V380V(three phase)
Sliding distance290mm485mm650mm
Sliding methodManual/Auto programmable control
Temperature controlPID Programmable control, 30 steps curves
Temperature accuracy±1ºC

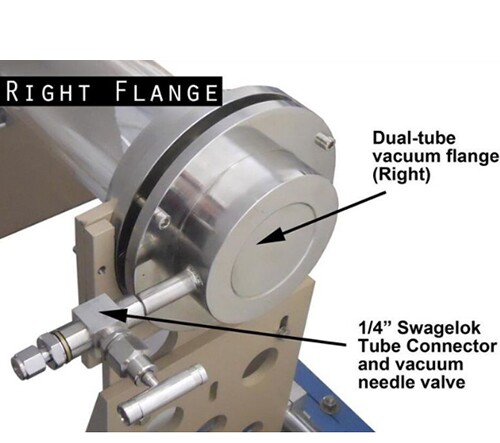

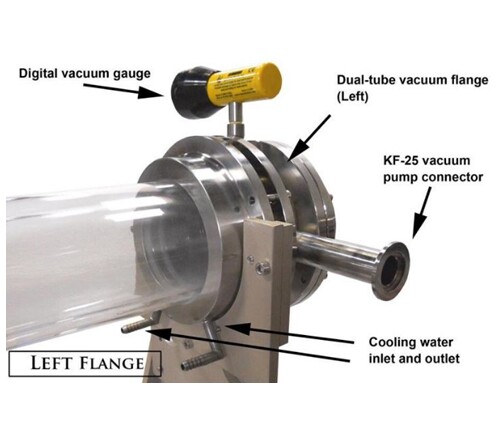

Double Tube Sealing FlangeAdopt double flange extensible multi-function double clamp connection,and independently inner tube and outer tube for vacuum and gas flow control.
Gas Control MethodMass Flow Controller
Gas way3 gas way
Flow speed range0-500sccm, or as customized
Accuracy±1%F.S
Response time≤4sec
Working surrounding temperature5-45ºC
Working pressureInlet Pressure 0.05-0.3Mpa
Vacuum range10Pa-100Pa1x10-3Pa-1x10-1Pa
Vacuum pumpDouble stange
mechanical pump,
Vacuum:3x10-1Pa,
Pump speed:4L/S,
Turbo pump set
Vacuum:5x10-6Pa
Pumping speed:1600L/S
Outer dimension530×1440×750mm530×1440×750mm
Gross weight240Kg340Kg


Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System

Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System

Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System
 PackagingPLY WOOD BOX as below picture show. or as customer request.
Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD SystemShipping and transportationAs customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD SystemWarranty
Main product is 15 month, except wearing parts.Company InformationZhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Welcome you come to visit us for business inspection.
Laboratory Flexible Metal Foil Electrode Preparation 1200 Celcius Single/Multi Heating Zone Double Tube Slide CVD System
