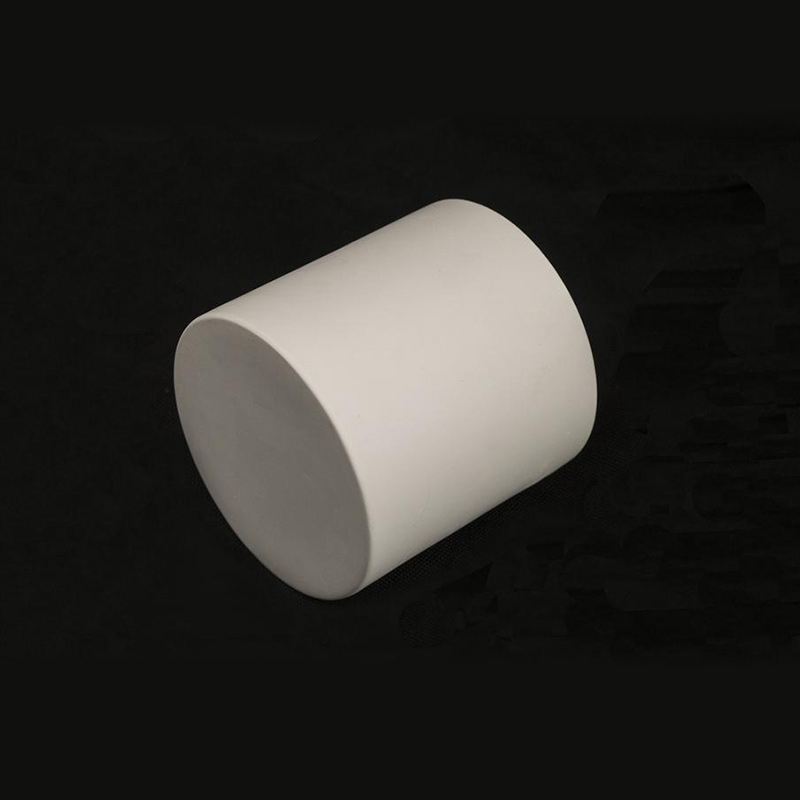

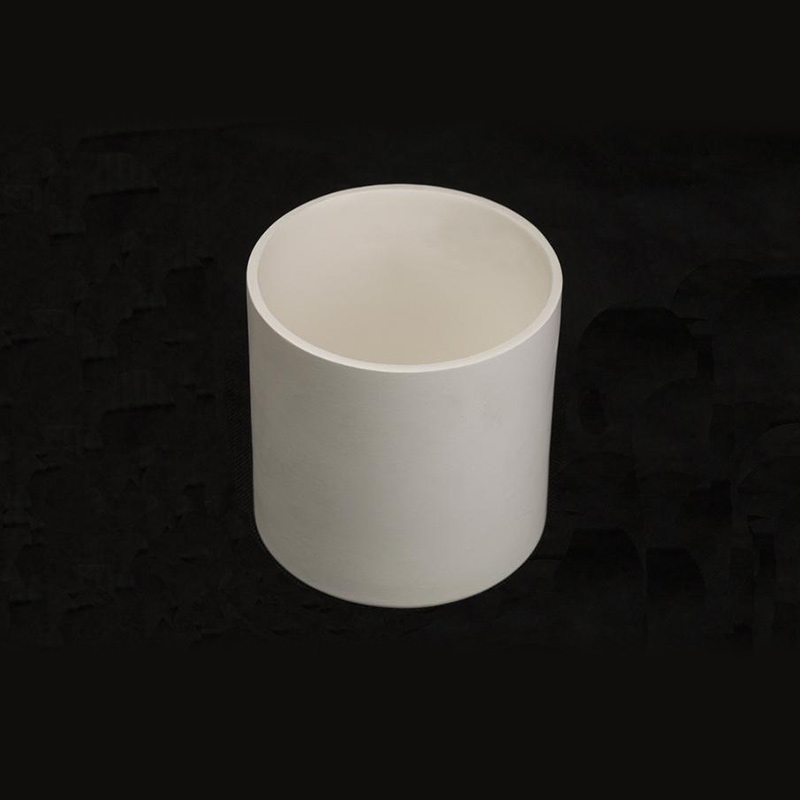

Y2O3 Crucible: 50 Dia x 50 H, mm ( 94 ml) for Ti AlloyY2O3 Crucible: 50 Dia x 50 H, mm ( 94 ml) for Ti Alloy

Y2O3 Crucible: 50 Dia x 50 H, mm ( 94 ml) for Ti Alloy

    High purity Y2O3 crucible is designed for melting Ti and Ti alloy, or any oxygen-sensitive melting process. The crucible is made by hot isostatic pressing (HIP) method.
    Warning!  Please do not use any rare earth oxides in Y2O3 crucible since the strong interaction will damage the yattria crucible.

    Dimension:                              Nominal: 50 ID × 50 H, ±3.0 mm, ranges from 53 OD × 47 ID × 53 H to 48 OD × 42 ID × 48 H, unit is mm

    Capacity:                                 94 ml

    Shape:                                     Cylindrical

    Purity:                                      Y2O3> 99.5%;

    Density:                                   4.8 g /cm3

    Max. working temperature:      2100 deg. C or 4000 F under vacuum
