Alumina Crucibles: High Purity 100 x 20 x 20 mm Mini Combustion Boat

Alumina Crucibles: High Purity 100 x 20 x 20 mm Mini Combustion Boat

    One high purity Alumina combustion boats for chemical calcining, metal casting, and ceramic sample preparation


One high purity Alumina combustion boats for chemical calcining, metal casting, and ceramic sample preparation

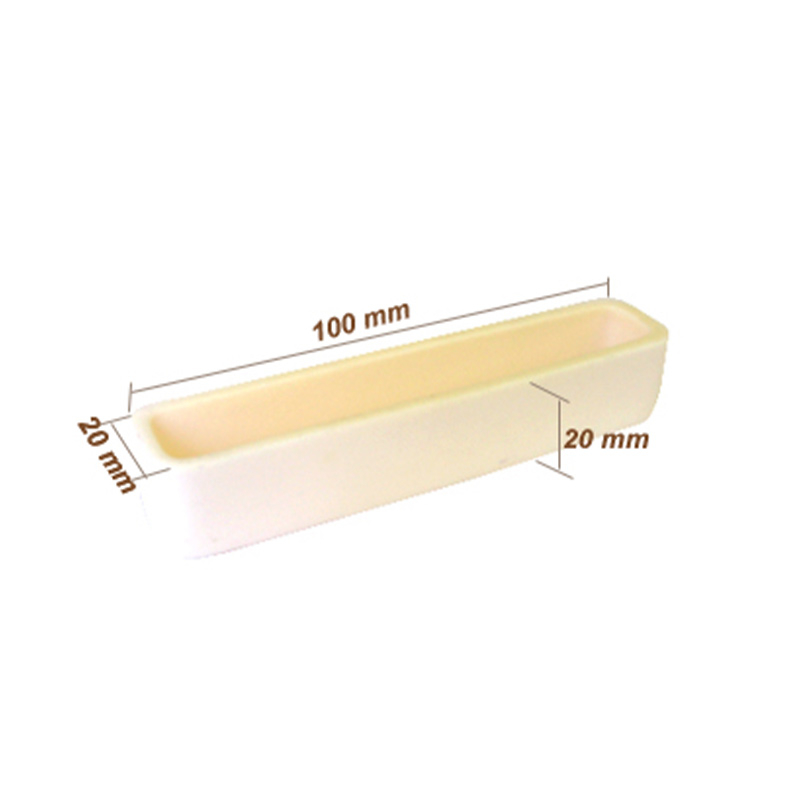

Dimension: Length: 100mm; Edge Width: 20 mm; Center Width: 22mm +/- 2mm ; Height: 20 mm

Shape: Rectangular shape with a slightly bulged center

Note: This Alumina Crucible does not fit in 1" OD tubes.

Purity: Al2O3 > 99.5%;  Fe2O3 < 0.01%

100% impervious

Density: > 3.8 g/cm3

Max. working temperature: 1750oC or 3180 °F

Alumina crucibles are made by casting method, which does not have precise dimensions.
