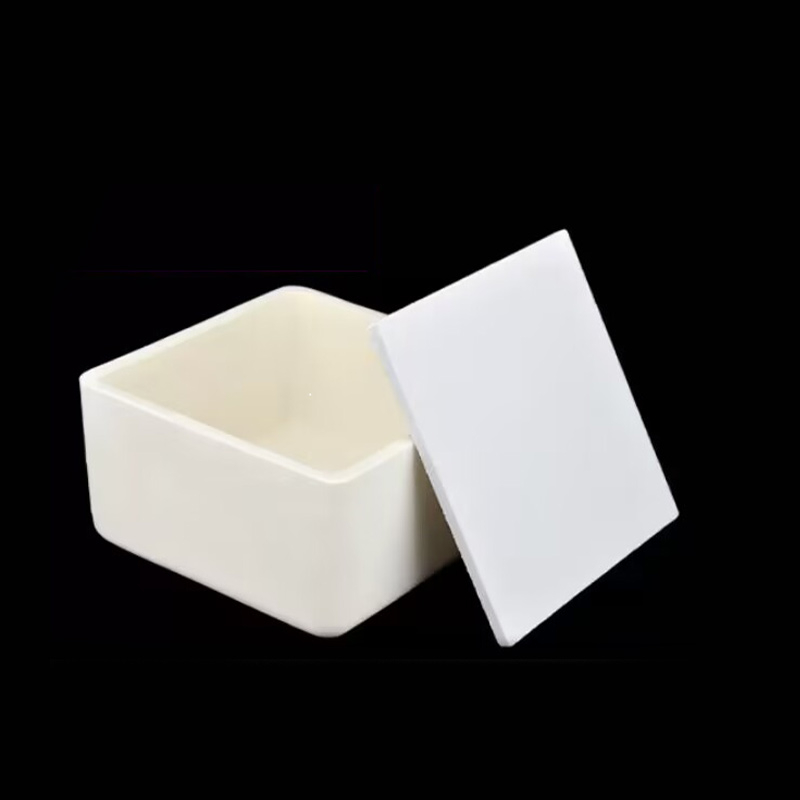

Alumina Boat Saggar with Cover 100x100x55 mm

One high-purity Alumina saggar ( boat)  for chemical calcining.

Outside Dimension:    100 x100 x 55  mm  ( +/-5 mm)

Inside dimensions:       92 x  92 x 51 mm

Flat cover:                    ~ 100x100x 4.0 mm

Capacity:                     ~ 400 ml

Purity:                          Al2O3 > 98.5 wt %;   SiO2<0.5 %   Fe2O3< 0.5%,   R2O≤0.5%

Density:                        > 3.0 g/cm3

Max. working temperature:1600 °C or 2912 °F

Net Weight:                  2 kg (4.4lbs)

Option:                         YSZ coating on the inside saggar is available at the extra cost  ( $50/each sagar )

Note:  this crucible is made via casting. Please don't expect precise dimension
