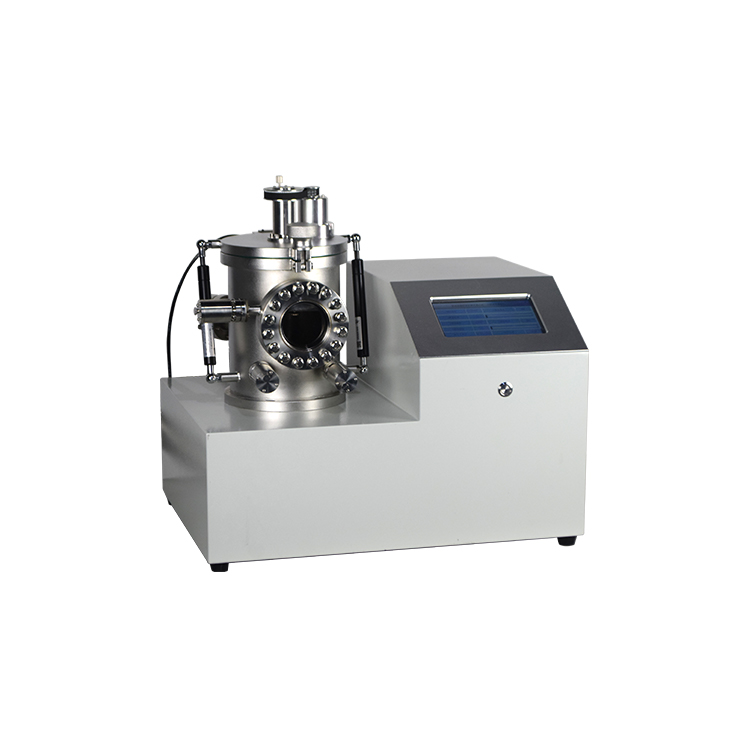

Thermal evaporation carbon coater


    7 inches TFT touch screen

    Automatic Control

    Four carbon fiber rope alternation,automatically on-off detection

    Continuous evaporation,pulse evaporation two working modes

    Optional rotating sample stage, TMP

    Hardware/software interlock


7 inches TFT touch screen

Automatic Control

Four carbon fiber rope alternation,automatically on-off detection

Continuous evaporation,pulse evaporation two working modes

Optional rotating sample stage, TMP

Hardware/software interlock

Thermal evaporation carbon coater



product name

Desktop thermal evaporation coater with   stainless steel cavity

Product number

CY-EVZ180-I-H-SS

sample stage

size

φ60mm

Rotating speed

1-20rpm Adjustable

Distance to evaporation source

60mm~100mm Adjustable

evaporation system

evaporation source

Tungsten wire basket

Thermocouple

S type thermocouple

maximum temperature

1700

vacuum chamber

Cavity size

φ170mm× 210mm

observation window

Quartz observation window φ80

Opening method

Top open type

Cavity material

Stainless steel

Vacuum system

Product number

CY-GZK103-A

Air extraction interface

KF40

Molecular pump

60l/s

Exhaust interface

KF16

Front pump

Rotary vane pump

Vacuum measurement

Composite vacuum gauge

ultimate vacuum

1.0E-5Pa

Pumping rate

Molecular pump: 60L/S Rotary vane pump:   1.1L/S Comprehensive pumping performance: the vacuum level can reach up to 20   minutes 1.0E-4Pa

other

Supply voltage

AC220V,50Hz

Total power

1.5kw

Overall size

600mm× 300mm× 470mm

Total Weight

40kg
